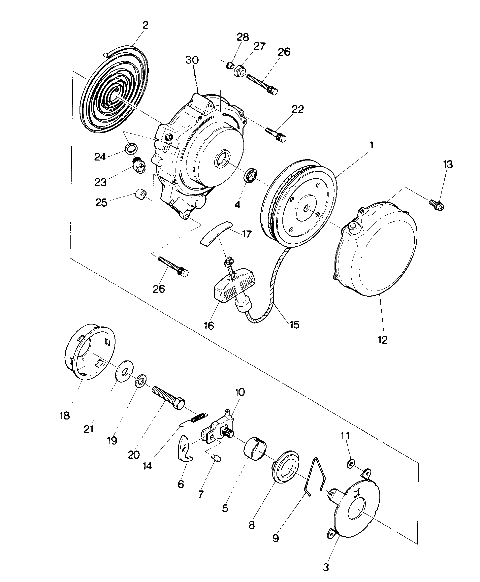

Recoil starter assembly Diagram Polaris TRAIL BOSS 4X4
- Model code
- W878127
- Year
- 1987
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3083814 Reel, compl, |
3083814 |
US $101.45 |
||
|
4
|
4
3083817 Grommet |
3083817 |
US $6.20 |
||
|
5
|
5
3083818 Hook, spring |
3083818 |
US $27.39 |
||
|
6
|
6
3083819 Ratchet |
3083819 |
US $19.30 |
||
|
7
|
7
3083820 Pin, ratchet |
3083820 |
US $9.15 |
||
|
8
|
8
3083821
Guide,ratchet
|
3083821 |
— | ||
|
9
|
9
3083822
Spring,friction
|
3083822 |
— | ||
| replacement | |||||
|
9
|
9
3083912 Spring,friction |
3083912 |
US $31.52 |
||
|
10
|
10
3083823
Guide, compl.
|
3083823 |
— | ||
| replacement | |||||
|
10
|
10
3083913
Guide, compl, *
|
3083913 |
— | ||
|
12
|
12
3083825
Case, starter, compl.
No Longer Available; |
3083825 |
— | ||
|
13
|
13
3083826 Bolt, flange |
3083826 |
US $7.68 |
||
|
14
|
14
3083827 Spring, return |
3083827 |
US $14.28 |
||
|
14
|
14
3083828
Asm., rope
|
3083828 |
— | ||
| replacement | |||||
|
14
|
14
2870621 Rope,100 ft,nyl,starter |
2870621 |
US $44.77 |
||
|
15
|
15
3083829
Starter rope
|
3083829 |
— | ||
| replacement | |||||
|
15
|
15
2870621 Rope,100 ft,nyl,starter |
2870621 |
US $44.77 |
||
|
16
|
16
3083659 Knob, starter |
3083659 |
US $43.72 |
||
|
17
|
17
3083660
Cap, knob
|
3083660 |
— | ||
|
18
|
18
3083830
Pulley,starting unit
|
3083830 |
— | ||
|
19
|
19
3080281 Washer, spring(10)10; |
3080281 |
US $0.79 |
||
|
20
|
20
3083831
Bolt
|
3083831 |
— | ||
|
21
|
21
3083832
Washer
|
3083832 |
— | ||
|
22
|
22
3082228 Bolt&washer asm, |
3082228 |
US $1.89 |
||
|
23
|
23
3083453 Plug |
3083453 |
US $1.66 |
||
| replacement | |||||
|
23
|
23
3086749
Plug
|
3086749 |
— | ||
|
24
|
24
3082956 Gasket (10) |
3082956 |
US $34.10 |
||
|
25
|
25
3083669 Bushing, starter |
3083669 |
US $20.28 |
||
|
26
|
26
3083217
Bolt&washer
|
3083217 |
— | ||
| replacement | |||||
|
26
|
26
3083729 Asm,,bolt&washer |
3083729 |
US $3.26 |
||
|
27
|
27
3083731 Mounting,rubber |
3083731 |
US $6.11 |
||
|
28
|
28
3083732
Collar
|
3083732 |
— | ||
