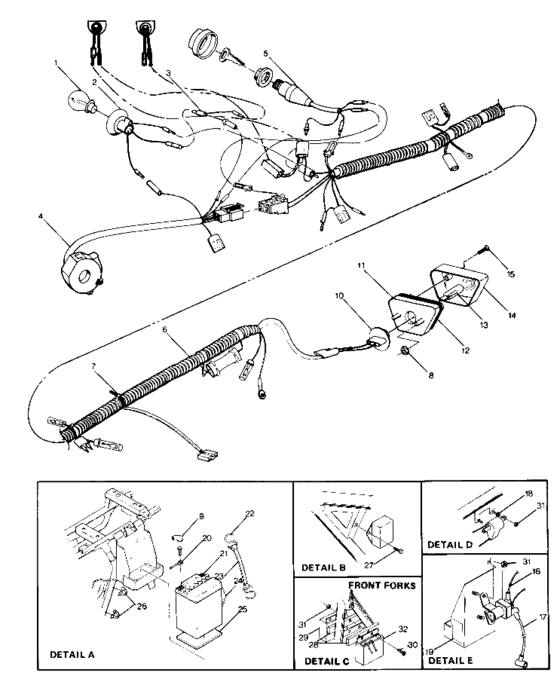

Wire harness Diagram Polaris TRAIL BOSS 4X4
- Model code
- W878127
- Year
- 1987
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4032007
Bulb, headlight
|
4032007 |
— | ||
|
2
|
2
4032011
Socket cord asm.
|
4032011 |
— | ||
|
3
|
3
2460248
Harness,hi-beam indic.
|
2460248 |
— | ||
|
4
|
4
4110063
Switch,hi-lo/start
|
4110063 |
— | ||
|
5
|
5
4110065
Switch,ignition,modified
|
4110065 |
— | ||
|
6
|
6
2460250
Harness,main wire
|
2460250 |
— | ||
|
7
|
7
7080272 Strap, blk |
7080272 |
US $3.64 |
||
|
8
|
8
7670054
Nut, push-on (10)
10; |
7670054 |
— | ||
|
9
|
9
5410346 Insul,cable sol, |
5410346 |
US $2.66 |
||
|
10
|
10
4032033
Socket,taillight asm.
|
4032033 |
— | ||
|
11
|
11
4032036
Backing,taillight
|
4032036 |
— | ||
|
12
|
12
4032031
Gasket,taillight
|
4032031 |
— | ||
|
13
|
13
4030040 Bulb,taillight(10)10; |
4030040 |
US $7.51 |
||
|
14
|
14
4032030
Lens, taillight
|
4032030 |
— | ||
| replacement | |||||
|
14
|
14
4032046 Lens,taillight |
4032046 |
US $18.32 |
||
|
15
|
15
4032029 Screw |
4032029 |
US $2.98 |
||
|
16
|
16
4010065
Cable,battery/solenoid
|
4010065 |
— | ||
|
17
|
17
4010064
Cable,solenoid/starter
|
4010064 |
— | ||
|
18
|
18
7571602 Washer10; |
7571602 |
US $2.45 |
||
|
19
|
19
7072379
Decal,battery
|
7072379 |
— | ||
| replacements | |||||
|
19
|
19
7072606CABLESINCLUDEBOOTS
New Genuine Part
|
7072606CABLESINCLUDEBOOTS |
— | ||
|
19
|
19
7072606
Decal, battery
|
7072606 |
— | ||
|
20
|
20
4010066
Cable,battery/engine
|
4010066 |
— | ||
|
21
|
21
4140006 Battery |
4140006 |
US $275.60 |
||
|
22
|
22
7010032 Hook-battery strap(10)10; |
7010032 |
US $26.30 |
||
|
23
|
23
5410424
Strap, battery holddown
|
5410424 |
— | ||
|
24
|
24
5521133
Fuel line3/16id-2ft.
|
5521133 |
— | ||
| replacement | |||||
|
24
|
24
8450037-600 Fuel line,3/16 id(600 cm,) |
8450037-600 |
US $79.35 |
||
|
25
|
25
5810290 Pad, battery |
5810290 |
US $6.11 |
||
|
26
|
26
7080303
Clamp, poly
|
7080303 |
— | ||
|
27
|
27
7512232 Bolt(10)10; |
7512232 |
US $26.30 |
||
|
28
|
28
5210650
Heat sink
|
5210650 |
— | ||
|
29
|
29
4060077
Regulator/rectifier
|
4060077 |
— | ||
|
30
|
30
7512007 Bolt10; |
7512007 |
US $2.45 |
||
|
31
|
31
7541925
Nut, nylok 10-24 y
10; |
7541925 |
— | ||
|
32
|
32
4060079
Regulator,speed limit,
|
4060079 |
— | ||
