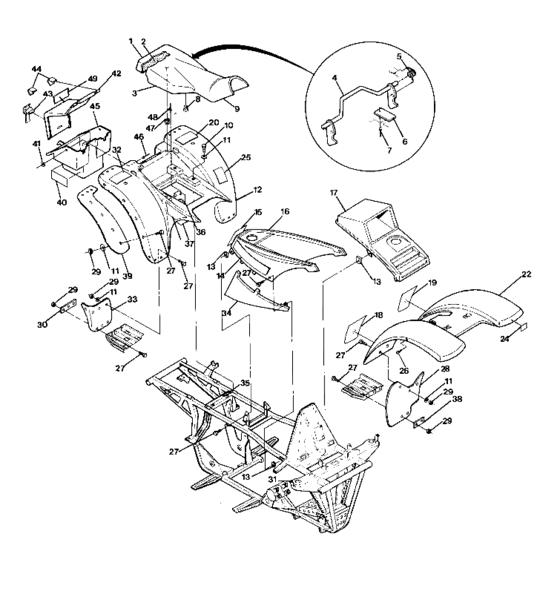

Body assembly (4x4-Updated 4/89) Diagram Polaris TRAIL BOSS 4X4
- Model code
- W898127
- Year
- 1989
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2681411
Seat asm.
|
2681411 |
— | ||
| replacement | |||||
|
1
|
1
2682357-132
Seat asm,stl.gray
|
2682357-132 |
— | ||
|
2
|
2
5431077
Seat bun
|
5431077 |
— | ||
| replacement | |||||
|
2
|
2
2682357-157
New Genuine Part
|
2682357-157 |
— | ||
|
3
|
3
2681412
Cover, seat
|
2681412 |
— | ||
| replacement | |||||
|
3
|
3
2681730-132
Cover,seat,stl.gry.
|
2681730-132 |
— | ||
|
4
|
4
1011558
Latch,seat
|
1011558 |
— | ||
|
5
|
5
7041158 Spring, latch |
7041158 |
US $18.45 |
||
|
6
|
6
5211033 Bracket,lever retainer |
5211033 |
US $23.61 |
||
|
7
|
7
7621403 Blind rivet(50)50; |
7621403 |
US $0.79 |
||
|
8
|
8
5410414 Bumper, rubber (10) |
5410414 |
US $1.89 |
||
|
9
|
9
5430974
Base, seat
|
5430974 |
— | ||
| replacement | |||||
|
9
|
9
2682357-157
New Genuine Part
|
2682357-157 |
— | ||
|
10
|
10
7512232 Bolt(10)10; |
7512232 |
US $26.30 |
||
|
11
|
11
7558301 Washer, flat(10) *10; |
7558301 |
US $0.79 |
||
|
12
|
12
5430991
Cab, rear no. 24
No Longer Available; Fender; |
5430991 |
— | ||
|
13
|
13
7670060 Nut, speed10; |
7670060 |
US $1.49 |
||
|
14
|
14
7072804
Decal,tank cover
No Longer Available; 4X4; |
7072804 |
— | ||
|
15
|
15
7072692
Decal,age warn.
CPSC; |
7072692 |
— | ||
| replacement | |||||
|
15
|
15
7078253
Decal, age warning
CPSC; |
7078253 |
— | ||
|
16
|
16
5430972
Cover, fuel tank
|
5430972 |
— | ||
| replacement | |||||
|
16
|
16
5431197-133
Cover,fuel tank,white
|
5431197-133 |
— | ||
|
17
|
17
5430973
Cover, oil tank
No Longer Available; |
5430973 |
— | ||
|
18
|
18
7072720
Decal,warning
CPSC; |
7072720 |
— | ||
| replacement | |||||
|
18
|
18
7073147
Decal,warning disc
CPSC; |
7073147 |
— | ||
|
19
|
19
7072693
Decal,warning
No Longer Available; CPSC; |
7072693 |
— | ||
|
20
|
20
7072786
Decal,warn,hvy.load
No Longer Available; CPSC; |
7072786 |
— | ||
|
22
|
22
5430990
Cab, front
No Longer Available; |
5430990 |
— | ||
|
24
|
24
7073025
Label, `u.s.a.`
No Longer Available; |
7073025 |
— | ||
|
25
|
25
7072810
Decal,tire press
No Longer Available; CPSC;4X4; |
7072810 |
— | ||
|
26
|
26
7670052 Clip, push-on10; |
7670052 |
US $2.45 |
||
|
27
|
27
7512282 Bolt, black(10)10; |
7512282 |
US $1.89 |
||
|
28
|
28
5850086
Mudflap,lh front
|
5850086 |
— | ||
|
28
|
28
5850087
Mudflap,rh front
|
5850087 |
— | ||
|
29
|
29
7542122 Nut-nylok(10)10; |
7542122 |
US $26.30 |
||
|
30
|
30
5211131
Brkt, mud flap
|
5211131 |
— | ||
| replacement | |||||
|
30
|
30
5211131-067 Brkt, lh mud flap |
5211131-067 |
US $30.42 |
||
|
31
|
31
5410012 Plug,rubber-hole,,5dia10; |
5410012 |
US $10.36 |
||
| replacement | |||||
|
31
|
31
5411426
Bumper,rubber-hole,.5dia
10; |
5411426 |
— | ||
|
32
|
32
7072788 Decal,warn,r.rackNo Longer Available; CPSC; |
7072788 |
US $1.89 |
||
|
33
|
33
5850076
Mudflap,lh,low,rear
|
5850076 |
— | ||
|
33
|
33
5850077
Mudflap,rh,low rear
|
5850077 |
— | ||
|
34
|
34
5430970
Cover,side panel,lh
No Longer Available; |
5430970 |
— | ||
|
34
|
34
5430971
Cover,side panel,rh
No Longer Available; |
5430971 |
— | ||
|
35
|
35
7072791
Decal,filter element
No Longer Available; |
7072791 |
— | ||
|
36
|
36
5220880 Brkt,rear holddown |
5220880 |
US $7.09 |
||
|
37
|
37
5810416
Tape,foil,r,cab
Inside; |
5810416 |
— | ||
|
38
|
38
5211020
Bracket,mud flap
|
5211020 |
— | ||
| replacement | |||||
|
38
|
38
5211020-067
Brkt,rh mud flap
|
5211020-067 |
— | ||
|
39
|
39
5850060
Flap,mud,lh rear
|
5850060 |
— | ||
|
39
|
39
5850061
Flap,mud,rh rear
|
5850061 |
— | ||
|
40
|
40
5810310
Tape, foil
|
5810310 |
— | ||
|
41
|
41
7558212 Washer,13/64x1/2x18ga,fl-y (10) |
7558212 |
US $0.79 |
||
|
42
|
42
5430899
Lid, tool box
|
5430899 |
— | ||
|
43
|
43
5410425 Strap,tool compartment |
5410425 |
US $9.15 |
||
|
44
|
44
7670050 Clip, lid hinge10; |
7670050 |
US $1.89 |
||
|
45
|
45
5430882
Box,tool comp,
|
5430882 |
— | ||
|
46
|
46
7621462 Rivet(50)50; |
7621462 |
US $1.89 |
||
|
47
|
47
5410413
Grommet
|
5410413 |
— | ||
|
48
|
48
7621432 Rivet,3/16x,402(50)50; |
7621432 |
US $0.79 |
||
|
49
|
49
7072805
Decal,pass.wrn.
No Longer Available; CPSC; |
7072805 |
— | ||
