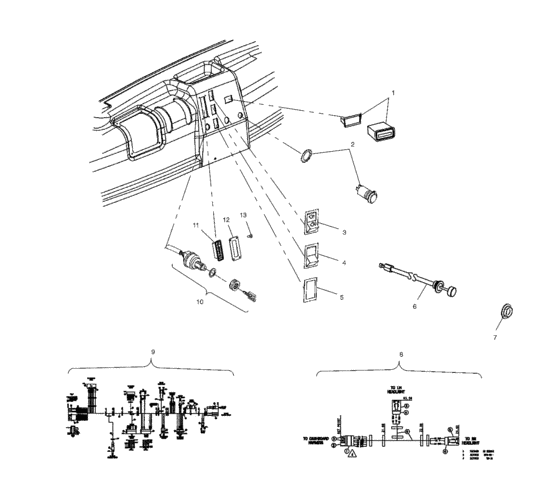

Dash instruments and controls (C10RB42AA) Diagram Polaris UTV 2X4
- Model code
- C10RB42AA
- Year
- SERIES 10
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4010460 Hourmeter-12v,non-pol,rectnglr |
4010460 |
US $101.45 |
||
|
2
|
2
4010283 Receptacle-pod mnt,12 volt |
4010283 |
US $18.32 |
||
|
3
|
3
4010525 Switch-headlight |
4010525 |
US $64.02 |
||
|
4
|
4
5434192 Plug-hole,carling rocker swtch |
5434192 |
US $9.85 |
||
|
5
|
5
4010634 Switch-box lift,dpdt momentary |
4010634 |
US $54.18 |
||
|
6
|
6
7080937 Cable-choke,ranger |
7080937 |
US $86.68 |
||
|
7
|
7
7080922 Nut,choke,m24x1,5 thd,m29 hex |
7080922 |
US $4.73 |
||
|
8
|
8
2460978 Harness-headlite/hood,ranger |
2460978 |
US $106.37 |
||
|
9
|
9
2461019 Harness-dash,ranger,comm |
2461019 |
US $357.46 |
||
|
9
|
9
4010781 Asm-diode,100858,6 amp,silicon |
4010781 |
US $19.30 |
||
|
10
|
10
4010390
Switch, ignition
|
4010390 |
— | ||
| replacement | |||||
|
10
|
10
4012164 Switch-ignition,keystart,mt sl |
4012164 |
US $125.49 |
||
|
11
|
11
4010527 Panel-indicator,ranger 2 |
4010527 |
US $86.68 |
||
|
12
|
12
5245469-067 Plate-panel indicator,blk |
5245469-067 |
US $13.42 |
||
|
13
|
13
7512026
Screw
|
7512026 |
— | ||
