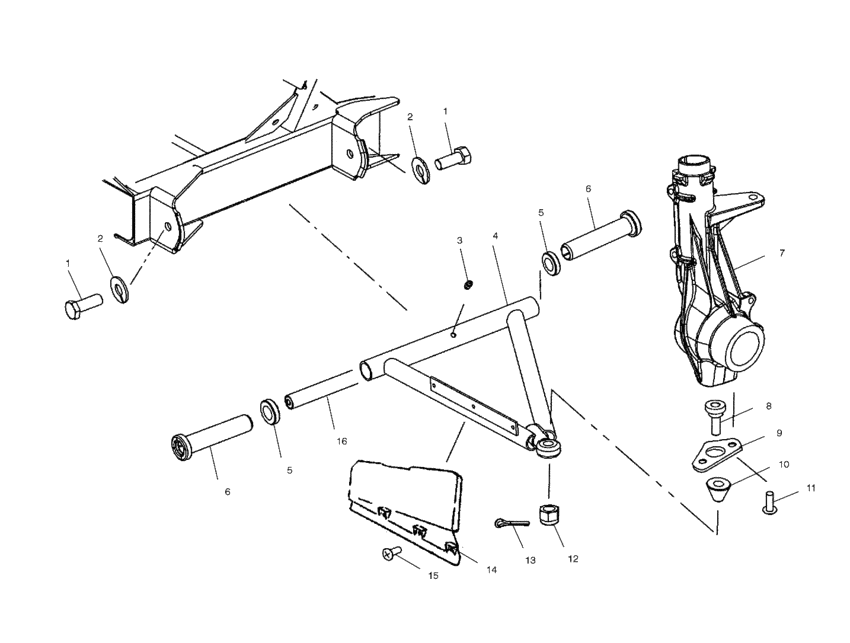

A-arm/strut mounting (C10RD50AA) Diagram Polaris UTV 4X4
- Model code
- C10RD50AA
- Year
- SERIES 10
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7512589 Bolt(10) |
7512589 |
US $1.89 |
||
|
2
|
2
7553101 Washer,spring lock |
7553101 |
US $6.56 |
||
|
3
|
3
7080433 Fitting,lubrication,threaded(10 |
7080433 |
US $5.25 |
||
|
4
|
4
1541456-067 A-frame,lh,blk |
1541456-067 |
US $165.43 |
||
|
4
|
4
1541457-067
A-frame,rh,blk
|
1541457-067 |
— | ||
|
5
|
5
5132532 Bushing-,970 x 1,38 x ,250 |
5132532 |
US $21.49 |
||
|
6
|
6
5434547 Bushing-a-arm,,760x,952,blk |
5434547 |
US $8.17 |
||
|
8
|
8
7080927
Joint, ball
|
7080927 |
— | ||
| replacement | |||||
|
8
|
8
7061158 Ball-joint,greaseless,strut |
7061158 |
US $95.38 |
||
|
9
|
9
5211121 Brkt, ball joint |
5211121 |
US $34.46 |
||
|
10
|
10
5410548
Boot, rubber
|
5410548 |
— | ||
| replacement | |||||
|
10
|
10
5412658 Boot-balljoint,greaseless,strt |
5412658 |
US $6.56 |
||
|
11
|
11
7512284 Bolt, socket(10) |
7512284 |
US $1.96 |
||
|
12
|
12
7542438 Nut, castle(10) |
7542438 |
US $2.63 |
||
|
13
|
13
7661203 Pin,cotter(10) |
7661203 |
US $26.30 |
||
|
14
|
14
5433927-070
Shield, cv joint, lh
|
5433927-070 |
— | ||
|
14
|
14
5433928-070
Shield, cv joint, rh
|
5433928-070 |
— | ||
|
15
|
15
7512084 Screw(10) |
7512084 |
US $19.60 |
||
|
16
|
16
5132533
Shaft, a-arm
|
5132533 |
— | ||
