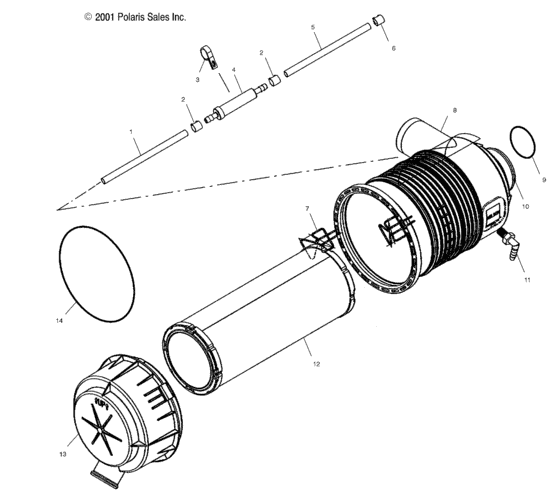

Air box (C10RD50AA) Diagram Polaris UTV 4X4
- Model code
- C10RD50AA
- Year
- SERIES 10
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8450073-100
Line
|
8450073-100 |
— | ||
|
2
|
2
7080699
Clamp,hose
|
7080699 |
— | ||
|
3
|
3
7080913 Clamp-p,stl,1" bdl dia-b |
7080913 |
US $3.94 |
||
|
4
|
4
2530029 Filter,breather,in line |
2530029 |
US $6.91 |
||
|
5
|
5
5411921 Hose-breather,nitrile |
5411921 |
US $251.98 |
||
|
6
|
6
7080694 Clamp,hose,spring |
7080694 |
US $3.94 |
||
|
7
|
7
7670132 Clip-cover,airbox |
7670132 |
US $16.24 |
||
|
8
|
8
5434060
Box, air
|
5434060 |
— | ||
|
9
|
9
5412015
O-ring
|
5412015 |
— | ||
|
10
|
10
5434058
Tube, outlet
|
5434058 |
— | ||
|
11
|
11
7052164 Fitting |
7052164 |
US $5.65 |
||
|
12
|
12
7080981 Filter-air intake |
7080981 |
US $44.33 |
||
|
13
|
13
5434059
Cover, air box
|
5434059 |
— | ||
|
14
|
14
5812196
Seal-air box cover
|
5812196 |
— |
