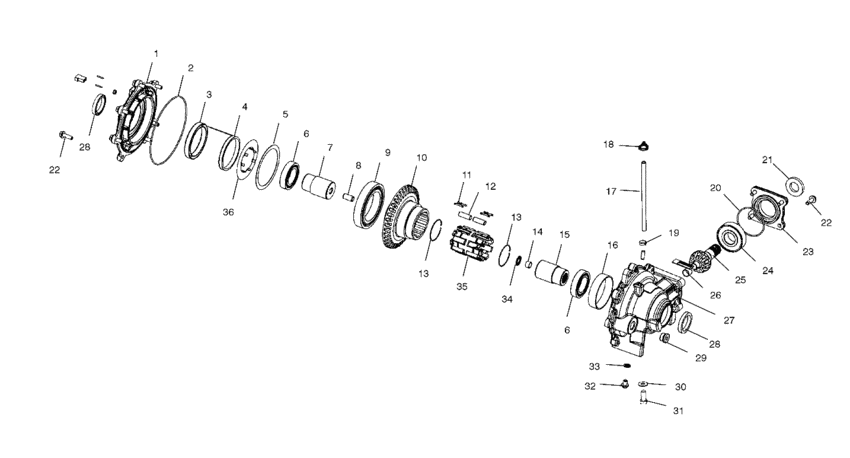

Front housing mounting (C10RD50AA) Diagram Polaris UTV 4X4
- Model code
- C10RD50AA
- Year
- SERIES 10
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3233920
Cover, output
|
3233920 |
— | ||
|
2
|
2
3233921
O-ring
|
3233921 |
— | ||
|
3
|
3
3233922
Insert
|
3233922 |
— | ||
|
4
|
4
3233923
Coil
|
3233923 |
— | ||
|
5
|
5
3233925
Kit-shim set
Incl. Shims; |
3233925 |
— | ||
|
6
|
6
3233926 Bearing-roller ball |
3233926 |
US $64.02 |
||
|
7
|
7
3233927
Hub, race/output, male
|
3233927 |
— | ||
|
8
|
8
3233928 Pin-dowel,1/2"dia x 1" |
3233928 |
US $16.24 |
||
|
9
|
9
3233932 Bearing-roller ball |
3233932 |
US $206.34 |
||
|
10
|
10
3233933 Clutch hsg/ ring gear |
3233933 |
US $802.60 |
||
|
11
|
11
3233935
Spring
|
3233935 |
— | ||
|
12
|
12
3233936
Roll
|
3233936 |
— | ||
|
13
|
13
3233934 Ring-retaining,wire form |
3233934 |
US $35.88 |
||
|
14
|
14
3233930
Bushing
|
3233930 |
— | ||
|
15
|
15
3233931
Hub, race/output, female
|
3233931 |
— | ||
|
16
|
16
3233938
Bushing
|
3233938 |
— | ||
|
17
|
17
8450003-1525 Line,fuel,1/4 id(1525 cm,) |
8450003-1525 |
US $85.45 |
||
|
18
|
18
7670102 Clip |
7670102 |
US $5.25 |
||
|
19
|
19
7080307 Clamp,hose(10) |
7080307 |
US $0.79 |
||
|
20
|
20
3233946
O-ring
|
3233946 |
— | ||
|
21
|
21
3233948
Seal
|
3233948 |
— | ||
|
22
|
22
3233918
Screw
|
3233918 |
— | ||
|
23
|
23
3233947
Cover-input,mach
|
3233947 |
— | ||
|
24
|
24
3233945
Bearing-roller ball
|
3233945 |
— | ||
|
25
|
25
3233944
Shaft-pinion,11t,6,75dp,mach
|
3233944 |
— | ||
|
26
|
26
3233943
Bushing
|
3233943 |
— | ||
|
27
|
27
3233939
Gearcase, lh
|
3233939 |
— | ||
|
28
|
28
3233919
Seal, oil
|
3233919 |
— | ||
|
29
|
29
3233942 Plug-oil fill 3/4-16 hollow |
3233942 |
US $24.43 |
||
|
30
|
30
7552603 Washer,spring lock(10) |
7552603 |
US $26.30 |
||
|
31
|
31
7512492 Screw(10) |
7512492 |
US $39.40 |
||
|
32
|
32
3233941
Plug, oil drain
|
3233941 |
— | ||
|
33
|
33
3233940
Washer
|
3233940 |
— | ||
|
34
|
34
3233929 Bearing-needle roller thrust |
3233929 |
US $16.75 |
||
|
35
|
35
3233937
Roll cage, aluminum
|
3233937 |
— | ||
|
36
|
36
3233924
Plate armature
|
3233924 |
— |
