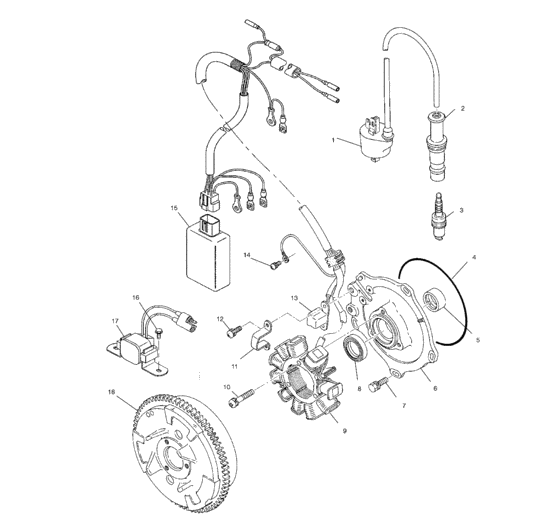

Magneto (C10RD50AA) Diagram Polaris UTV 4X4
- Model code
- C10RD50AA
- Year
- SERIES 10
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3085227
Coil,ignition *
|
3085227 |
— | ||
|
1
|
1
3085228
Coil, ignition
|
3085228 |
— | ||
| replacement | |||||
|
1
|
1
3085227
Coil,ignition *
|
3085227 |
— | ||
|
2
|
2
3084980 Cap, sparkplug * |
3084980 |
US $67.25 |
||
|
3
|
3
3070175 Sparkplug, bkr5e(4) |
3070175 |
US $23.60 |
||
|
4
|
4
3084978 O-ring |
3084978 |
US $24.43 |
||
|
5
|
5
3084972 Bearing, metal |
3084972 |
US $23.64 |
||
|
6
|
6
3087167
Asm., plate
Incl. 5,6,8-13,14; |
3087167 |
— | ||
|
6
|
6
3086981
Plate
|
3086981 |
— | ||
|
7
|
7
3081657 Bolt&washer asm, |
3081657 |
US $2.98 |
||
|
8
|
8
3084973 Seal, oil |
3084973 |
US $35.12 |
||
|
9
|
9
3087168
Stator
Incl. 13; |
3087168 |
— | ||
|
10
|
10
3086985
Asm,, screw and washer
|
3086985 |
— | ||
|
11
|
11
3085554
Band, pulse
|
3085554 |
— | ||
|
12
|
12
3084976 Screw&washer asm, |
3084976 |
US $2.98 |
||
|
13
|
13
3085360 Coil,pulser * |
3085360 |
US $118.06 |
||
|
14
|
14
3081256 Screw&washer asm(10) |
3081256 |
US $1.49 |
||
|
15
|
15
3087201
Cdi-system
|
3087201 |
— | ||
|
16
|
16
3085359 Bolt,flange(10) |
3085359 |
US $0.79 |
||
|
17
|
17
3087198
Switch, magnetic
|
3087198 |
— | ||
|
18
|
18
3087166 Flywheel-w/ring gear |
3087166 |
US $448.09 |
||
