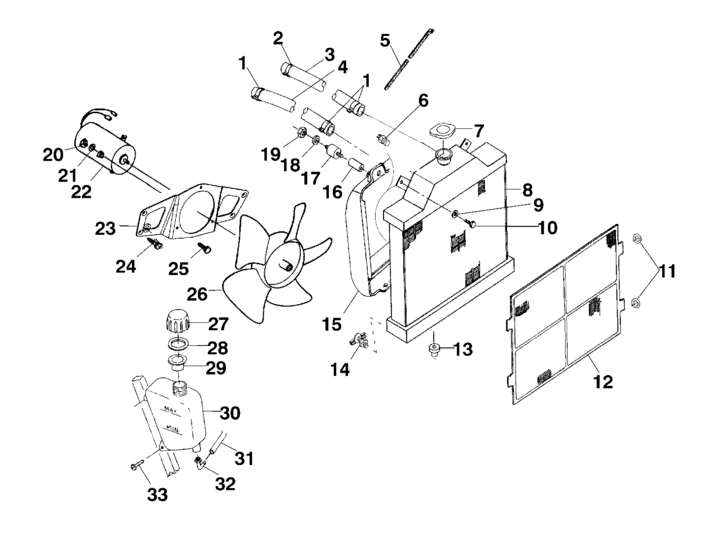

Cooling system (A99CH50EB) Diagram Polaris WORKER 500
- Model code
- A99CH50EB
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7080614 Clamp,hose10; |
7080614 |
US $6.69 |
||
|
2
|
2
7080696 Clamp,hose,1,25,worm drive |
7080696 |
US $3.94 |
||
|
3
|
3
5411410
Hose,3/4x22"
|
5411410 |
— | ||
|
4
|
4
5411072
Hose-lower engine
|
5411072 |
— | ||
|
5
|
5
7080492 Cable tie,11 inch10; |
7080492 |
US $3.64 |
||
|
6
|
6
4010202 Switch-thermal,4 stroke,500cc |
4010202 |
US $59.10 |
||
|
7
|
7
2511189
Cap, radiator
|
2511189 |
— | ||
| replacement | |||||
|
7
|
7
2511270 Cap, pressure,(13 lb) *** |
2511270 |
US $22.45 |
||
|
8
|
8
1240015
Radiator,"u"flow
|
1240015 |
— | ||
|
9
|
9
7552605 Washer10; |
7552605 |
US $3.92 |
||
|
10
|
10
7512113 Bolt10; |
7512113 |
US $2.45 |
||
|
11
|
11
5410607 O ring (10) |
5410607 |
US $1.89 |
||
|
12
|
12
5431760
Cover,radiator,w/mesh
|
5431760 |
— | ||
|
13
|
13
5410584
Bushing-mount,lower radiator
|
5410584 |
— | ||
|
14
|
14
7052181
Valve,drain cock
|
7052181 |
— | ||
|
15
|
15
5432593
Shroud,fan,(atv)
ATV; |
5432593 |
— | ||
|
16
|
16
5020572 Spacer, mount |
5020572 |
US $8.17 |
||
|
17
|
17
3110032 Mount, rubber (10) |
3110032 |
US $5.11 |
||
|
18
|
18
7558301 Washer, flat(10) *10; |
7558301 |
US $0.79 |
||
|
19
|
19
7542122 Nut-nylok(10)10; |
7542122 |
US $26.30 |
||
|
20
|
20
7547004 Nut (10) |
7547004 |
US $2.45 |
||
|
21
|
21
7558201 Washer, flat10; |
7558201 |
US $2.92 |
||
|
22
|
22
4170013 Motor,fan,liq,d-shaft,conn |
4170013 |
US $293.46 |
||
|
23
|
23
5241355-067
Brkt,cool,fan,blk
|
5241355-067 |
— | ||
|
24
|
24
7512232 Bolt(10)10; |
7512232 |
US $26.30 |
||
|
25
|
25
7517475
Screw
|
7517475 |
— | ||
|
26
|
26
5242550
Blade,fan,nylon,8"
|
5242550 |
— | ||
|
27
|
27
5430743 Cap, overflow |
5430743 |
US $3.26 |
||
|
28
|
28
5810279 Gasket (10) |
5810279 |
US $2.66 |
||
|
29
|
29
5431895
Plug,cap
|
5431895 |
— | ||
| replacement | |||||
|
29
|
29
5433774 Cap,plug9x(grn),flex temp(10) |
5433774 |
US $3.26 |
||
|
30
|
30
5431673
Tank, surge
|
5431673 |
— | ||
|
31
|
31
8450003-1525 Line,fuel,1/4 id(1525 cm,)1525 CM.; |
8450003-1525 |
US $85.45 |
||
|
32
|
32
7052065 Fitting,90 degree (10) |
7052065 |
US $9.85 |
||
|
33
|
33
7512084 Screw(10)10; |
7512084 |
US $19.60 |
||
