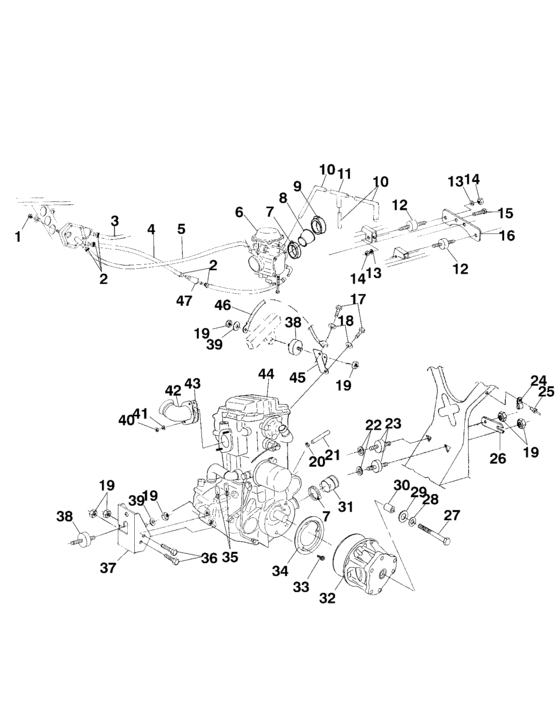

Engine mounting (A99CH50EB) Diagram Polaris WORKER 500
- Model code
- A99CH50EB
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7546601
Nut, nylok(10)
10; |
7546601 |
— | ||
|
2
|
2
7080003 Clamp,hose(10)10; |
7080003 |
US $0.79 |
||
|
3
|
3
5811490
Hose,(,25 idx1,75"lg,)
.25 IDX1.75"LG.; |
5811490 |
— | ||
|
4
|
4
8450040-600 Line fuel,1/4 id(600 cm,)600 CM.; |
8450040-600 |
US $65.99 |
||
|
5
|
5
8450083-46
Desc not_available
|
8450083-46 |
— | ||
|
7
|
7
7080413 Clamp,band,narrow (10) |
7080413 |
US $3.75 |
||
|
8
|
8
5410995
Boot,carb
|
5410995 |
— | ||
|
9
|
9
7080511 Clamp, narrow band10; |
7080511 |
US $1.75 |
||
|
10
|
10
8450003-1525 Line,fuel,1/4 id(1525 cm,)1525 CM.; |
8450003-1525 |
US $85.45 |
||
|
11
|
11
7052075 Fitting, tee |
7052075 |
US $7.68 |
||
|
12
|
12
3110032 Mount, rubber (10) |
3110032 |
US $5.11 |
||
|
13
|
13
7552605 Washer10; |
7552605 |
US $3.92 |
||
|
14
|
14
7542105 Nut hex10; |
7542105 |
US $3.26 |
||
|
16
|
16
5211626-067
Strap,carb,mt,blk,
|
5211626-067 |
— | ||
|
17
|
17
7512315 Bolt10; |
7512315 |
US $2.98 |
||
|
18
|
18
7552901 Washer,spring lock(10)10; |
7552901 |
US $39.40 |
||
|
19
|
19
7542403 Nut lock(10)10; |
7542403 |
US $3.75 |
||
|
20
|
20
7080694 Clamp,hose,spring |
7080694 |
US $3.94 |
||
|
22
|
22
7555815 Washer, flat10; |
7555815 |
US $3.26 |
||
|
23
|
23
3110046
Mount, rubber, front
|
3110046 |
— | ||
|
24
|
24
7080539 Clamp,nylon,cable10; |
7080539 |
US $2.45 |
||
|
25
|
25
7621462 Rivet(50)50; |
7621462 |
US $1.89 |
||
|
26
|
26
5224658-067 Strap,frame support,blk |
5224658-067 |
US $107.91 |
||
|
27
|
27
7512566 Bolt10; |
7512566 |
US $12.79 |
||
|
28
|
28
7575202 Washer lock10; |
7575202 |
US $7.88 |
||
|
29
|
29
5210748 Washer(10)10; |
5210748 |
US $65.60 |
||
|
30
|
30
5430261 Bushing |
5430261 |
US $9.85 |
||
|
31
|
31
5410421 Boot,clutch intake |
5410421 |
US $9.85 |
||
|
35
|
35
7080474 Clamp, hose (10)10; |
7080474 |
US $5.64 |
||
|
36
|
36
7515417 Screw10; |
7515417 |
US $3.94 |
||
|
37
|
37
5241150-067
Mount, engine, front
|
5241150-067 |
— | ||
|
38
|
38
3110044
Mount, rubber, top
|
3110044 |
— | ||
| replacement | |||||
|
38
|
38
3024012 ISOLATOR-3/8-24M/M,60DURO |
3024012 |
US $39.38 |
||
|
39
|
39
7555801 Washer10; |
7555801 |
US $2.45 |
||
|
42
|
42
1260771-029
Manifold,blk
|
1260771-029 |
— | ||
|
44
|
44
3085556
Engine, short block
S.B.;EH50PLE09;See Footnote; |
3085556 |
— | ||
|
45
|
45
5241453-067
Mount,eng,top,blk
|
5241453-067 |
— | ||
|
46
|
46
4010132 Cable,gnd-engine |
4010132 |
US $30.54 |
||
|
47
|
47
2530009 Filter,small,in-line,(10)10; |
2530009 |
US $6.56 |
||
