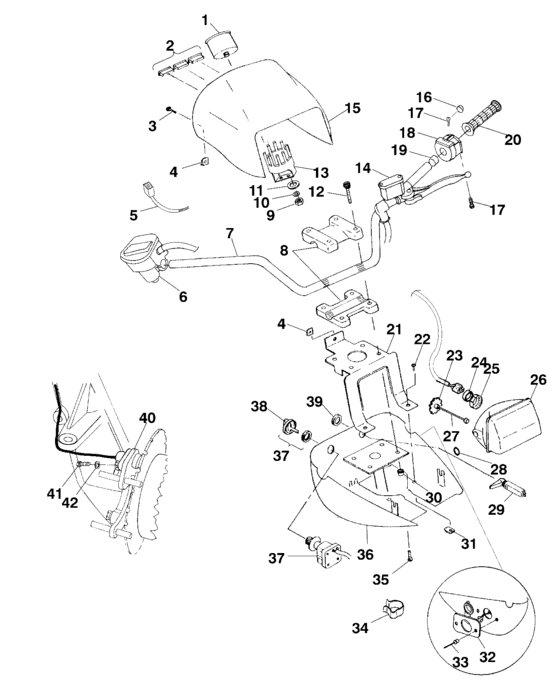

Handlebar and headlight pod (A99CH50EB) Diagram Polaris WORKER 500
- Model code
- A99CH50EB
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3280290
Speedo asm,3.38",6-pulse
Sportsman; |
3280290 |
— | ||
| replacement | |||||
|
1
|
1
3280363 Speedometer,3,38",6-pulseSportsman; |
3280363 |
US $537.67 |
||
|
1
|
1
3280312
Speedo,asm,kilo,3.38" 6-pulse
Worker; |
3280312 |
— | ||
| replacement | |||||
|
1
|
1
3280358
Speedometer, kph
Worker; |
3280358 |
— | ||
|
2
|
2
4040053 Indic"hot temperature" |
4040053 |
US $34.46 |
||
|
2
|
2
4040054 Indic"neut,/rev," |
4040054 |
US $25.43 |
||
|
2
|
2
5430967 Plug,indic,hole |
5430967 |
US $3.64 |
||
|
3
|
3
7511881 Screw(10)10; |
7511881 |
US $26.30 |
||
|
4
|
4
7670086 Nut (10) |
7670086 |
US $1.77 |
||
|
5
|
5
2460668 Harness,ctr,pnl, |
2460668 |
US $14.18 |
||
|
7
|
7
5242987-067 Tube-handlebar,blk |
5242987-067 |
US $85.77 |
||
|
8
|
8
2200774
Kit,h`bar block
Incl. Blocks and 8,12,30; |
2200774 |
— | ||
|
8
|
8
5630616-067
Block,h'bar retainer,blk
|
5630616-067 |
— | ||
|
9
|
9
7541933 Nut10; |
7541933 |
US $2.45 |
||
|
10
|
10
7555868 Washer, lock,(s,s,)S.S.;10; |
7555868 |
US $2.45 |
||
|
11
|
11
7558212 Washer,13/64x1/2x18ga,fl-y (10) |
7558212 |
US $0.79 |
||
|
12
|
12
7515189 Screw(10) *10; |
7515189 |
US $1.89 |
||
|
13
|
13
3280291
Clamp,back,elec,speedo,3,38"
|
3280291 |
— | ||
|
15
|
15
5433042-136
Pod-headlight,upper,red **
A99CH50(AB;EB; |
5433042-136 |
— | ||
|
15
|
15
5433042-191
Pod-headlight,upper,olive gr
A99CH50(AA;EA; |
5433042-191 |
— | ||
|
16
|
16
5432952 Plug,hole10; |
5432952 |
US $3.15 |
||
|
17
|
17
7517625 Screw,set |
7517625 |
US $2.98 |
||
|
18
|
18
4110243
Switch-handlebar,hi/lo/off,6p
|
4110243 |
— | ||
| replacement | |||||
|
18
|
18
4010262 Switch-handlebar,h/l/o,rev/or |
4010262 |
US $177.26 |
||
|
19
|
19
5432926 Spacer,switch,lh |
5432926 |
US $3.26 |
||
|
20
|
20
5431030
Grip, handlebar
|
5431030 |
— | ||
|
21
|
21
5240586-067
Brkt,pod mtg,blk.
|
5240586-067 |
— | ||
|
22
|
22
7517317 Screw(10)10; |
7517317 |
US $0.79 |
||
|
23
|
23
4032079 Knob,adjusting |
4032079 |
US $18.32 |
||
|
24
|
24
5411120 Boot,headlight |
5411120 |
US $20.69 |
||
|
25
|
25
4032077 Collar,lock |
4032077 |
US $20.69 |
||
|
26
|
26
2870448 Bulb,quartz,h/l h4,60/55w |
2870448 |
US $21.35 |
||
|
26
|
26
4032075 Asm,headlight w/adjust rod-knob |
4032075 |
US $107.52 |
||
|
27
|
27
4032078
Rod,adjusting
|
4032078 |
— | ||
|
28
|
28
5410163 O ring (10) |
5410163 |
US $2.28 |
||
|
29
|
29
7080726 Cable,choke,w/adjuster |
7080726 |
US $91.60 |
||
|
29
|
29
2200188 Kit-choke control |
2200188 |
US $24.61 |
||
|
30
|
30
7542122 Nut-nylok(10)10; |
7542122 |
US $26.30 |
||
|
31
|
31
7670089 Nut,u-type10; |
7670089 |
US $3.75 |
||
|
32
|
32
2410025
Powerplug asm,12v
|
2410025 |
— | ||
|
33
|
33
7621334 Rivet(50)50; |
7621334 |
US $187.50 |
||
|
34
|
34
7080631 Clip,cable retain,(10) *10; |
7080631 |
US $9.38 |
||
|
35
|
35
7522021 Screw(10)10; |
7522021 |
US $0.79 |
||
|
36
|
36
5432314-070
Pod,h/l.low.blk
|
5432314-070 |
— | ||
| replacement | |||||
|
36
|
36
5433366-070 Pod,headlight,lower,blk |
5433366-070 |
US $91.60 |
||
|
37
|
37
4110209 Switch,ign,w/ conIncl. Key; NOTE: Ignition key may be ordered by using the four digit number on the key.; |
4110209 |
US $93.56 |
||
|
37
|
37
5433733 Nut,ignition switch |
5433733 |
US $14.09 |
||
|
38
|
38
5431964
Cover, key
|
5431964 |
— | ||
| replacement | |||||
|
38
|
38
5433534 Key cover-keyswitch |
5433534 |
US $19.69 |
||
|
39
|
39
7080229 Nut |
7080229 |
US $16.24 |
||
|
40
|
40
4040081
Sensor,hall effect
|
4040081 |
— | ||
| replacement | |||||
|
40
|
40
2201625 Kit,speedo sensor lg |
2201625 |
US $219.78 |
||
|
41
|
41
7515181 Screw10; |
7515181 |
US $2.98 |
||
|
42
|
42
7558203 Washer10; |
7558203 |
US $1.77 |
||
