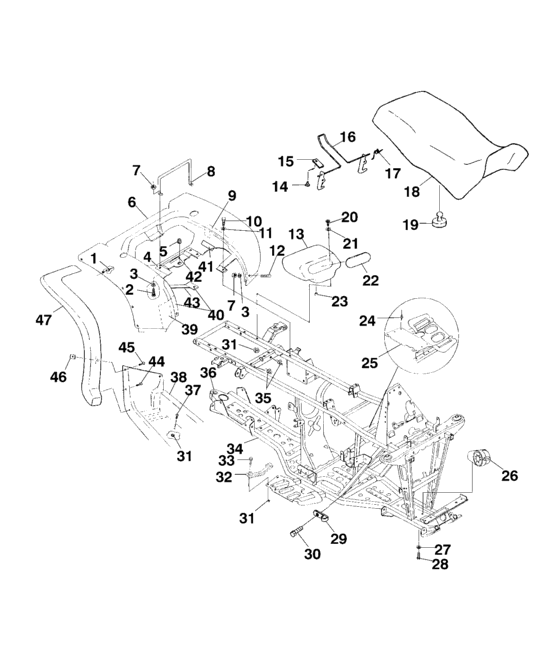

Rear cab and seat (A99CH50EB) Diagram Polaris WORKER 500
- Model code
- A99CH50EB
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7661645 Rivet(50) *50; |
7661645 |
US $1.89 |
||
|
2
|
2
7511930 Screw(10)10; |
7511930 |
US $0.79 |
||
|
3
|
3
7555792 Washer10; |
7555792 |
US $2.45 |
||
|
4
|
4
5811107 Foil,rear |
5811107 |
US $5.11 |
||
|
5
|
5
5411042
Grommet
|
5411042 |
— | ||
|
6
|
6
5432117-136
Cab, rear, porsche red
A99CH50(AB;EB; |
5432117-136 |
— | ||
|
6
|
6
5432117-191
Cab,rear,gen 4,olv.grn.
A99CH50(AA;EA; |
5432117-191 |
— | ||
|
7
|
7
7541925
Nut, nylok 10-24 y
10; |
7541925 |
— | ||
|
8
|
8
5224592 Retainer,seat latch |
5224592 |
US $47.25 |
||
|
9
|
9
5811308 Foil,tape,3 x 12 |
5811308 |
US $12.20 |
||
|
10
|
10
7512242 Screw(10)10; |
7512242 |
US $0.79 |
||
|
11
|
11
7555859 Washer, flat(10)10; |
7555859 |
US $39.40 |
||
|
12
|
12
7512085
Screw
10; |
7512085 |
— | ||
| replacement | |||||
|
12
|
12
7511989
Screw
10; |
7511989 |
— | ||
|
13
|
13
5431786 Toolbox |
5431786 |
US $65.99 |
||
|
14
|
14
7621403 Blind rivet(50)50; |
7621403 |
US $0.79 |
||
|
15
|
15
5211033 Bracket,lever retainer |
5211033 |
US $23.61 |
||
|
16
|
16
1040387 Latch,seat |
1040387 |
US $37.63 |
||
|
17
|
17
7041370 Spring, latch |
7041370 |
US $8.17 |
||
|
18
|
18
2681747-070
Cover,seat,blk.
|
2681747-070 |
— | ||
|
18
|
18
2682441-070
Seat
|
2682441-070 |
— | ||
|
18
|
18
5811104 Foil,seatbase,lg, |
5811104 |
US $20.28 |
||
|
18
|
18
5811105 Foil,seatbase,sm, |
5811105 |
US $12.20 |
||
|
19
|
19
5410414 Bumper, rubber (10) |
5410414 |
US $1.89 |
||
|
20
|
20
7512130 Bolt10; |
7512130 |
US $2.45 |
||
|
21
|
21
7555748 Washer10; |
7555748 |
US $2.45 |
||
|
22
|
22
5431787 Cover, toolbox |
5431787 |
US $17.24 |
||
|
23
|
23
5410896 Cap,drain (10) |
5410896 |
US $3.75 |
||
|
24
|
24
7661638 Rivet,interlock,b(50)50; |
7661638 |
US $0.79 |
||
|
25
|
25
5242953-067
Guard, clutch
|
5242953-067 |
— | ||
|
27
|
27
7552603 Washer,spring lock(10)10; |
7552603 |
US $26.30 |
||
|
28
|
28
7512492 Screw(10)10; |
7512492 |
US $39.40 |
||
|
29
|
29
7080653 Clamp,hose,1",nylon |
7080653 |
US $2.77 |
||
|
30
|
30
7512024 Screw10; |
7512024 |
US $2.45 |
||
|
31
|
31
7542122 Nut-nylok(10)10; |
7542122 |
US $26.30 |
||
|
32
|
32
5432280 Spacer,footwell |
5432280 |
US $9.10 |
||
|
33
|
33
7517377 Screw |
7517377 |
US $2.98 |
||
|
34
|
34
1012796-067
Frame-main,blk
|
1012796-067 |
— | ||
|
35
|
35
5410770 Grommet |
5410770 |
US $1.98 |
||
|
36
|
36
7078261
Decal-hitch (1225)
1225; |
7078261 |
— | ||
|
37
|
37
7517376
Screw
|
7517376 |
— | ||
| replacement | |||||
|
37
|
37
7512279 Screw(10) * |
7512279 |
US $0.79 |
||
|
38
|
38
5432221-070 Footwell,lh,blk,nylon* |
5432221-070 |
US $244.23 |
||
|
38
|
38
5433219-070 Footwell-nylon,rh,blk* |
5433219-070 |
US $244.23 |
||
|
39
|
39
5811111 Foil |
5811111 |
US $28.58 |
||
|
40
|
40
5811106 Foil,front |
5811106 |
US $7.09 |
||
|
41
|
41
7073761 Decal,carb,info, |
7073761 |
US $1.89 |
||
|
42
|
42
7077446 Decal,filt,element,4-s |
7077446 |
US $1.89 |
||
|
43
|
43
5811087
Foil,(6x1)
6X1; |
5811087 |
— | ||
|
44
|
44
7512232 Bolt(10)10; |
7512232 |
US $26.30 |
||
|
45
|
45
7515194
Screw
10; |
7515194 |
— | ||
| replacement | |||||
|
45
|
45
7517685 Screw(10)10; |
7517685 |
US $65.60 |
||
|
46
|
46
7670057 Nut, speed(10) *10; |
7670057 |
US $2.63 |
||
|
47
|
47
5431796
Mudguard,lh,r.blk.
|
5431796 |
— | ||
| replacement | |||||
|
47
|
47
5431796-070
Guard-mud,rear,lh,blk **
|
5431796-070 |
— | ||
|
47
|
47
5431797
Mudguard,rh,r.blk.
|
5431797 |
— | ||
| replacement | |||||
|
47
|
47
5431797-070 Guard-mud,rear,rh,blk ** |
5431797-070 |
US $72.56 |
||
