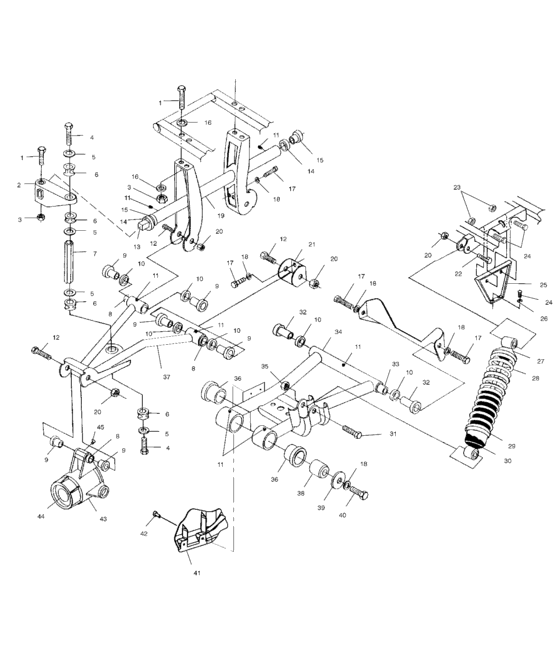

Rear suspension (A99CH50EB) Diagram Polaris WORKER 500
- Model code
- A99CH50EB
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7512329 Bolt10; |
7512329 |
US $4.59 |
||
|
2
|
2
1580107-067
Arm,stab,bar,blk
|
1580107-067 |
— | ||
|
3
|
3
7542303 Nut flex-loc10; |
7542303 |
US $5.22 |
||
|
4
|
4
7517231 Screw10; |
7517231 |
US $9.19 |
||
|
5
|
5
7555761 Washer10; |
7555761 |
US $3.26 |
||
|
6
|
6
5432598 Bushing,stab.link |
5432598 |
US $4.94 |
||
|
7
|
7
5020827 Rod-linkage, stabilizer |
5020827 |
US $40.58 |
||
|
8
|
8
5020826 Shaft,a-arm,short |
5020826 |
US $13.79 |
||
|
9
|
9
5432091
Bushing,a-arm,short
|
5432091 |
— | ||
| replacement | |||||
|
9
|
9
5439270 Bushing-a-arm-short,blk |
5439270 |
US $3.94 |
||
|
10
|
10
5020677 Bushing,a-arm spacer(10)10; |
5020677 |
US $118.10 |
||
|
11
|
11
7080433 Fitting,lubrication,threaded(1010; |
7080433 |
US $5.25 |
||
|
12
|
12
7515472 Bolt10; |
7515472 |
US $6.56 |
||
|
13
|
13
5333393-067
Bar,stab.tube,blk.
|
5333393-067 |
— | ||
|
14
|
14
7555939 Washer10; |
7555939 |
US $4.59 |
||
|
15
|
15
5432169
Bushing,stab.tube
|
5432169 |
— | ||
| replacement | |||||
|
15
|
15
5433413
Bushing, stabilizer tube
|
5433413 |
— | ||
|
16
|
16
7558402 Washer,flat(10)10; |
7558402 |
US $18.70 |
||
|
17
|
17
7512492 Screw(10)10; |
7512492 |
US $39.40 |
||
|
18
|
18
7552603 Washer,spring lock(10)10; |
7552603 |
US $26.30 |
||
|
19
|
19
1541322-067
Support,stabilizer,blk,
|
1541322-067 |
— | ||
|
20
|
20
7542403 Nut lock(10)10; |
7542403 |
US $3.75 |
||
|
21
|
21
5242077-067
Bracket, a-arm pivot
|
5242077-067 |
— | ||
|
22
|
22
7515433 Screw(10) |
7515433 |
US $26.30 |
||
| replacement | |||||
|
22
|
22
7517583 Scr-3/8-24x2 hx/cp gr5-y-sp |
7517583 |
US $3.57 |
||
|
23
|
23
7542321 Nut,flange(10)10; |
7542321 |
US $1.89 |
||
|
24
|
24
7515321 Bolt10; |
7515321 |
US $1.89 |
||
|
25
|
25
5224667-067 Support,upr,trans,blk |
5224667-067 |
US $69.30 |
||
|
26
|
26
7552901 Washer,spring lock(10)10; |
7552901 |
US $39.40 |
||
|
27
|
27
5630885
Retainer, spring
|
5630885 |
— | ||
|
28
|
28
7041453-067
Spring, compression, rear
Sportsman; |
7041453-067 |
— | ||
|
28
|
28
7041519-067 Spring,comp,rr,blkWorker; |
7041519-067 |
US $67.34 |
||
|
29
|
29
5630551 Cam,adjust,spring |
5630551 |
US $16.24 |
||
|
30
|
30
7041770 Shock-rr,2",indep susp |
7041770 |
US $178.73 |
||
|
31
|
31
7515415 Screw(10)10; |
7515415 |
US $1.49 |
||
|
32
|
32
5431596
Bushing,a-arm,long.
|
5431596 |
— | ||
| replacement | |||||
|
32
|
32
5433066
Bushing, a-arm, long
|
5433066 |
— | ||
|
33
|
33
5020964
Shaft,a-arm
|
5020964 |
— | ||
| replacement | |||||
|
33
|
33
5020681
Shaft, a-arm
|
5020681 |
— | ||
|
34
|
34
1012717-067
Arm,control,lh,low,blk,
|
1012717-067 |
— | ||
|
34
|
34
1012718-067
Arm,control,rh,low,blk,
|
1012718-067 |
— | ||
|
35
|
35
7542439 Nut,nylok(10)10; |
7542439 |
US $1.96 |
||
|
36
|
36
5432092
Bushing,control,lower
|
5432092 |
— | ||
| replacement | |||||
|
36
|
36
5433065
Bushing, control, lower
|
5433065 |
— | ||
|
37
|
37
1040730-067
Control,upper,arm,blk,lh **
|
1040730-067 |
— | ||
|
37
|
37
1040731-067
Control,upper,arm,blk,rh **
|
1040731-067 |
— | ||
|
38
|
38
5131883 Bushing,brng,carrier |
5131883 |
US $32.29 |
||
|
39
|
39
7555936 Washer(10) *10; |
7555936 |
US $5.64 |
||
|
40
|
40
7517297 Screw(10)10; |
7517297 |
US $3.75 |
||
|
41
|
41
5433098
Shield,cv,lh,blk.
|
5433098 |
— | ||
| replacement | |||||
|
41
|
41
5433098-070
Shield-cv,rear,black,lh
|
5433098-070 |
— | ||
|
41
|
41
5433099
Shield-cv.blk,rh
|
5433099 |
— | ||
| replacement | |||||
|
41
|
41
5433099-070
Shield-cv,rear,black,rh
|
5433099-070 |
— | ||
|
42
|
42
7512084 Screw(10)10; |
7512084 |
US $19.60 |
||
|
43
|
43
5131738
Carrier, wheel bearing
MACH; |
5131738 |
— | ||
|
44
|
44
3585502
Bearing
|
3585502 |
— | ||
| replacement | |||||
|
44
|
44
3514635 Bearing-wheel,40x74x40mmAnalog Koyo DAC4074W12CS47 |
3514635 |
US $59.06 |
||
|
45
|
45
7080586 Fitting,lube,45 deg,(10)10; |
7080586 |
US $1.89 |
||
