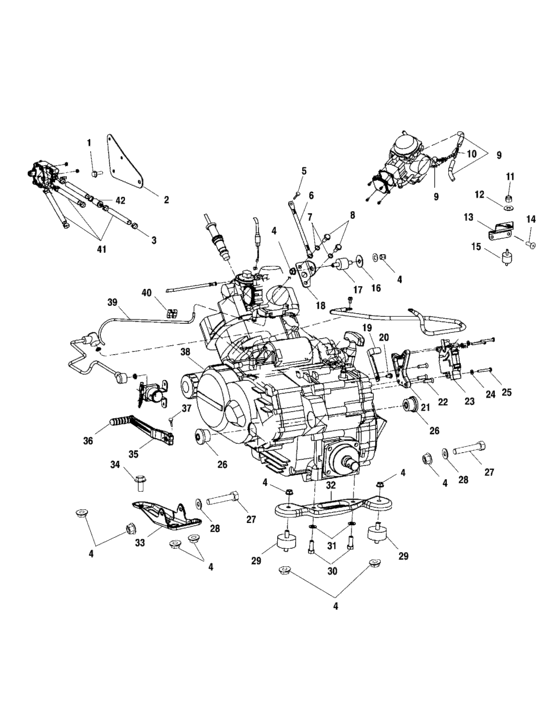

Engine mounting (A00CK32AA) Diagram Polaris XPEDITION 325
- Model code
- A00CK32AA
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7517756 Screw,10-24x5/8 (10) |
7517756 |
US $19.60 |
||
|
2
|
2
5243829-067
Strap, fuel pump
|
5243829-067 |
— | ||
|
3
|
3
7080003 Clamp,hose(10)10; |
7080003 |
US $0.79 |
||
|
4
|
4
7547108 Nut |
7547108 |
US $2.98 |
||
|
5
|
5
7517386 Screw(10)10; |
7517386 |
US $19.60 |
||
|
6
|
6
4010132 Cable,gnd-engine |
4010132 |
US $30.54 |
||
|
7
|
7
7552901 Washer,spring lock(10)10; |
7552901 |
US $39.40 |
||
|
8
|
8
7512315 Bolt10; |
7512315 |
US $2.98 |
||
|
9
|
9
8450003-1525 Line,fuel,1/4 id(1525 cm,)1525 CM.; |
8450003-1525 |
US $85.45 |
||
|
10
|
10
7052075 Fitting, tee |
7052075 |
US $7.68 |
||
|
11
|
11
7542122 Nut-nylok(10)10; |
7542122 |
US $26.30 |
||
|
12
|
12
7558301 Washer, flat(10) *10; |
7558301 |
US $0.79 |
||
|
13
|
13
5244058-067 Bracket-carb mount,blk |
5244058-067 |
US $4.73 |
||
|
14
|
14
3084205 Asm,,screw & washer(10)10; |
3084205 |
US $5.04 |
||
|
15
|
15
3110050 Mount,carburetor |
3110050 |
US $15.73 |
||
|
16
|
16
7555823 Washer10; |
7555823 |
US $6.56 |
||
|
17
|
17
3021108 Mount-rubber,top,45 duroIf built before 8/21/99; |
3021108 |
US $19.30 |
||
|
17
|
17
3021180 Mnt,eng,,3/8-16x,66,3-tabIf built after 8/21/99; |
3021180 |
US $22.45 |
||
|
18
|
18
5244075-067
Mnt,engine,top,rear,man,blk
If built before 8/26/99; |
5244075-067 |
— | ||
|
18
|
18
5244517-067 Mount,engine,top man,blkIf built after 8/26/99; |
5244517-067 |
US $9.15 |
||
|
19
|
19
5243586-067 Lever-reverse,blk |
5243586-067 |
US $24.43 |
||
|
20
|
20
7517653 Screw |
7517653 |
US $3.75 |
||
|
21
|
21
5132141 Mount,actuator,rev,mach |
5132141 |
US $30.54 |
||
|
22
|
22
7517652 Screw |
7517652 |
US $3.26 |
||
|
23
|
23
4010265
Actuator-pollak,18-201-01
|
4010265 |
— | ||
|
24
|
24
7555746
Washer
50; |
7555746 |
— | ||
| replacement | |||||
|
24
|
24
7555904 Washer50; |
7555904 |
US $0.79 |
||
|
25
|
25
7510504 Screw10; |
7510504 |
US $4.71 |
||
|
26
|
26
5411927 Mount,rubber,engine,man |
5411927 |
US $14.28 |
||
|
27
|
27
7515406 Screw10; |
7515406 |
US $9.10 |
||
|
28
|
28
7555806 Washer,flat(10)10; |
7555806 |
US $13.10 |
||
|
29
|
29
3110045
Mount, engine, rubber
|
3110045 |
— | ||
| replacement | |||||
|
29
|
29
3110068
Mount,r.rubber
|
3110068 |
— | ||
|
30
|
30
7512492 Screw(10)10; |
7512492 |
US $39.40 |
||
|
31
|
31
7552603 Washer,spring lock(10)10; |
7552603 |
US $26.30 |
||
|
32
|
32
5242984-067 Mount,5 speed lwr,rear,blk, |
5242984-067 |
US $19.30 |
||
|
33
|
33
5242905-067 Mount-engine lower,manual,blk |
5242905-067 |
US $14.28 |
||
|
34
|
34
7517388 Screw10; |
7517388 |
US $5.22 |
||
|
35
|
35
5631054-067
Lever,shift,325 5 spd,blk
|
5631054-067 |
— | ||
|
36
|
36
5411364 Pad,shift pedal |
5411364 |
US $24.61 |
||
|
37
|
37
7512225 Screw10; |
7512225 |
US $3.26 |
||
|
38
|
38
3086945
Engine, es32pfe03
ES32 PLE 03; NOTE: The Short Block assembly contains a crankcase Asm., cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization is required for war; |
3086945 |
— | ||
|
39
|
39
8360009-600 Line,fuel,1/8 id,600 cm, |
8360009-600 |
US $27.39 |
||
|
40
|
40
7080816 Clip-t,dual 3/16" line |
7080816 |
US $6.69 |
||
|
41
|
41
8450040-60
Line, fuel
|
8450040-60 |
— | ||
|
42
|
42
2530009 Filter,small,in-line,(10)10; |
2530009 |
US $6.56 |
||
