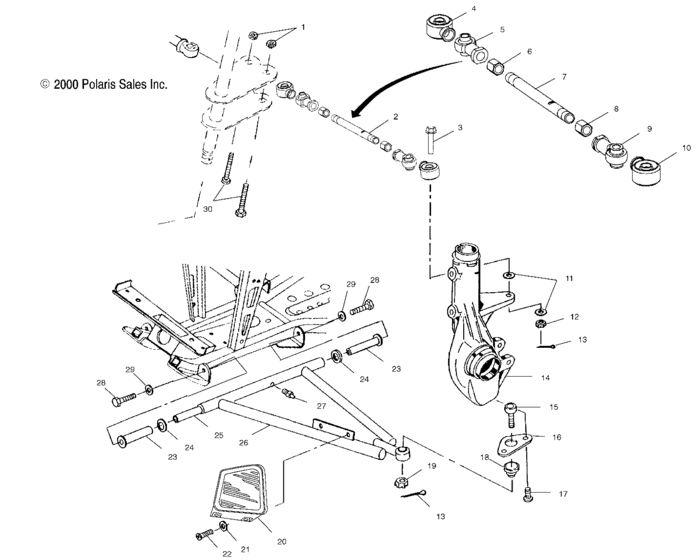

A-arm/strut mounting (A01CK32AA) Diagram Polaris XPEDITION 325
- Model code
- A01CK32AA
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7542403 Nut lock(10)10; |
7542403 |
US $3.75 |
||
|
2
|
2
1820805
Asm., tie rod
Incl. 4-9; |
1820805 |
— | ||
| replacement | |||||
|
2
|
2
1822852 Asm-tie rod,1/2-20x13,4Incl. 4-9; |
1822852 |
US $127.05 |
||
|
3
|
3
7517674
Bolt
|
7517674 |
— | ||
| replacement | |||||
|
3
|
3
7517909 Bolt-m10x1,25x65,hx wash hd |
7517909 |
US $7.68 |
||
|
4
|
4
5411291
Boot, seal
|
5411291 |
— | ||
| replacement | |||||
|
4
|
4
5412928 Boot-seal,rod end,1/2 in |
5412928 |
US $11.81 |
||
|
5
|
5
7061034
Rod end, rh
|
7061034 |
— | ||
| replacement | |||||
|
5
|
5
7061139 Rod-end,3/8,1/2-20rh,44deg |
7061139 |
US $59.06 |
||
|
6
|
6
7542711 Nut-jam(10)10; |
7542711 |
US $0.79 |
||
|
7
|
7
5020926 Rod,tie |
5020926 |
US $35.67 |
||
|
8
|
8
7547028
Nut,jam,lh(10)
10; |
7547028 |
— | ||
|
9
|
9
7061054
Rod, end, lh
|
7061054 |
— | ||
| replacement | |||||
|
9
|
9
7061138 Rod-end,10mm,1/2-20lh,42 deg |
7061138 |
US $59.06 |
||
|
10
|
10
5411920
Boot, seal
|
5411920 |
— | ||
| replacement | |||||
|
10
|
10
5412929 Boot-seal,rod end,10mm |
5412929 |
US $11.81 |
||
|
11
|
11
7556099 Washer (10) |
7556099 |
US $1.89 |
||
|
12
|
12
7546904 Nut, castle(10)10; |
7546904 |
US $3.26 |
||
|
13
|
13
7661203 Pin,cotter(10)10; |
7661203 |
US $26.30 |
||
|
15
|
15
7080927
Joint, ball
|
7080927 |
— | ||
| replacement | |||||
|
15
|
15
7061158 Ball-joint,greaseless,strut |
7061158 |
US $95.38 |
||
|
16
|
16
5211121 Brkt, ball joint |
5211121 |
US $34.46 |
||
|
17
|
17
7512284 Bolt, socket(10)10; |
7512284 |
US $1.96 |
||
|
18
|
18
5410548
Boot, rubber
|
5410548 |
— | ||
| replacement | |||||
|
18
|
18
5412658 Boot-balljoint,greaseless,strt |
5412658 |
US $6.56 |
||
|
19
|
19
7542438 Nut, castle(10)10; |
7542438 |
US $2.63 |
||
|
20
|
20
5431150-070
Shield-cv joint,lh,blk
|
5431150-070 |
— | ||
|
20
|
20
5431149-070 Shield-cv joint,rh,blk |
5431149-070 |
US $19.30 |
||
|
21
|
21
7558201 Washer, flat10; |
7558201 |
US $2.92 |
||
|
22
|
22
7512084 Screw(10)10; |
7512084 |
US $19.60 |
||
|
23
|
23
5433066
Bushing, a-arm, long
|
5433066 |
— | ||
| replacement | |||||
|
23
|
23
5436973 Bushing-a-arm,long,102,36mm |
5436973 |
US $10.83 |
||
|
24
|
24
5020677 Bushing,a-arm spacer(10)10; |
5020677 |
US $118.10 |
||
|
25
|
25
5020681
Shaft, a-arm
|
5020681 |
— | ||
|
26
|
26
2201609
Kit, a-frame, lh
1541444; |
2201609 |
— | ||
|
26
|
26
2201610
Kit, a-frame, rh
1541445; |
2201610 |
— | ||
|
27
|
27
7080433 Fitting,lubrication,threaded(1010; |
7080433 |
US $5.25 |
||
|
28
|
28
7512492 Screw(10)10; |
7512492 |
US $39.40 |
||
|
29
|
29
7552603 Washer,spring lock(10)10; |
7552603 |
US $26.30 |
||
|
30
|
30
7515415 Screw(10)10; |
7515415 |
US $1.49 |
||
