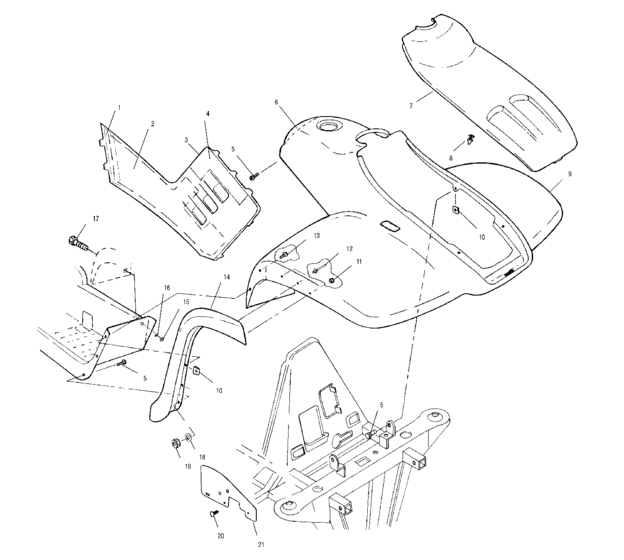

Front cab (A01CK32AA) Diagram Polaris XPEDITION 325
- Model code
- A01CK32AA
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5811491 Foil-rh |
5811491 |
US $4.34 |
||
|
2
|
2
5811210
Foil,foam,sidepanel(300)
300; |
5811210 |
— | ||
|
3
|
3
2632084-282
Panel asm/foam,lh,xped,d,dune
|
2632084-282 |
— | ||
|
3
|
3
2632147-282 Panel/foil/foam,rh,d dune |
2632147-282 |
US $112.28 |
||
|
4
|
4
5811797 Foam-lh |
5811797 |
US $9.15 |
||
|
4
|
4
5811798
Foam,panel,side,rh
|
5811798 |
— | ||
|
5
|
5
7512232 Bolt(10)10; |
7512232 |
US $26.30 |
||
|
6
|
6
5811801 Foam,front |
5811801 |
US $5.64 |
||
|
7
|
7
5432088-282 Cover-front,desert dune |
5432088-282 |
US $122.12 |
||
|
8
|
8
7670085 Clip,spring(10)10; |
7670085 |
US $1.77 |
||
|
9
|
9
2632301-282
Cab,foam/front,desert dune
|
2632301-282 |
— | ||
|
10
|
10
7670057 Nut, speed(10) *10; |
7670057 |
US $2.63 |
||
|
11
|
11
7670068 Nut, push-on(10) *10; |
7670068 |
US $0.79 |
||
|
12
|
12
7661645 Rivet(50) *50; |
7661645 |
US $1.89 |
||
|
13
|
13
7517312 Screw (10) |
7517312 |
US $1.89 |
||
|
14
|
14
5431798-070 Guard-mudflap,front,black,lh |
5431798-070 |
US $56.14 |
||
|
14
|
14
5431799-070 Guard-mudflap,front,black,rh |
5431799-070 |
US $56.14 |
||
|
15
|
15
7541925
Nut, nylok 10-24 y
10; |
7541925 |
— | ||
|
16
|
16
7555792 Washer10; |
7555792 |
US $2.45 |
||
|
17
|
17
7512085
Screw
10; |
7512085 |
— | ||
| replacement | |||||
|
17
|
17
7511989
Screw
10; |
7511989 |
— | ||
|
18
|
18
7555931
Washer
10; |
7555931 |
— | ||
| replacement | |||||
|
18
|
18
7558221 Washer(10)10; |
7558221 |
US $0.79 |
||
|
19
|
19
7542122 Nut-nylok(10)10; |
7542122 |
US $26.30 |
||
|
20
|
20
7621509 Rivet,plasti-lock(50) *50; |
7621509 |
US $197 |
||
|
21
|
21
5811917 Shield-deflector |
5811917 |
US $9.15 |
||
