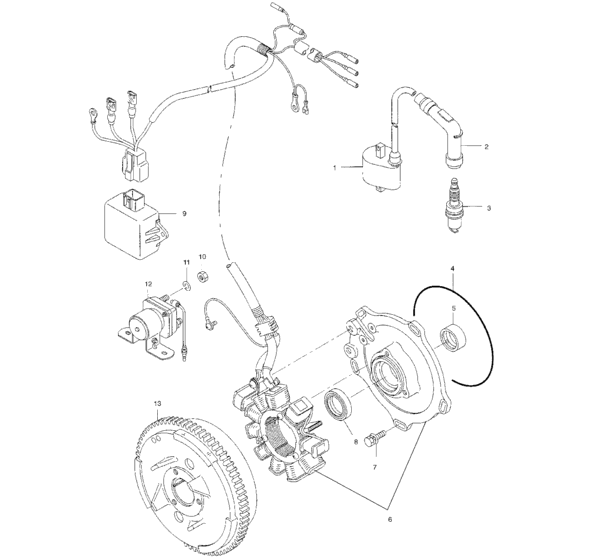

Magneto (A01CK32AA) Diagram Polaris XPEDITION 325
- Model code
- A01CK32AA
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3086484
Asm., coil, ignition
|
3086484 |
— | ||
| replacement | |||||
|
1
|
1
3086483
Ignition coil,asm.
|
3086483 |
— | ||
|
2
|
2
3087037 Cap-spark plug * |
3087037 |
US $34.67 |
||
|
3
|
3
3084997
Plug, spark
10; |
3084997 |
— | ||
| replacement | |||||
|
3
|
3
3070172 Spark plug,bkr6e (4)10; |
3070172 |
US $3.50 |
||
|
4
|
4
3084978 O-ringReplace w/same color; |
3084978 |
US $24.43 |
||
|
4
|
4
3086992 O-ring(red)RED; |
3086992 |
US $17.24 |
||
|
5
|
5
3086460 Bearing-dry |
3086460 |
US $29.54 |
||
|
6
|
6
3086904
Plate,asm
Incl. 5,8; |
3086904 |
— | ||
|
7
|
7
3081657 Bolt&washer asm, |
3081657 |
US $2.98 |
||
|
8
|
8
3084973 Seal, oil |
3084973 |
US $35.12 |
||
|
9
|
9
3086905
Cdi,system
|
3086905 |
— | ||
|
10
|
10
3083073 Nut |
3083073 |
US $0.79 |
||
|
11
|
11
3080077 Washer spring(10)10; |
3080077 |
US $0.79 |
||
|
12
|
12
3086236
Switch, magnetic
|
3086236 |
— | ||
|
13
|
13
3086457
Flywheel w/ring gear
|
3086457 |
— | ||
