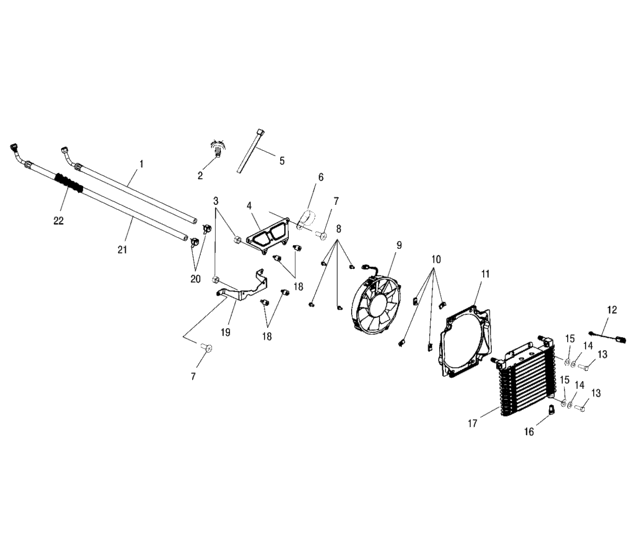

Oil cooling (A01CK32AA) Diagram Polaris XPEDITION 325
- Model code
- A01CK32AA
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5412085 Hose-oil cooler,xpedition |
5412085 |
US $112.28 |
||
|
2
|
2
7080965 Mount-cable tie,,25 |
7080965 |
US $4.34 |
||
|
3
|
3
7542122 Nut-nylok(10)10; |
7542122 |
US $26.30 |
||
|
4
|
4
5243783-067
Brkt,oil cooler,top,blk
|
5243783-067 |
— | ||
|
5
|
5
7080492 Cable tie,11 inch10; |
7080492 |
US $3.64 |
||
|
6
|
6
7080869 Clamp-p,cushioned,1,25" i,d, |
7080869 |
US $9.85 |
||
|
7
|
7
7512240 Bolt10; |
7512240 |
US $2.45 |
||
|
8
|
8
7517659 Screw |
7517659 |
US $1.89 |
||
|
9
|
9
2410157
Fan,motor
|
2410157 |
— | ||
|
10
|
10
7670111 Clip,u |
7670111 |
US $2.70 |
||
|
11
|
11
5433353 Shroud,fan |
5433353 |
US $86.68 |
||
|
12
|
12
4010274 Thermister |
4010274 |
US $150.26 |
||
|
13
|
13
7512113 Bolt10; |
7512113 |
US $2.45 |
||
|
14
|
14
7552801 Washer, spring lock(10)10; |
7552801 |
US $2.45 |
||
|
15
|
15
7558301 Washer, flat(10) *10; |
7558301 |
US $0.79 |
||
|
16
|
16
7052244
Plug, drain
|
7052244 |
— | ||
|
17
|
17
1240074
Cooler, oil
|
1240074 |
— | ||
|
18
|
18
5411548 Mount,rubber |
5411548 |
US $14.28 |
||
|
19
|
19
1013302 Brkt,lower,oil cooler asm, |
1013302 |
US $32.52 |
||
|
20
|
20
7080862 Clamp-hose mubea |
7080862 |
US $4.73 |
||
|
21
|
21
5412084 Hose-oil cooler,xpedition |
5412084 |
US $86.68 |
||
|
22
|
22
8450086-07
Tubing-convoluted,5/8 id,7cm
|
8450086-07 |
— |
