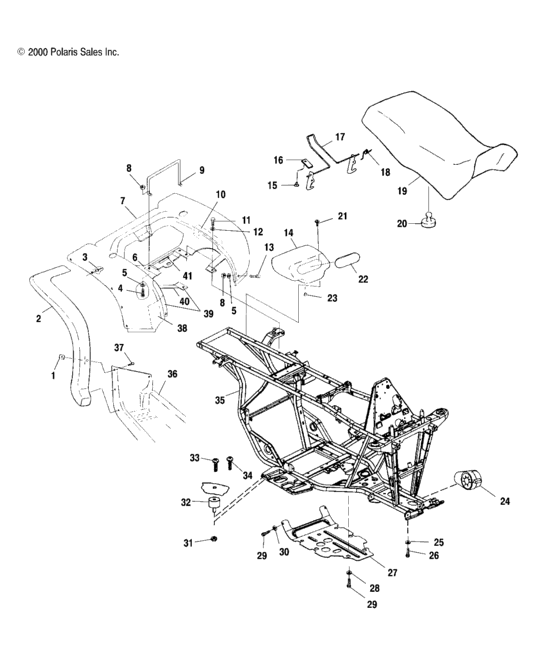

Rear cab and seat (A01CK32AA) Diagram Polaris XPEDITION 325
- Model code
- A01CK32AA
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7670057 Nut, speed(10) *10; |
7670057 |
US $2.63 |
||
|
2
|
2
5431796-070
Guard-mud,rear,lh,blk **
|
5431796-070 |
— | ||
|
2
|
2
5431797-070 Guard-mud,rear,rh,blk ** |
5431797-070 |
US $72.56 |
||
|
3
|
3
7661645 Rivet(50) *50; |
7661645 |
US $1.89 |
||
|
4
|
4
7511930 Screw(10)10; |
7511930 |
US $0.79 |
||
|
5
|
5
7555792 Washer10; |
7555792 |
US $2.45 |
||
|
6
|
6
5811107 Foil,rear |
5811107 |
US $5.11 |
||
|
7
|
7
5432117-282
Cab,rear,gen 4,desert dune
|
5432117-282 |
— | ||
|
8
|
8
7541925
Nut, nylok 10-24 y
10; |
7541925 |
— | ||
|
9
|
9
5224592 Retainer,seat latch |
5224592 |
US $47.25 |
||
|
10
|
10
5811308 Foil,tape,3 x 12 |
5811308 |
US $12.20 |
||
|
11
|
11
7512242 Screw(10)10; |
7512242 |
US $0.79 |
||
|
12
|
12
7555859 Washer, flat(10)10; |
7555859 |
US $39.40 |
||
|
13
|
13
7512085
Screw
10; |
7512085 |
— | ||
| replacement | |||||
|
13
|
13
7511989
Screw
10; |
7511989 |
— | ||
|
14
|
14
5431786 Toolbox |
5431786 |
US $65.99 |
||
|
15
|
15
7621403 Blind rivet(50)50; |
7621403 |
US $0.79 |
||
|
16
|
16
5211033 Bracket,lever retainer |
5211033 |
US $23.61 |
||
|
17
|
17
1040387 Latch,seat |
1040387 |
US $37.63 |
||
|
18
|
18
7041370 Spring, latch |
7041370 |
US $8.17 |
||
|
19
|
19
2682441-070
Seat
|
2682441-070 |
— | ||
|
19
|
19
2681747-070
Cover,seat,blk.
|
2681747-070 |
— | ||
|
19
|
19
5811104 Foil,seatbase,lg, |
5811104 |
US $20.28 |
||
|
19
|
19
5811105 Foil,seatbase,sm, |
5811105 |
US $12.20 |
||
|
20
|
20
5412067 Bumper-rubber10; |
5412067 |
US $2.98 |
||
|
21
|
21
7517599 Asm,,bolt /washer,88 |
7517599 |
US $3.94 |
||
|
22
|
22
5431787 Cover, toolbox |
5431787 |
US $17.24 |
||
|
23
|
23
5410896 Cap,drain (10) |
5410896 |
US $3.75 |
||
|
25
|
25
7552603 Washer,spring lock(10)10; |
7552603 |
US $26.30 |
||
|
26
|
26
7512492 Screw(10)10; |
7512492 |
US $39.40 |
||
|
27
|
27
5433435
Guard, rock
|
5433435 |
— | ||
|
28
|
28
7556065 Washer |
7556065 |
US $6.69 |
||
|
29
|
29
7517386 Screw(10)10; |
7517386 |
US $19.60 |
||
|
30
|
30
7558301 Washer, flat(10) *10; |
7558301 |
US $0.79 |
||
|
31
|
31
7542122 Nut-nylok(10)10; |
7542122 |
US $26.30 |
||
|
32
|
32
5411548 Mount,rubber |
5411548 |
US $14.28 |
||
|
33
|
33
7515111 Screw10; |
7515111 |
US $6.69 |
||
|
34
|
34
7512297 Screw10; |
7512297 |
US $4.43 |
||
|
35
|
35
1013381-067
Frame main,5-speed,blk
|
1013381-067 |
— | ||
|
36
|
36
5433391-070 Footwell-lh,ny,man,blk |
5433391-070 |
US $244.23 |
||
|
36
|
36
5433392-070 Footwell-rh,ny,man,blk |
5433392-070 |
US $212.01 |
||
|
37
|
37
7512232 Bolt(10)10; |
7512232 |
US $26.30 |
||
|
38
|
38
5811111 Foil |
5811111 |
US $28.58 |
||
|
39
|
39
5811106 Foil,front |
5811106 |
US $7.09 |
||
|
40
|
40
5811087
Foil,(6x1)
6X1; |
5811087 |
— | ||
|
41
|
41
7079902
Decal,carb/filter info
|
7079902 |
— | ||
