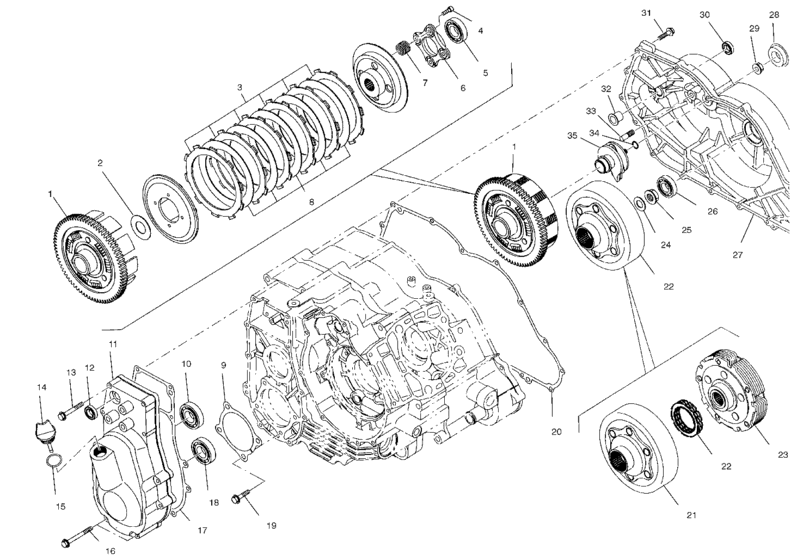

Clutch (A00CK42AA) Diagram Polaris XPEDITION 425
- Model code
- A00CK42AB
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3086274
Clutch ay,(multiple)
MULTIPLE;Incl. 1-8; |
3086274 |
— | ||
|
1
|
1
3086275
Clutch,outer complete
|
3086275 |
— | ||
|
2
|
2
3086278 Washer,thrust |
3086278 |
US $9.85 |
||
|
3
|
3
3086276
Clutch,disk
|
3086276 |
— | ||
|
4
|
4
3086281
Bolt,socket
|
3086281 |
— | ||
|
5
|
5
3086282 Bearing,ball |
3086282 |
US $37.43 |
||
|
6
|
6
3086280
Plate,lifter
|
3086280 |
— | ||
|
7
|
7
3086279 Spring |
3086279 |
US $14.28 |
||
|
8
|
8
3086277
Clutch,plate
|
3086277 |
— | ||
|
9
|
9
3086263
Shim (drive pinion),15mm
DRIVE PINION;.15; |
3086263 |
— | ||
|
9
|
9
3086264 Shim (drive pinion),2mmDRIVE PINION;.2; |
3086264 |
US $3.94 |
||
|
9
|
9
3086265
Shim (drive pinion),25mm
DRIVE PINION;.25; |
3086265 |
— | ||
|
9
|
9
3086266
Shim, drive pinion
DRIVE PINION;.3; |
3086266 |
— | ||
|
9
|
9
3086267
Shim (drive pinion),5mm
DRIVE PINION;.5; |
3086267 |
— | ||
|
9
|
9
3086268
Shim (drive pinion),175mm
DRIVE PINION;.175; |
3086268 |
— | ||
|
9
|
9
3086269
Shim (drive pinion),225mm
DRIVE PINION;.225; |
3086269 |
— | ||
|
9
|
9
3086270
Shim (drive pinion),275mm
DRIVE PINION;.275; |
3086270 |
— | ||
|
10
|
10
3086261 Bearing,ball |
3086261 |
US $23.64 |
||
|
11
|
11
3086256 Asm,,reduction coverIncl. 10-12,14,15,18; |
3086256 |
US $254.08 |
||
|
11
|
11
3086257
Desc not_available
|
3086257 |
— | ||
|
12
|
12
3086258 Seal,oil |
3086258 |
US $8.17 |
||
|
13
|
13
3086288 Bolt,flange |
3086288 |
US $8.66 |
||
|
14
|
14
3086259
Plug
|
3086259 |
— | ||
|
15
|
15
3086260 O-ring |
3086260 |
US $3.06 |
||
|
16
|
16
3084179 Bolt, flange |
3084179 |
US $3.75 |
||
|
17
|
17
3086283
Gasket
|
3086283 |
— | ||
|
18
|
18
3086262 Bearing,ball |
3086262 |
US $26.60 |
||
|
19
|
19
3086287 Bolt,flange |
3086287 |
US $1 |
||
|
20
|
20
3086284 Gasket-clutch cover |
3086284 |
US $36.63 |
||
|
21
|
21
3086272 Drum,outer |
3086272 |
US $265.90 |
||
|
22
|
22
3086271
Clutch,ay
CENTRIFU;Incl. 21-23; |
3086271 |
— | ||
| replacement | |||||
|
22
|
22
3086504
Asm,,clutch (centrifugal)
CENTRIFU;Incl. 21-23; |
3086504 |
— | ||
|
23
|
23
3086273
Desc not_available
|
3086273 |
— | ||
|
24
|
24
3086381 Washer-lock |
3086381 |
US $9.85 |
||
|
25
|
25
3086378 Nut,lock |
3086378 |
US $28.07 |
||
|
26
|
26
3086254 Bearing-ball |
3086254 |
US $25.60 |
||
|
27
|
27
3086246
Clutch cover asm,
Incl. 26,27,29,30,32-35; |
3086246 |
— | ||
|
27
|
27
3086247
Cover, Clutch
|
3086247 |
— | ||
|
28
|
28
3086255
Plug, blind
|
3086255 |
— | ||
|
29
|
29
3086253 Nut-flange |
3086253 |
US $1.77 |
||
|
30
|
30
3086249
Seal-oil
|
3086249 |
— | ||
|
31
|
31
3084874 Bolt, flange |
3084874 |
US $1.77 |
||
|
32
|
32
3086248
Bushing, flange
|
3086248 |
— | ||
|
33
|
33
3086251 Pin,(clutch cover)CLUTCH COVER; |
3086251 |
US $22.45 |
||
|
34
|
34
3086252 O-ring |
3086252 |
US $4.34 |
||
|
35
|
35
3086250
Lever,release
|
3086250 |
— | ||
