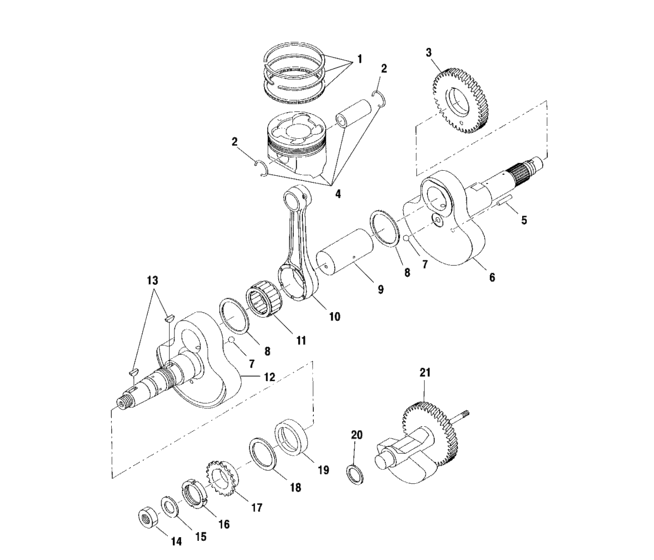

Crankshaft and piston (A00CK42AA) Diagram Polaris XPEDITION 425
- Model code
- A00CK42AB
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3086488
Ring set, piston
STD;Std; |
3086488 |
— | ||
|
1
|
1
3086489
Ring set, piston
0.25 O/S;0.25 O/S; |
3086489 |
— | ||
|
1
|
1
3086490
Ring set, piston
0.50 O/S;0.50 O/S; |
3086490 |
— | ||
|
2
|
2
3085534 Clip(2)10; |
3085534 |
from US $3.20 |
||
|
3
|
3
3085345 Gear,balancer #1 |
3085345 |
US $256.04 |
||
|
4
|
4
3086207
Set, piston standard
STD;Std;Incl. 2,4; |
3086207 |
— | ||
|
4
|
4
3086208
Piston set
.25 O/S;0.25 O/S;Incl. 2,4; |
3086208 |
— | ||
|
4
|
4
3086209
Piston set
.50 O/S;0.50 O/S;Incl. 2,4; |
3086209 |
— | ||
|
5
|
5
3085346
Pin, dowel
|
3085346 |
— | ||
|
6
|
6
3086204
Crankshaft 2
|
3086204 |
— | ||
|
7
|
7
3085024 Ball, steel |
3085024 |
US $7.91 |
||
|
8
|
8
3085344 Spacer,crank pin |
3085344 |
US $12.11 |
||
|
9
|
9
3086205 Pin,crank |
3086205 |
US $62.06 |
||
|
10
|
10
3086206
Rod,connecting
|
3086206 |
— | ||
|
11
|
11
3085400 Bearing,large end |
3085400 |
US $97.44 |
||
| replacement | |||||
|
11
|
11
3085343
Bearing, end, large
|
3085343 |
— | ||
|
12
|
12
3086202 Crankshaft asm,Incl. 3,5,6-12; |
3086202 |
US $1,203.88 |
||
|
12
|
12
3086203 Crankshaft 1 |
3086203 |
US $516.99 |
||
|
13
|
13
3240168 Key, woodruff,(10)10; |
3240168 |
US $147.70 |
||
|
14
|
14
3083905
Nut,lock
|
3083905 |
— | ||
|
15
|
15
3083904
Washer
|
3083904 |
— | ||
| replacement | |||||
|
15
|
15
3086767
Washer
|
3086767 |
— | ||
|
16
|
16
3085980 Nut |
3085980 |
US $27.27 |
||
|
17
|
17
3085979
Sprocket 1
|
3085979 |
— | ||
|
18
|
18
3240088 Spacer,0,60.6; |
3240088 |
US $9.91 |
||
|
18
|
18
3084892 Spacer,0,80.8; |
3084892 |
US $11.25 |
||
|
18
|
18
3084893 Spacer,1,01.0; |
3084893 |
US $16.24 |
||
|
18
|
18
3084894 Spacer,1,21.2; |
3084894 |
US $16.24 |
||
|
19
|
19
3086211 Spacer-crankshaft |
3086211 |
US $14.77 |
||
|
20
|
20
3084895 Spacer,0,80.8; |
3084895 |
US $4.94 |
||
|
20
|
20
3084896 Spacer,1,01.0; |
3084896 |
US $4.94 |
||
|
20
|
20
3084897 Spacer,1,21.2; |
3084897 |
US $4.94 |
||
|
21
|
21
3086210 Shaft-balancer |
3086210 |
US $275.75 |
||
