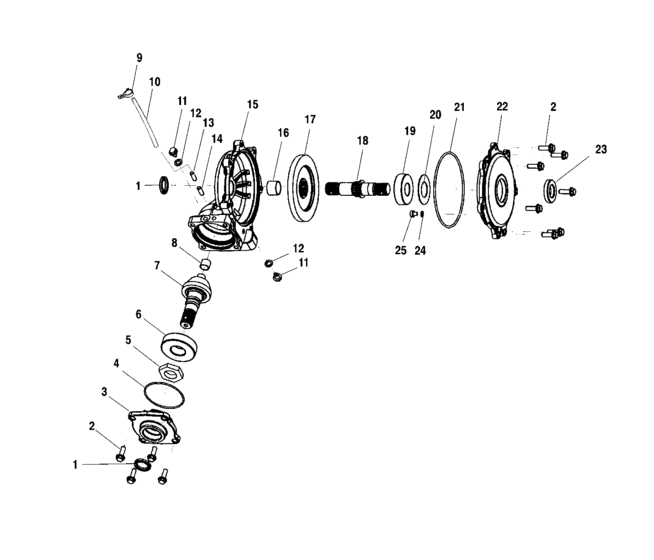

Front housing (A00CK42AA) Diagram Polaris XPEDITION 425
- Model code
- A00CK42AB
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3233319 Seal |
3233319 |
US $18.73 |
||
|
2
|
2
3233252 Screw |
3233252 |
US $8.87 |
||
|
3
|
3
3233573
Gearcase,cover
|
3233573 |
— | ||
|
4
|
4
3233588 O-ring 151 |
3233588 |
US $6.86 |
||
|
5
|
5
3233574
Nut
|
3233574 |
— | ||
|
6
|
6
3233589 Bearing,ball |
3233589 |
US $73.83 |
||
|
7
|
7
3233590
Shaft,hypoid 10t 7dp f
|
3233590 |
— | ||
|
8
|
8
3233591 Bushing |
3233591 |
US $8.17 |
||
|
9
|
9
7080756 Clip,snap-in |
7080756 |
US $3.26 |
||
|
10
|
10
8450003-1525 Line,fuel,1/4 id(1525 cm,)1525 CM.; |
8450003-1525 |
US $85.45 |
||
|
11
|
11
3233253
Plug, drain
|
3233253 |
— | ||
| replacement | |||||
|
11
|
11
3233777 Plug-hex flange |
3233777 |
US $19.30 |
||
|
12
|
12
3233254 Washer,plug |
3233254 |
US $4.73 |
||
|
13
|
13
3233578 Plug,cap vent |
3233578 |
US $3.26 |
||
|
14
|
14
3233524 Tube,vent |
3233524 |
US $6.11 |
||
|
15
|
15
3233592
Gearcase,front housing
|
3233592 |
— | ||
|
16
|
16
3233593
Bushing
|
3233593 |
— | ||
|
17
|
17
3233594 Gear,bevel 37t 7dp f |
3233594 |
US $292.48 |
||
|
18
|
18
3233595 Shaft,output,front |
3233595 |
US $142.80 |
||
|
19
|
19
3233020 Bearing |
3233020 |
US $54.18 |
||
|
20
|
20
3233554 Shim |
3233554 |
US $14.28 |
||
|
21
|
21
3233596
O-ring 225
|
3233596 |
— | ||
|
22
|
22
3233597
Gearcase,cover output
|
3233597 |
— | ||
|
23
|
23
3233248
Seal
|
3233248 |
— | ||
|
24
|
24
3233583 Shim ,450 x ,265 |
3233583 |
US $9.12 |
||
|
25
|
25
3233582 Button,thrust |
3233582 |
US $2.66 |
||
