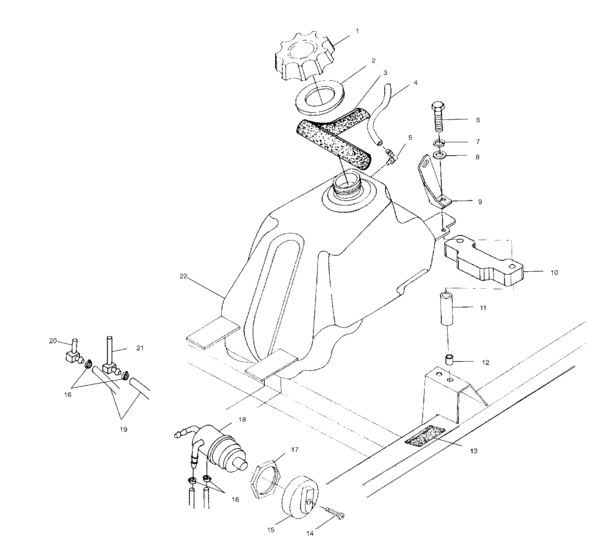

Fuel tank (A00CK42AA) Diagram Polaris XPEDITION 425
- Model code
- A00CK42AB
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5430725 Cap, gas, (black)*BLACK; |
5430725 |
US $24.08 |
||
|
2
|
2
5810144 Gasket-gas cap(10) |
5810144 |
US $2.66 |
||
|
3
|
3
5811052
Foam, seal
|
5811052 |
— | ||
|
4
|
4
8360009-600 Line,fuel,1/8 id,600 cm, |
8360009-600 |
US $27.39 |
||
|
5
|
5
5431053 Vent, tank |
5431053 |
US $10.15 |
||
|
6
|
6
7517451 Bolt |
7517451 |
US $3.75 |
||
|
7
|
7
7552801 Washer, spring lock(10)10; |
7552801 |
US $2.45 |
||
|
8
|
8
7558301 Washer, flat(10) *10; |
7558301 |
US $0.79 |
||
|
9
|
9
5222154-067
Bracket, fuel cover mount, rear, lh
|
5222154-067 |
— | ||
|
9
|
9
5222155-067
Bracket, fuel cover mount, rear, rh
|
5222155-067 |
— | ||
|
10
|
10
5811796 Foam,intake,splash |
5811796 |
US $18.32 |
||
|
11
|
11
5332457 Spacer |
5332457 |
US $12.11 |
||
|
12
|
12
7547069 Nutsert,hex10; |
7547069 |
US $3.26 |
||
|
13
|
13
5810317
Pad
|
5810317 |
— | ||
| replacement | |||||
|
13
|
13
8360026
Pad,bulk fuel
|
8360026 |
— | ||
|
14
|
14
7517505 Screw(10)10; |
7517505 |
US $1.49 |
||
|
15
|
15
5432559 Knob,fuel valve |
5432559 |
US $9.15 |
||
|
16
|
16
7080003 Clamp,hose(10)10; |
7080003 |
US $0.79 |
||
|
17
|
17
5432733 Nut,fuel valve |
5432733 |
US $2.98 |
||
|
18
|
18
7052161 Valve,3-way |
7052161 |
US $31.52 |
||
|
19
|
19
8450040-600 Line fuel,1/4 id(600 cm,)600 CM.; |
8450040-600 |
US $65.99 |
||
|
20
|
20
7052148
Fitting, fuel outlet, reserve, 90 degree
|
7052148 |
— | ||
|
21
|
21
7052147
Fitting, fuel outlet, main, 90 degree
|
7052147 |
— | ||
|
22
|
22
2520143
Asm., fuel tank
Incl. 5,20,21; |
2520143 |
— | ||
| replacement | |||||
|
22
|
22
2520174
Asm., fuel tank
Incl. 5,20,21; |
2520174 |
— | ||
