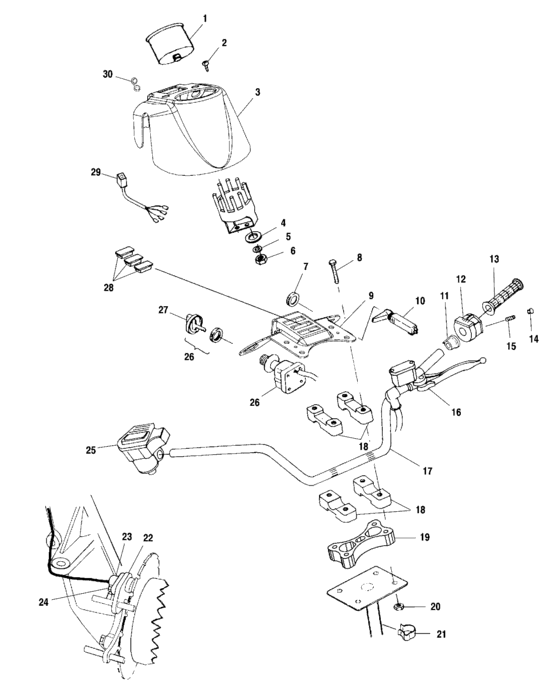

Handlebar and headlight pod (A00CK42AA) Diagram Polaris XPEDITION 425
- Model code
- A00CK42AB
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3280298
Speedometer xped 6 pulse
|
3280298 |
— | ||
| replacement | |||||
|
1
|
1
3280357
Speedometer,xped,6-pulse,asm,
|
3280357 |
— | ||
|
2
|
2
7512024 Screw10; |
7512024 |
US $2.45 |
||
|
3
|
3
5433183-070
Panel-inst black **
|
5433183-070 |
— | ||
|
4
|
4
7558212 Washer,13/64x1/2x18ga,fl-y (10) |
7558212 |
US $0.79 |
||
|
5
|
5
7555868 Washer, lock,(s,s,)S.S.;10; |
7555868 |
US $2.45 |
||
|
6
|
6
7541933 Nut10; |
7541933 |
US $2.45 |
||
|
7
|
7
7080229 Nut |
7080229 |
US $16.24 |
||
|
8
|
8
7517224
Screw
|
7517224 |
— | ||
|
9
|
9
5241698-067 Brkt,access,inst,panel,blk |
5241698-067 |
US $8.17 |
||
|
10
|
10
7080726 Cable,choke,w/adjuster |
7080726 |
US $91.60 |
||
|
11
|
11
5432926 Spacer,switch,lh |
5432926 |
US $3.26 |
||
|
12
|
12
4010262 Switch-handlebar,h/l/o,rev/or |
4010262 |
US $177.26 |
||
|
13
|
13
5431030
Grip, handlebar
|
5431030 |
— | ||
|
14
|
14
5432952 Plug,hole10; |
5432952 |
US $3.15 |
||
|
15
|
15
7517625 Screw,set |
7517625 |
US $2.98 |
||
|
17
|
17
5224715-067 Handlebar,tube,blk |
5224715-067 |
US $114.40 |
||
|
18
|
18
5630629 Block,h'bar,(300)300; |
5630629 |
US $14.28 |
||
|
19
|
19
5630633 Block,riser,300,gen 4 |
5630633 |
US $23.45 |
||
|
20
|
20
7542122 Nut-nylok(10)10; |
7542122 |
US $26.30 |
||
|
21
|
21
7080631 Clip,cable retain,(10) *10; |
7080631 |
US $9.38 |
||
|
22
|
22
4040081
Sensor,hall effect
If built before 8/09/99; |
4040081 |
— | ||
| replacement | |||||
|
22
|
22
2201625 Kit,speedo sensor lgIf built before 8/09/99; |
2201625 |
US $219.78 |
||
|
22
|
22
4010298 Sensor,hall effectIncl. 23;If built after 8/09/99; |
4010298 |
US $91.60 |
||
|
23
|
23
5132382 Cap-hall sensorUsed with 4010298 only; |
5132382 |
US $16.24 |
||
|
24
|
24
7517658 Screw |
7517658 |
US $3.75 |
||
|
26
|
26
4110264
Switch, ignition
Incl. Key; |
4110264 |
— | ||
|
26
|
26
5433733 Nut,ignition switch |
5433733 |
US $14.09 |
||
|
26
|
26
4010278 Key blank (20/21/67/68) series6700&6800 SERIES; |
4010278 |
US $12.81 |
||
|
26
|
26
4010321 Key blank (22/23/27/28) series2700&2800 SERIES; |
4010321 |
US $14.77 |
||
|
27
|
27
5433534 Key cover-keyswitch |
5433534 |
US $19.69 |
||
|
28
|
28
4040054 Indic"neut,/rev," |
4040054 |
US $25.43 |
||
|
28
|
28
4040053 Indic"hot temperature" |
4040053 |
US $34.46 |
||
|
28
|
28
5430467
Door-compartment
No Longer Available; |
5430467 |
— | ||
|
29
|
29
2460728 Harness-headlight pod |
2460728 |
US $16.24 |
||
|
30
|
30
5432420
Cover,screw,hinged,blk
|
5432420 |
— | ||
