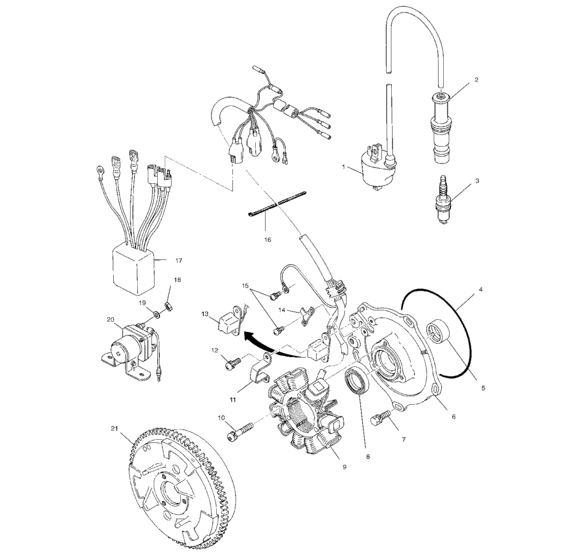

Magneto (A00CK42AA) Diagram Polaris XPEDITION 425
- Model code
- A00CK42AB
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3084690
Coil asm,ignition
Incl. 1,2; |
3084690 |
— | ||
|
1
|
1
3084979
Coil,ignition
|
3084979 |
— | ||
|
2
|
2
3084980 Cap, sparkplug * |
3084980 |
US $67.25 |
||
|
3
|
3
3070175 Sparkplug, bkr5e(4)4; |
3070175 |
US $23.60 |
||
|
4
|
4
3084978 O-ring |
3084978 |
US $24.43 |
||
|
5
|
5
3086234 Bearing,metal |
3086234 |
US $20.69 |
||
|
6
|
6
3086232
Plate asm,
Incl. 5,6,8-12,14,15; |
3086232 |
— | ||
|
6
|
6
3087140
Plate
|
3087140 |
— | ||
|
7
|
7
3081657 Bolt&washer asm, |
3081657 |
US $2.98 |
||
|
8
|
8
3084973 Seal, oil |
3084973 |
US $35.12 |
||
|
9
|
9
3086239
Stator
Incl. 13; |
3086239 |
— | ||
| replacement | |||||
|
9
|
9
3086232
Plate asm,
Incl. 13; |
3086232 |
— | ||
|
10
|
10
3081342 Screw&washer asm(10)10; |
3081342 |
US $1.49 |
||
|
11
|
11
3085554
Band, pulse
|
3085554 |
— | ||
|
12
|
12
3084976 Screw&washer asm, |
3084976 |
US $2.98 |
||
|
13
|
13
3087141
Coil, pulser
|
3087141 |
— | ||
|
14
|
14
3084977
Clamp
|
3084977 |
— | ||
|
15
|
15
3081256 Screw&washer asm(10)10; |
3081256 |
US $1.49 |
||
|
16
|
16
3083447 Band, wire |
3083447 |
US $7.09 |
||
|
17
|
17
3086235
Cdi system
|
3086235 |
— | ||
|
18
|
18
3083073 Nut |
3083073 |
US $0.79 |
||
|
19
|
19
3080077 Washer spring(10)10; |
3080077 |
US $0.79 |
||
|
20
|
20
3086236
Switch, magnetic
|
3086236 |
— | ||
|
21
|
21
3086238
Asm., magneto [incl.5,6,8-15,21
No Longer Available; |
3086238 |
— | ||
|
21
|
21
3086231
Flywheel w/ring gear
|
3086231 |
— | ||
