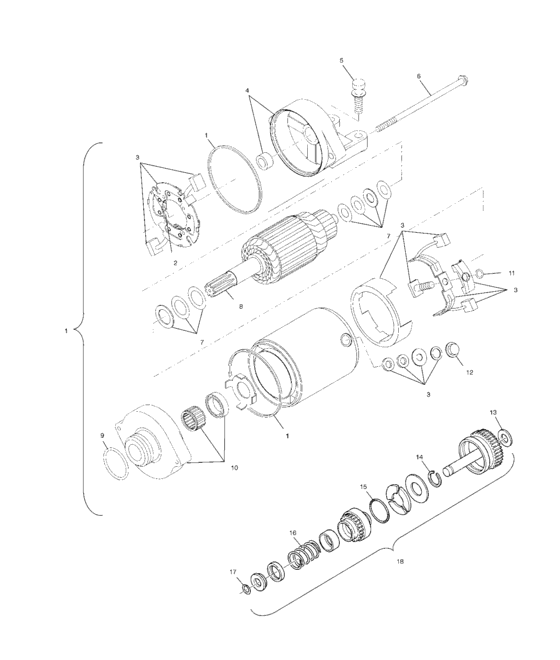

Starting motor (A00CK42AA) Diagram Polaris XPEDITION 425
- Model code
- A00CK42AB
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3086240 Starter motor asm,Incl. 1-4,6-12; |
3086240 |
US $443.15 |
||
|
1
|
1
3084405 Ring, rubber (10) |
3084405 |
US $3.75 |
||
|
2
|
2
3240111
Spring, brush
|
3240111 |
— | ||
|
3
|
3
3086242 Brush,carbon,setIncl. 2,11,12; |
3086242 |
US $83.72 |
||
|
4
|
4
3086245
Asm., rear bracket
|
3086245 |
— | ||
|
5
|
5
3083730 Asm,,bolt and washer |
3083730 |
US $2.98 |
||
|
6
|
6
3086241 Bolt,asm, |
3086241 |
US $4.73 |
||
|
7
|
7
3084982 Washer set |
3084982 |
US $19.51 |
||
|
8
|
8
3086244 Armature asm |
3086244 |
US $177.26 |
||
|
9
|
9
3240114 O-ring |
3240114 |
US $10.08 |
||
|
10
|
10
3086243 Bracket,front asmIncl. 9; |
3086243 |
US $127.05 |
||
|
11
|
11
3084408 O-ring |
3084408 |
US $9.15 |
||
|
12
|
12
3083649 Nut, flange(10)10; |
3083649 |
US $1.89 |
||
|
13
|
13
3083737
Washer
|
3083737 |
— | ||
| replacement | |||||
|
13
|
13
7555908 Washer |
7555908 |
US $5.22 |
||
|
14
|
14
3084412 Clip |
3084412 |
US $7.68 |
||
|
15
|
15
3084411 Spring, weight |
3084411 |
US $19.30 |
||
|
16
|
16
3084410 Spring, return |
3084410 |
US $3.06 |
||
|
17
|
17
3084409 Clip |
3084409 |
US $4.73 |
||
|
18
|
18
3085394
Shaft asm,gear
Incl. 13-17; |
3085394 |
— | ||
| replacement | |||||
|
18
|
18
3087030
Asm., gear shaft
Incl. 13-17; |
3087030 |
— | ||
