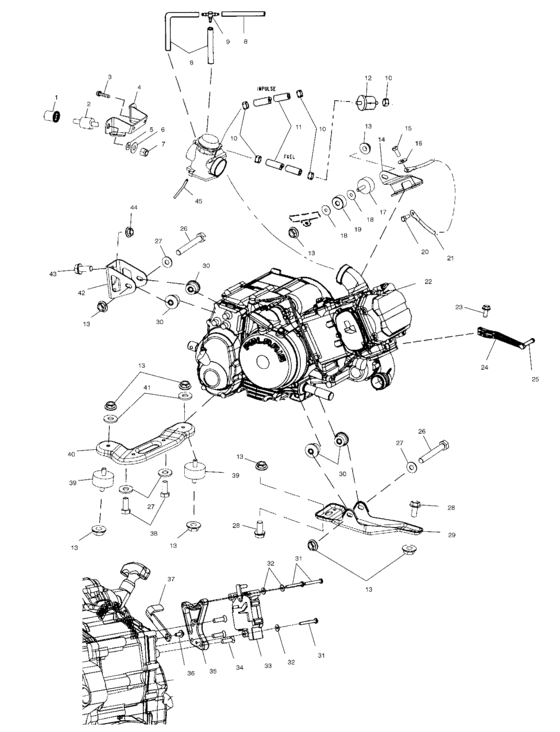

Engine mounting (A01CK42AA) Diagram Polaris XPEDITION 425
- Model code
- A01CK42AB
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7547069 Nutsert,hex10; |
7547069 |
US $3.26 |
||
|
2
|
2
3021086 Mount,rubber,carb (10) |
3021086 |
US $11.90 |
||
|
3
|
3
3084205 Asm,,screw & washer(10)10; |
3084205 |
US $5.04 |
||
|
4
|
4
5240609-067
Brkt, carb,mt,
|
5240609-067 |
— | ||
|
5
|
5
7558301 Washer, flat(10) *10; |
7558301 |
US $0.79 |
||
|
6
|
6
7552605 Washer10; |
7552605 |
US $3.92 |
||
|
7
|
7
7542105 Nut hex10; |
7542105 |
US $3.26 |
||
|
8
|
8
8450003-1525 Line,fuel,1/4 id(1525 cm,)1525 CM.; |
8450003-1525 |
US $85.45 |
||
|
9
|
9
7052075 Fitting, tee |
7052075 |
US $7.68 |
||
|
10
|
10
7080003 Clamp,hose(10)10; |
7080003 |
US $0.79 |
||
|
11
|
11
8450040-60
Line, fuel
|
8450040-60 |
— | ||
|
12
|
12
2530009 Filter,small,in-line,(10)10; |
2530009 |
US $6.56 |
||
|
13
|
13
7547108 Nut |
7547108 |
US $2.98 |
||
|
14
|
14
5242964-067 Mount,eng,top man,blk, |
5242964-067 |
US $6.11 |
||
|
15
|
15
7512315 Bolt10; |
7512315 |
US $2.98 |
||
|
16
|
16
7552901 Washer,spring lock(10)10; |
7552901 |
US $39.40 |
||
|
17
|
17
3021045
Mount-rubber,top,60 duro
|
3021045 |
— | ||
|
18
|
18
7555823 Washer10; |
7555823 |
US $6.56 |
||
|
19
|
19
5132007
Spacer-motor mnt top
|
5132007 |
— | ||
|
20
|
20
7517386 Screw(10)10; |
7517386 |
US $19.60 |
||
|
21
|
21
4010132 Cable,gnd-engine |
4010132 |
US $30.54 |
||
|
22
|
22
3085824
Engine, eh42ple04
|
3085824 |
— | ||
|
23
|
23
7512225 Screw10; |
7512225 |
US $3.26 |
||
|
24
|
24
5630960-067 Lever-shift,5-speed,blk |
5630960-067 |
US $76.81 |
||
|
25
|
25
5411364 Pad,shift pedal |
5411364 |
US $24.61 |
||
|
26
|
26
7515406 Screw10; |
7515406 |
US $9.10 |
||
|
27
|
27
7552603 Washer,spring lock(10)10; |
7552603 |
US $26.30 |
||
|
28
|
28
7517388 Screw10; |
7517388 |
US $5.22 |
||
|
29
|
29
5242905-067 Mount-engine lower,manual,blk |
5242905-067 |
US $14.28 |
||
|
30
|
30
5411575 Engine-mount rubber man |
5411575 |
US $10.15 |
||
|
31
|
31
7510504 Screw10; |
7510504 |
US $4.71 |
||
|
32
|
32
7555746
Washer
50; |
7555746 |
— | ||
| replacement | |||||
|
32
|
32
7555904 Washer50; |
7555904 |
US $0.79 |
||
|
33
|
33
4010265
Actuator-pollak,18-201-01
|
4010265 |
— | ||
|
34
|
34
7517652 Screw |
7517652 |
US $3.26 |
||
|
35
|
35
5132141 Mount,actuator,rev,mach |
5132141 |
US $30.54 |
||
|
36
|
36
7517653 Screw |
7517653 |
US $3.75 |
||
|
37
|
37
5243586-067 Lever-reverse,blk |
5243586-067 |
US $24.43 |
||
|
38
|
38
7512492 Screw(10)10; |
7512492 |
US $39.40 |
||
|
39
|
39
3110044
Mount, rubber, top
|
3110044 |
— | ||
| replacement | |||||
|
39
|
39
3024012 ISOLATOR-3/8-24M/M,60DURO |
3024012 |
US $39.38 |
||
|
40
|
40
5242984-067 Mount,5 speed lwr,rear,blk, |
5242984-067 |
US $19.30 |
||
|
41
|
41
7555806 Washer,flat(10)10; |
7555806 |
US $13.10 |
||
|
42
|
42
5242965-067
Mnt-engine top rear man,blk
|
5242965-067 |
— | ||
|
43
|
43
7515398 Screw10; |
7515398 |
US $3.75 |
||
|
44
|
44
7542321 Nut,flange(10)10; |
7542321 |
US $1.89 |
||
|
45
|
45
8360009-100
Line, fuel
|
8360009-100 |
— | ||
