Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 2460864 Harness-mainwire brake start	2460864	—
2	2 2200593 Kit,ckt,brkr,20 amp	2200593	US $45.69
3	3 7080138 Cable tie (10) 10;	7080138	US $26.30
4	4 2201795 Kit-circut breaker,fan	2201795	US $47.67
5	5 2410221 Tail light negative polar,asm, Incl. 6-11;	2410221	US $47.67
6	6 4032046 Lens,taillight	4032046	US $18.32
7	7 4032029 Screw	4032029	US $2.98
8	8 4030043 Bulb	4030043	US $4.94
9	9 4032045 Gasket	4032045	US $5.11
10	10 4032064 Backing,taillight	4032064	US $81.76
11	11 7670054 Nut, push-on (10) 10;	7670054	—
12	12 7541925 Nut, nylok 10-24 y 10;	7541925	—
13	13 7571602 Washer 10;	7571602	US $2.45
14	14 7512027 Screw(10) * 10;	7512027	US $19.60
15	15 5810290 Pad, battery	5810290	US $6.11
16	16 2200361 Kit-battery bolt (short) SHORT;	2200361	US $1.77
17	17 4010095 Cable,batt/eng,,blk,	4010095	—
18	18 7010032 Hook-battery strap(10) 10;	7010032	US $26.30
19	19 5410424 Strap, battery holddown	5410424	—
20	20 5432077 Tube,vent	5432077	US $6.11
21	21 4140006 Battery	4140006	US $275.60
22	22 5431769 Cover,battery	5431769	US $13.20
23	23 4010094 Cable,batt/solenoid,red	4010094	US $30.54
24	24 4010093 Cable,sol/starter	4010093	US $36.45
25	25 7512007 Bolt 10;	7512007	US $2.45
26	26 5810455 Pad	5810455	US $1.66
27	27 5241416 Bracket-cdi	5241416	US $7.09
28	28 7512024 Screw 10;	7512024	US $2.45
29	29 5131818 Heatsink,rect,	5131818	—
30	30 4060191 Rectifier/regulator,lr-35	4060191	—
31	31 7512018 Screw(10) 10;	7512018	US $0.79
32	32 7512017 Screw 10;	7512017	US $2.45
33	33 4020149 Clip,rosebud	4020149	US $7.88
34	34 7670109 Clip-routing	7670109	US $3.75
35	35 4020139 Clip,rosebud 10;	4020139	US $3.26

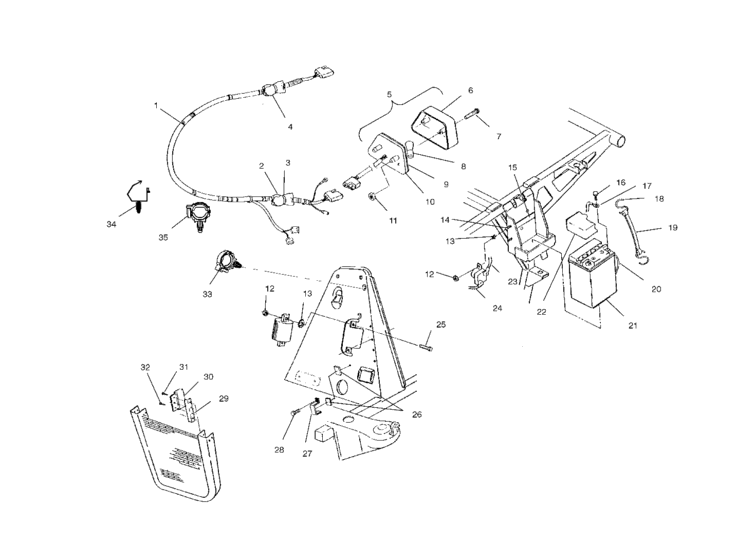

Electrical/taillight (A01CK42AA) Diagram Polaris XPEDITION 425 General 1570592-151783

Electrical/taillight (A01CK42AA) Diagram Polaris XPEDITION 425 General 1570592-151783
