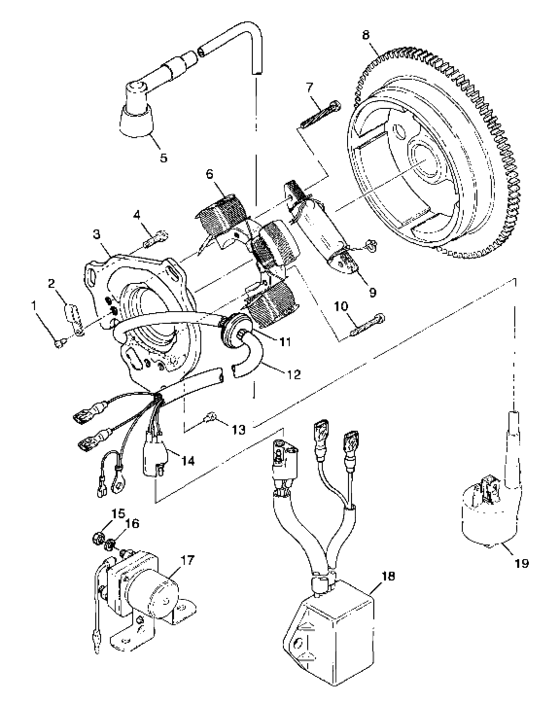

Magneto (A99CC28CA) Diagram Polaris XPLORER 300
- Model code
- A99CC28CA
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3081467
Screw
|
3081467 |
— | ||
|
2
|
2
3081296 Clamp |
3081296 |
US $6.69 |
||
|
3
|
3
3084814
Plate asm,
Incl. 1-3,6,7,9-14; |
3084814 |
— | ||
|
3
|
3
3084815
Plate,coil
|
3084815 |
— | ||
|
4
|
4
3082226 Screw and washer assy,(10)10; |
3082226 |
US $1.49 |
||
|
5
|
5
4020129 Resistor plug cap (10)10; |
4020129 |
US $11.03 |
||
|
6
|
6
3084817
Stator #1
|
3084817 |
— | ||
|
7
|
7
3081253
Screw w/washer
|
3081253 |
— | ||
|
8
|
8
3084813
Flywheel,w/ring gear
|
3084813 |
— | ||
|
9
|
9
3083422
Coil, exciting
|
3083422 |
— | ||
|
10
|
10
3084818
Screw&washer asm,
|
3084818 |
— | ||
|
11
|
11
3084819
Grommet
|
3084819 |
— | ||
|
12
|
12
3084816
Harness,wire
Incl. 11,14; |
3084816 |
— | ||
|
13
|
13
3081260 Asm,,screw&washer(10)10; |
3081260 |
US $1.89 |
||
|
14
|
14
3083909 Coupler |
3083909 |
US $14.09 |
||
|
15
|
15
3083073 Nut |
3083073 |
US $0.79 |
||
|
16
|
16
3080077 Washer spring(10)10; |
3080077 |
US $0.79 |
||
|
17
|
17
3085521
Switch, magnetic
|
3085521 |
— | ||
| replacement | |||||
|
17
|
17
4011335 Switch-magnetic |
4011335 |
US $70.26 |
||
|
18
|
18
3084820
Cdi system
|
3084820 |
— | ||
|
19
|
19
3083923
Coil, ignition *
|
3083923 |
— | ||
