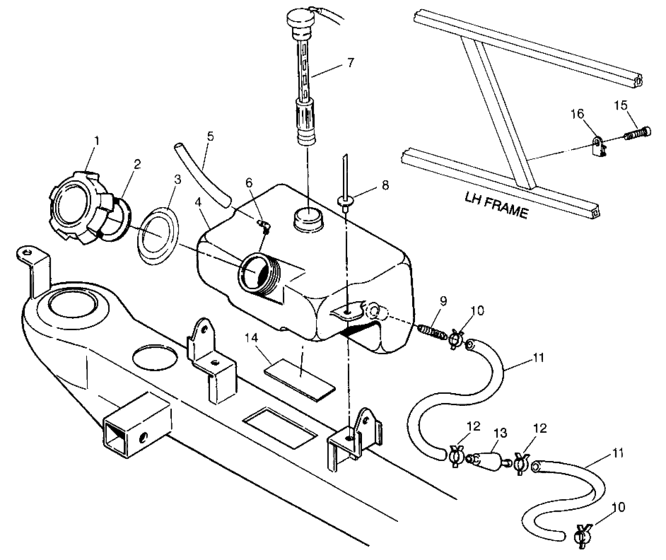

Oil tank (XPLORER 300 W969130) Diagram Polaris XPLORER 300
- Model code
- W969130
- Year
- 1996
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5430779 Cap,oil tank |
5430779 |
US $14.28 |
||
|
2
|
2
5810141 Gasket-oil cap |
5810141 |
US $2.66 |
||
|
3
|
3
5410991 Grommet,oil tank |
5410991 |
US $12.11 |
||
|
4
|
4
5431793 Tank,oil,drilled |
5431793 |
US $104.39 |
||
|
5
|
5
8360009-600 Line,fuel,1/8 id,600 cm, |
8360009-600 |
US $27.39 |
||
|
6
|
6
7052095 Fitting,90 deg,1/810; |
7052095 |
US $3.94 |
||
|
7
|
7
4110177 Sensor,oil level |
4110177 |
US $61.06 |
||
|
8
|
8
7621460 Rivet(50)50; |
7621460 |
US $3.94 |
||
|
9
|
9
7052153 Fitting,1/4 hose |
7052153 |
US $7.68 |
||
|
10
|
10
7080134
Clamp-hose
10; |
7080134 |
— | ||
|
11
|
11
8450003-1525 Line,fuel,1/4 id(1525 cm,)1525 CM.; |
8450003-1525 |
US $85.45 |
||
|
12
|
12
7080307 Clamp,hose(10)10;Large Green; |
7080307 |
US $0.79 |
||
|
13
|
13
2530009 Filter,small,in-line,(10)10; |
2530009 |
US $6.56 |
||
|
14
|
14
8360026
Pad,bulk fuel
|
8360026 |
— | ||
|
15
|
15
7511866 Screw10; |
7511866 |
US $2.45 |
||
|
16
|
16
7080526
Mount,tie anchor
10; |
7080526 |
— |
