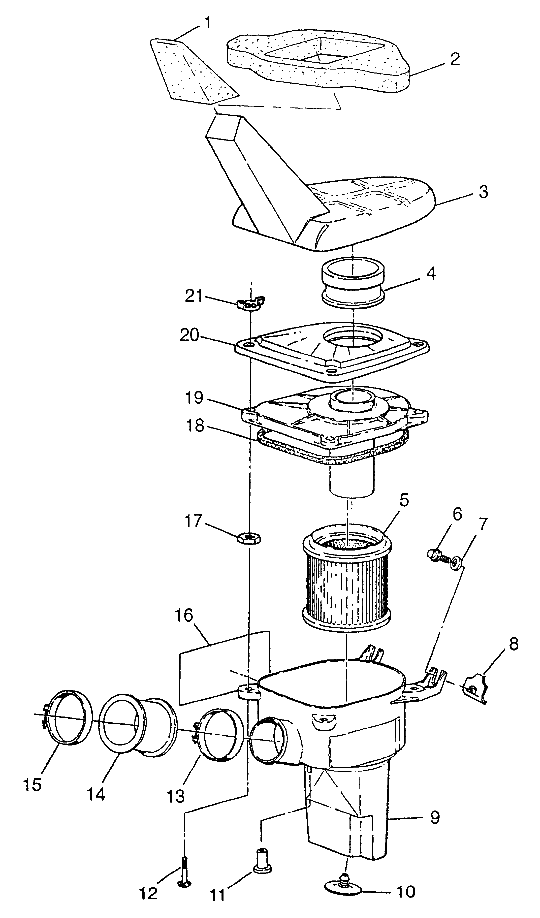

Air box (XPLORER 300 W97CC28C) Diagram Polaris XPLORER 300
- Model code
- W97CC28C
- Year
- 1997
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5810444 Foam, air filter(10)10; |
5810444 |
US $13.79 |
||
|
2
|
2
5810441
Seal, foam
|
5810441 |
— | ||
|
3
|
3
5432245
Box, air silencer
|
5432245 |
— | ||
|
4
|
4
5410506
Boot, air silencer
|
5410506 |
— | ||
|
5
|
5
7080369 Filter, air |
7080369 |
US $29.54 |
||
|
6
|
6
7512246
Bolt
10; |
7512246 |
— | ||
|
7
|
7
7558302 Washer,wrought10; |
7558302 |
US $2.45 |
||
|
8
|
8
7670060 Nut, speed10; |
7670060 |
US $1.49 |
||
|
9
|
9
5431124
Box, air intake*
Incl. 16; |
5431124 |
— | ||
|
10
|
10
5410549
Valve, umbrella
|
5410549 |
— | ||
|
11
|
11
5410529
Bushing
|
5410529 |
— | ||
|
12
|
12
7512275 Bolt-carriage10; |
7512275 |
US $2.45 |
||
|
13
|
13
7080413 Clamp,band,narrow (10) |
7080413 |
US $3.75 |
||
|
14
|
14
5411159
Boot,carb,30mm
|
5411159 |
— | ||
|
15
|
15
7080140
Clamp
10; |
7080140 |
— | ||
|
16
|
16
5810310
Tape, foil
|
5810310 |
— | ||
|
17
|
17
7670080 Palnut10; |
7670080 |
US $2.98 |
||
|
18
|
18
5410510
Seal,cover,air
|
5410510 |
— | ||
|
19
|
19
5430884
Cover,air intake
|
5430884 |
— | ||
|
20
|
20
5220980
Retainer,cover
|
5220980 |
— | ||
|
21
|
21
7542127 Nut,wing(10)10; |
7542127 |
US $1.89 |
