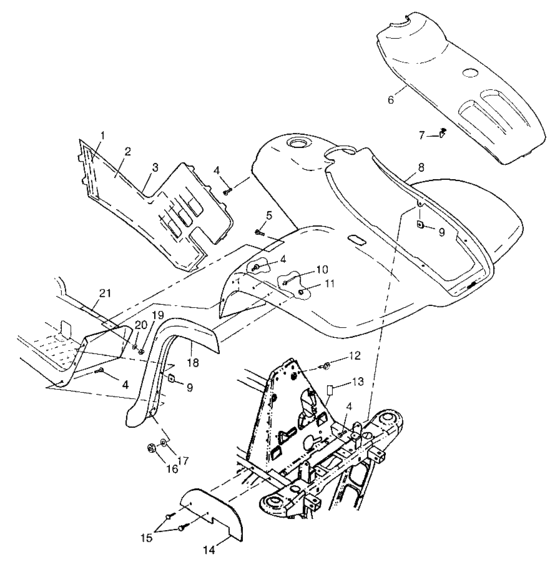

Front cab (XPLORER 300 W97CC28C) Diagram Polaris XPLORER 300
- Model code
- W97CC28C
- Year
- 1997
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5811491 Foil-rh |
5811491 |
US $4.34 |
||
|
2
|
2
5811210
Foil,foam,sidepanel(300)
300; |
5811210 |
— | ||
|
3
|
3
2620096-195
Panel asm,rh,eb green
Incl. Foil & Foam; |
2620096-195 |
— | ||
|
3
|
3
5431809-195
Panel,lh,side,e.b.grn.
|
5431809-195 |
— | ||
|
4
|
4
7512232 Bolt(10)10; |
7512232 |
US $26.30 |
||
|
5
|
5
7512085
Screw
10; |
7512085 |
— | ||
| replacement | |||||
|
5
|
5
7511989
Screw
10; |
7511989 |
— | ||
|
6
|
6
5431806-195 Cover,fr,e,b,grn, |
5431806-195 |
US $142.80 |
||
|
7
|
7
7670085 Clip,spring(10)10; |
7670085 |
US $1.77 |
||
|
8
|
8
2631739-195
Cab asm,fr,e.b.grn.
Incl. Warning Decals; |
2631739-195 |
— | ||
| replacement | |||||
|
8
|
8
2632303-195
Cab,front,svc,e,b, green
Incl. Warning Decals; |
2632303-195 |
— | ||
|
9
|
9
7670057 Nut, speed(10) *10; |
7670057 |
US $2.63 |
||
|
10
|
10
7661645 Rivet(50) *50; |
7661645 |
US $1.89 |
||
|
11
|
11
7670009 Palnut(10)10; |
7670009 |
US $0.79 |
||
|
12
|
12
7080409 Clamp,wire routing10; |
7080409 |
US $2.98 |
||
|
13
|
13
7074819
Decal,caution,"fan"
|
7074819 |
— | ||
|
14
|
14
5811489
Shield,deflector
|
5811489 |
— | ||
| replacement | |||||
|
14
|
14
5811917 Shield-deflector |
5811917 |
US $9.15 |
||
|
15
|
15
7670088 Clip,plastic dart,nylon10; |
7670088 |
US $2.45 |
||
|
16
|
16
7542122 Nut-nylok(10)10; |
7542122 |
US $26.30 |
||
|
17
|
17
7555931
Washer
10; |
7555931 |
— | ||
| replacement | |||||
|
17
|
17
7558221 Washer(10)10; |
7558221 |
US $0.79 |
||
|
18
|
18
5431799
Mudguard,rh,frt.blk.
|
5431799 |
— | ||
| replacement | |||||
|
18
|
18
5431799-070 Guard-mudflap,front,black,rh |
5431799-070 |
US $56.14 |
||
|
18
|
18
5431798
Mudguard,lh,frt.blk.
|
5431798 |
— | ||
| replacement | |||||
|
18
|
18
5431798-070 Guard-mudflap,front,black,lh |
5431798-070 |
US $56.14 |
||
|
19
|
19
7541929
Nut, lock
10; |
7541929 |
— | ||
| replacement | |||||
|
19
|
19
7541925
Nut, nylok 10-24 y
10; |
7541925 |
— | ||
|
20
|
20
7555792 Washer10; |
7555792 |
US $2.45 |
||
