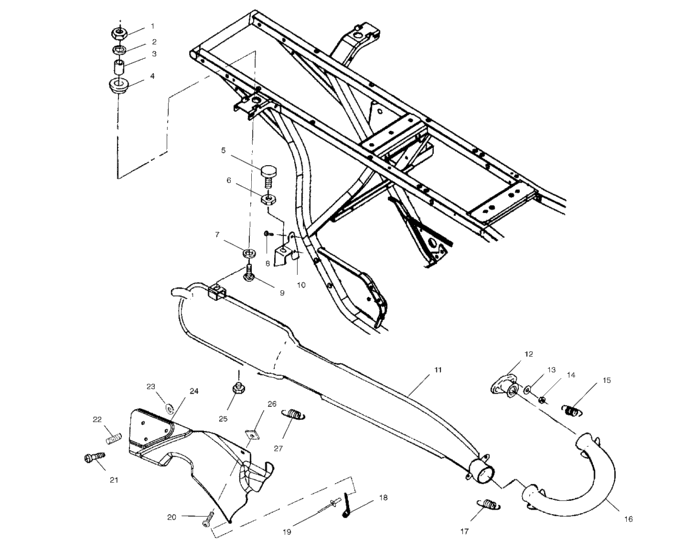

Exhaust system (A01AG25CA) Diagram Polaris XPLORER
- Model code
- A01AG25CA
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7542324 Nut,nylok(10)10; |
7542324 |
US $26.30 |
||
|
2
|
2
7555716 Washer10; |
7555716 |
US $2.45 |
||
|
3
|
3
5010192 Bushing |
5010192 |
US $4.94 |
||
|
4
|
4
5410241
Dampener, vibration
|
5410241 |
— | ||
|
5
|
5
3110064
Mount, torque stop
|
3110064 |
— | ||
|
6
|
6
7542301 Nut hex10; |
7542301 |
US $2.45 |
||
|
7
|
7
5410436 Washer,rubber (10) |
5410436 |
US $1.89 |
||
|
8
|
8
7512232 Bolt(10)10; |
7512232 |
US $26.30 |
||
|
9
|
9
7515316 Bolt10; |
7515316 |
US $2.98 |
||
|
10
|
10
5243199-067
Brkt-exhaust mount,xpl 400,blk
|
5243199-067 |
— | ||
|
10
|
10
7547101 Nutsert-5/16-18(,027-,150),hxy.027-.150; |
7547101 |
US $7.68 |
||
|
11
|
11
1261022-029 Muffler/spark arrester,bk |
1261022-029 |
US $622.37 |
||
|
12
|
12
1260922-029 Manifold-blk, ** |
1260922-029 |
US $48.83 |
||
|
15
|
15
7042029 Spring(10)10; |
7042029 |
US $2.17 |
||
|
16
|
16
1261060-029
Headpipe,blk
|
1261060-029 |
— | ||
|
17
|
17
7042031
Spring, exhaust
10; |
7042031 |
— | ||
|
18
|
18
5244130-067 Brkt,exhaust shield,xpl250,blk |
5244130-067 |
US $9.15 |
||
|
19
|
19
7621462 Rivet(50)50; |
7621462 |
US $1.89 |
||
|
20
|
20
7517264 Screw (10) |
7517264 |
US $1.89 |
||
|
21
|
21
7515140 Screw(10) *10; |
7515140 |
US $0.79 |
||
|
22
|
22
7542152 Insert, steel10; |
7542152 |
US $7.68 |
||
|
23
|
23
7555923 Washer10; |
7555923 |
US $3.75 |
||
|
24
|
24
1260995
Shield,exhaust,xplorer
Inc. Foam/Foil; |
1260995 |
— | ||
| replacement | |||||
|
24
|
24
1261086
Shield,exhaust,gen 2,asm.
Inc. Foam/Foil; |
1261086 |
— | ||
|
24
|
24
5811849
Foam,foil,heat shield
|
5811849 |
— | ||
|
25
|
25
7512666 Bolt10; |
7512666 |
US $3.75 |
||
|
26
|
26
7670060 Nut, speed10; |
7670060 |
US $1.49 |
||
|
27
|
27
7041769 Spring-extension,2,90" free lg |
7041769 |
US $17.33 |
||
