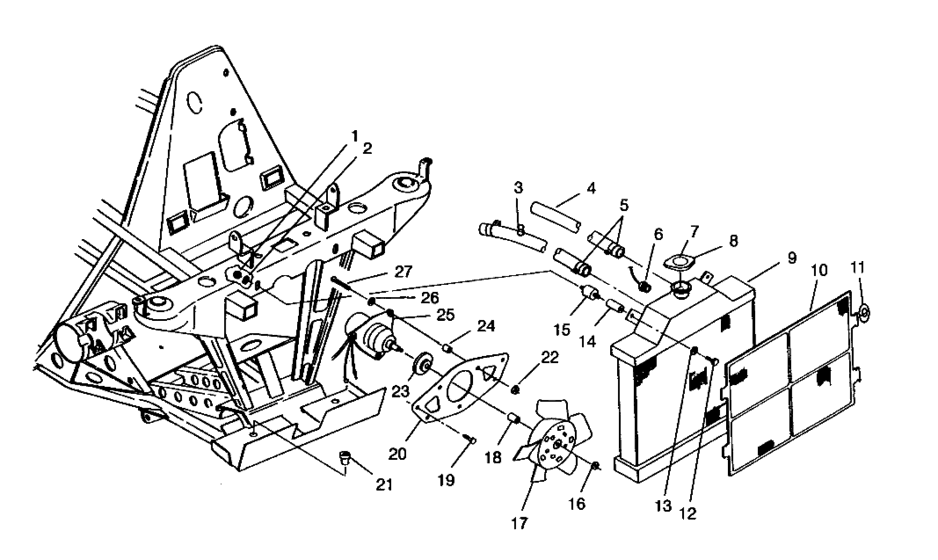

Cooling system (XPLORER 4X4 W959140) Diagram Polaris XPLORER
- Model code
- W959140
- Year
- 1995
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
1
|
1
7542122 Nut-nylok(10)10; |
7542122 |
US $26.30 |
||
2
|
2
7558301 Washer, flat(10) *10; |
7558301 |
US $0.79 |
||
3
|
3
5410572
Hose,lower engine
|
5410572 |
— | ||
replacement | |||||
3
|
3
5411173 Hose,lower engine |
5411173 |
US $86.68 |
||
4
|
4
5410570 Hose,eng,upper |
5410570 |
US $33.50 |
||
5
|
5
7080225
Clamp-hose
|
7080225 |
— | ||
replacement | |||||
5
|
5
7080547
Clamp,worm drive
|
7080547 |
— | ||
6
|
6
4110178
Switch,thermal fan
|
4110178 |
— | ||
7
|
7
7073068
Decal,rad.cap
CPSC; |
7073068 |
— | ||
8
|
8
2511189
Cap, radiator
|
2511189 |
— | ||
replacement | |||||
8
|
8
2511270 Cap, pressure,(13 lb) *** |
2511270 |
US $22.45 |
||
9
|
9
1240015
Radiator,"u"flow
|
1240015 |
— | ||
10
|
10
5431760
Cover,radiator,w/mesh
|
5431760 |
— | ||
11
|
11
5410607 O ring (10) |
5410607 |
US $1.89 |
||
12
|
12
7512113 Bolt10; |
7512113 |
US $2.45 |
||
13
|
13
7552605 Washer10; |
7552605 |
US $3.92 |
||
14
|
14
5020572 Spacer, mount |
5020572 |
US $8.17 |
||
15
|
15
3110032 Mount, rubber (10) |
3110032 |
US $5.11 |
||
16
|
16
3083952
Nut (10)
|
3083952 |
— | ||
17
|
17
5240822 Blade, fan |
5240822 |
US $70.89 |
||
18
|
18
3083950
Bushing
|
3083950 |
— | ||
19
|
19
7512232 Bolt(10)10; |
7512232 |
US $26.30 |
||
20
|
20
5222559-067
Brkt,cooling fan
|
5222559-067 |
— | ||
replacement | |||||
20
|
20
5224741-067
Brkt,cool,fan,blk
|
5224741-067 |
— | ||
21
|
21
5410584
Bushing-mount,lower radiator
|
5410584 |
— | ||
22
|
22
7541915 Nut10; |
7541915 |
US $2.28 |
||
23
|
23
3083951
Cover
|
3083951 |
— | ||
24
|
24
5333073 Spacer, fan brkt, |
5333073 |
US $4.73 |
||
25
|
25
2410006
Motor, fan
|
2410006 |
— | ||
replacement | |||||
25
|
25
4170009 Motor,fan,liq,cooled |
4170009 |
US $410.83 |
||
26
|
26
7558201 Washer, flat10; |
7558201 |
US $2.92 |
||
27
|
27
7511874
Screw
10; |
7511874 |
— |
