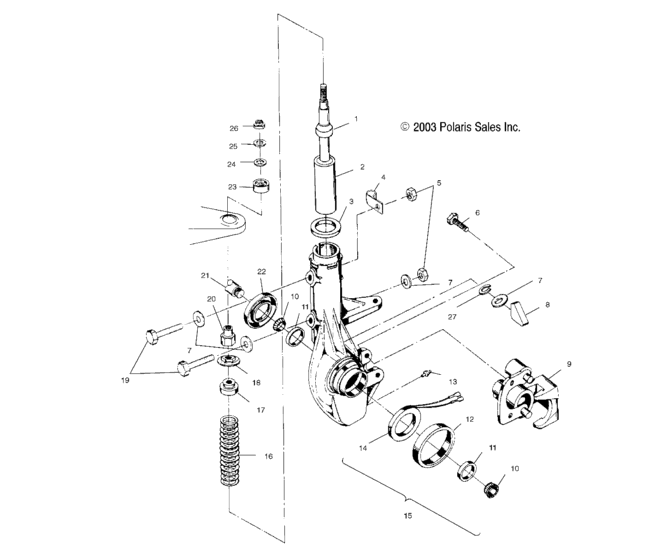

Front strut (A00AG25CA) Diagram Polaris XPLORER
- Model code
- A00AG25CA
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
1
|
1
5411608
Bumper
|
5411608 |
— | ||
2
|
2
7041761 Strut-front,18x30mm,153,8mm st |
7041761 |
US $200.31 |
||
3
|
3
5211115 Washer(10)10; |
5211115 |
US $1.89 |
||
4
|
4
7080573 Clamp,rubber-coated,,56210; |
7080573 |
US $5.22 |
||
5
|
5
7542303 Nut flex-loc10; |
7542303 |
US $5.22 |
||
6
|
6
7512365 Screw, cap(10)10; |
7512365 |
US $1.49 |
||
7
|
7
7558402 Washer,flat(10)10; |
7558402 |
US $18.70 |
||
8
|
8
5810439
Retainer,wire,strut cast
|
5810439 |
— | ||
10
|
10
3554509 Bearing,tapered roller |
3554509 |
US $23.64 |
||
11
|
11
3554507 Brg,taper,roll cup |
3554507 |
US $33.50 |
||
12
|
12
5222193 Sleeve,strut hub seal |
5222193 |
US $60.22 |
||
13
|
13
7080306 Fitting,lube,w/ball ck,(10)10; |
7080306 |
US $91.90 |
||
14
|
14
2410133
Coil, magnetic
|
2410133 |
— | ||
replacement | |||||
14
|
14
2201313 Hub/coil(kit) |
2201313 |
US $122.12 |
||
15
|
15
2201311
Hubstrut,svc,brn/wht,42,lh
Incl. 8,11-14,22; |
2201311 |
— | ||
15
|
15
2201312
Hubstrut,svc,brn/wht,42,rh
Incl. 8,11-14,22; |
2201312 |
— | ||
16
|
16
7041873-067 Spring-comp,55-105#/in,blk |
7041873-067 |
US $58.12 |
||
17
|
17
5243364 Retainer-spring |
5243364 |
US $19.69 |
||
18
|
18
5430807
Pivot ball,bottom
|
5430807 |
— | ||
replacement | |||||
18
|
18
5432871 Pivot,ball,bottom |
5432871 |
US $9.85 |
||
19
|
19
7515339 Bolt10; |
7515339 |
US $3.26 |
||
20
|
20
5132062 Spacer-1/2-20 |
5132062 |
US $19.69 |
||
22
|
22
3610028 Seal, hub strut |
3610028 |
US $30.10 |
||
23
|
23
5430806
Pivot ball, top
|
5430806 |
— | ||
replacement | |||||
23
|
23
5432872 Pivot,ball,top |
5432872 |
US $9.85 |
||
24
|
24
5810291 Spacer, rubber (10) |
5810291 |
US $3.75 |
||
25
|
25
7555749 Washer(10)10; |
7555749 |
US $1.89 |
||
26
|
26
7547104 Nut (10) |
7547104 |
US $1.89 |
||
27
|
27
7552901 Washer,spring lock(10)10; |
7552901 |
US $39.40 |
