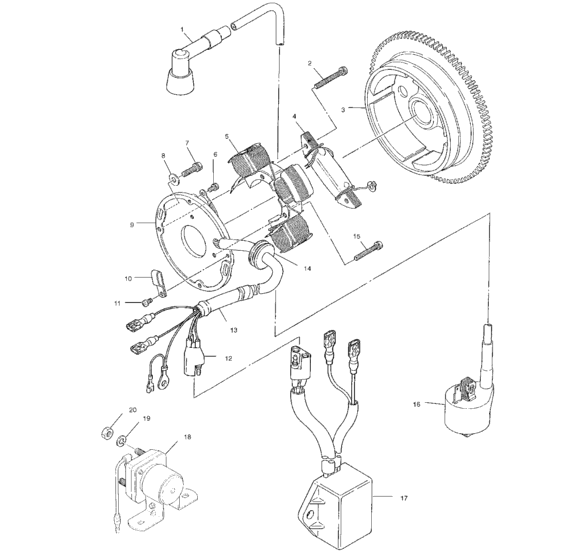

Magneto (A00AG25CA) Diagram Polaris XPLORER
- Model code
- A00AG25CA
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4020129 Resistor plug cap (10)10; |
4020129 |
US $11.27 |
||
|
2
|
2
3083423 Asm,,screw & washer |
3083423 |
US $1.49 |
||
|
3
|
3
3083939 Flywheel,w/ring gear |
3083939 |
US $627.27 |
||
|
4
|
4
3083422
Coil, exciting
|
3083422 |
— | ||
|
5
|
5
3083976 Coil,light(stator 1)STATOR 1; |
3083976 |
US $162.51 |
||
|
6
|
6
3081256 Screw&washer asm(10)10; |
3081256 |
US $1.49 |
||
|
7
|
7
3086788 Screw & washer |
3086788 |
US $1.77 |
||
|
8
|
8
3086789
Washer
|
3086789 |
— | ||
| replacement | |||||
|
8
|
8
3083357 Washer |
3083357 |
US $2.98 |
||
|
9
|
9
3083634 Plate, coil |
3083634 |
US $91.60 |
||
|
9
|
9
3083979
Plate asm,
Incl. 2,4,5,6,9-15; |
3083979 |
— | ||
|
10
|
10
3081296 Clamp |
3081296 |
US $6.69 |
||
|
11
|
11
3081260 Asm,,screw&washer(10)10; |
3081260 |
US $1.89 |
||
|
12
|
12
3083909 Coupler |
3083909 |
US $14.09 |
||
|
13
|
13
3083978 Harness, wireIncl. 12,14; |
3083978 |
US $170.94 |
||
|
14
|
14
3083773
Grommet
|
3083773 |
— | ||
|
15
|
15
3083736 Screw&washer asm,(10)10; |
3083736 |
US $1.89 |
||
|
16
|
16
3083923
Coil, ignition *
|
3083923 |
— | ||
|
17
|
17
3083977 Cdi unit * |
3083977 |
US $244.79 |
||
|
18
|
18
3085521
Switch, magnetic
|
3085521 |
— | ||
| replacement | |||||
|
18
|
18
4011335 Switch-magnetic |
4011335 |
US $70.26 |
||
|
19
|
19
3080077 Washer spring(10)10; |
3080077 |
US $0.79 |
||
|
20
|
20
3083073 Nut |
3083073 |
US $0.79 |
||
