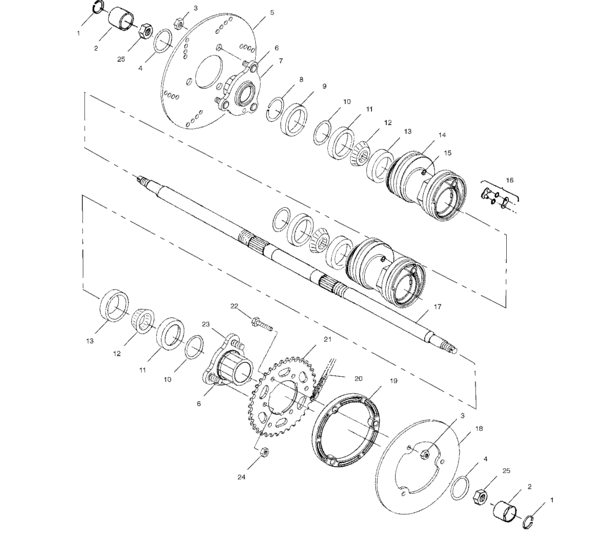

Rear housing (A02CG38CA) Diagram Polaris XPLORER 400
- Model code
- A02CG38CA
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
1
|
1
7710472 Ring,retaining |
7710472 |
US $3.94 |
||
2
|
2
5510313 Extrusion,retainer,nut |
5510313 |
US $36.24 |
||
3
|
3
7542439 Nut,nylok(10) |
7542439 |
US $3.94 |
||
4
|
4
5411555 Seal,foam |
5411555 |
US $10.85 |
||
5
|
5
5243679 Disc,brk,8,0 od,,188 |
5243679 |
US $64.02 |
||
6
|
6
7515513 Stud(10) * |
7515513 |
US $5.25 |
||
7
|
7
1520259
Hub asm,brk,disc,locking
Incl. 6; |
1520259 |
— | ||
8
|
8
7710405 Ring, snap(10) |
7710405 |
US $3.75 |
||
9
|
9
5010462 Spacer,axle |
5010462 |
US $24.43 |
||
10
|
10
5410889 O ring (10) |
5410889 |
US $66 |
||
11
|
11
3610070 Seal,lip |
3610070 |
US $19.69 |
||
12
|
12
3554518 Bearing,cone,tapered |
3554518 |
US $49.23 |
||
13
|
13
3554517 Bearing,cup,tapered |
3554517 |
US $17.73 |
||
14
|
14
5132098 Housing-axle,rear(mach) |
5132098 |
US $156.99 |
||
15
|
15
7080306 Fitting,lube,w/ball ck,(10) |
7080306 |
US $91.90 |
||
16
|
16
3225027
Link, connector, 520 regina
|
3225027 |
— | ||
17
|
17
5133181 Axle-rear,cds * |
5133181 |
US $344.66 |
||
18
|
18
5211585-067 Guard,38t spkt,blk,alum, |
5211585-067 |
US $130.76 |
||
19
|
19
5630586
Spacer-sprocket guard
|
5630586 |
— | ||
20
|
20
3221111-076
Chain, 520 o-ring
|
3221111-076 |
— | ||
21
|
21
3222109 Spkt,36t,r,axle* |
3222109 |
US $137.38 |
||
22
|
22
7512404 Bolt |
7512404 |
US $3.26 |
||
23
|
23
1520258 Hub asm,spkt,lockingIncl. 6; |
1520258 |
US $104.39 |
||
24
|
24
7547108 Nut |
7547108 |
US $2.98 |
||
25
|
25
7547196 Nut-1,297-18 thd-y |
7547196 |
US $23.17 |
