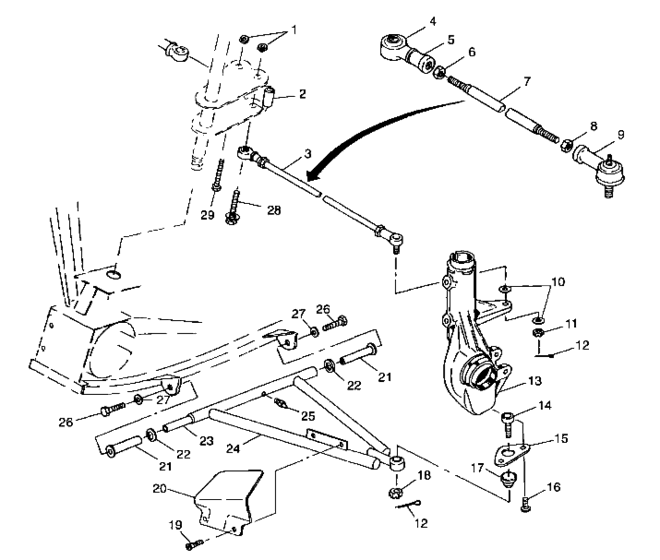

A-arm/strut mounting (A99CG38CA) Diagram Polaris XPLORER 400
- Model code
- A99CG38CA
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7542403 Nut lock(10)10; |
7542403 |
US $3.75 |
||
|
2
|
2
5333367 Bushing |
5333367 |
US $8.17 |
||
|
3
|
3
1820567
Tierod asm,1/2-20x13.40
Incl. 4-9; |
1820567 |
— | ||
| replacement | |||||
|
3
|
3
2201741 Tie rod,kit,13,4,4x4Incl. 4-9; |
2201741 |
US $162.51 |
||
|
4
|
4
5411291
Boot, seal
|
5411291 |
— | ||
| replacement | |||||
|
4
|
4
5412928 Boot-seal,rod end,1/2 in |
5412928 |
US $11.81 |
||
|
5
|
5
7061034
Rod end, rh
|
7061034 |
— | ||
| replacement | |||||
|
5
|
5
7061139 Rod-end,3/8,1/2-20rh,44deg |
7061139 |
US $59.06 |
||
|
6
|
6
7542711 Nut-jam(10)10; |
7542711 |
US $0.79 |
||
|
7
|
7
5020926 Rod,tie |
5020926 |
US $35.67 |
||
|
8
|
8
7547028
Nut,jam,lh(10)
10; |
7547028 |
— | ||
|
9
|
9
7061033
Rod end,lh
|
7061033 |
— | ||
| replacement | |||||
|
9
|
9
2201743 Rod end,kit,10mm outer ** |
2201743 |
US $51.21 |
||
|
10
|
10
7555806 Washer,flat(10)10; |
7555806 |
US $13.10 |
||
|
11
|
11
7546904 Nut, castle(10)10; |
7546904 |
US $3.26 |
||
|
12
|
12
7661203 Pin,cotter(10)10; |
7661203 |
US $26.30 |
||
|
14
|
14
7080673
Joint, ball
|
7080673 |
— | ||
| replacement | |||||
|
14
|
14
7080927
Joint, ball
|
7080927 |
— | ||
|
15
|
15
5211121 Brkt, ball joint |
5211121 |
US $34.46 |
||
|
16
|
16
7512284 Bolt, socket(10)10; |
7512284 |
US $1.96 |
||
|
17
|
17
5410548
Boot, rubber
|
5410548 |
— | ||
| replacement | |||||
|
17
|
17
5412658 Boot-balljoint,greaseless,strt |
5412658 |
US $6.56 |
||
|
18
|
18
7542438 Nut, castle(10)10; |
7542438 |
US $2.63 |
||
|
19
|
19
7512084 Screw(10)10; |
7512084 |
US $19.60 |
||
|
20
|
20
5431150
Shield,lh cv joint
|
5431150 |
— | ||
| replacement | |||||
|
20
|
20
5431150-070
Shield-cv joint,lh,blk
|
5431150-070 |
— | ||
|
20
|
20
5431149
Shield,rh cv joint
|
5431149 |
— | ||
| replacement | |||||
|
20
|
20
5431149-070 Shield-cv joint,rh,blk |
5431149-070 |
US $19.30 |
||
|
21
|
21
5431596
Bushing,a-arm,long.
|
5431596 |
— | ||
| replacement | |||||
|
21
|
21
5433066
Bushing, a-arm, long
|
5433066 |
— | ||
|
22
|
22
5020677 Bushing,a-arm spacer(10)10; |
5020677 |
US $118.10 |
||
|
23
|
23
5020681
Shaft, a-arm
|
5020681 |
— | ||
|
24
|
24
2201157
Kit,lh,a frame
|
2201157 |
— | ||
| replacement | |||||
|
24
|
24
2201603
New Genuine Part
|
2201603 |
— | ||
|
24
|
24
2201158
Kit,rh,a frame
|
2201158 |
— | ||
| replacement | |||||
|
24
|
24
2201604
New Genuine Part
|
2201604 |
— | ||
|
25
|
25
7080433 Fitting,lubrication,threaded(1010; |
7080433 |
US $5.25 |
||
|
26
|
26
7512492 Screw(10)10; |
7512492 |
US $39.40 |
||
|
27
|
27
7552603 Washer,spring lock(10)10; |
7552603 |
US $26.30 |
||
|
28
|
28
7517527 Bolt10; |
7517527 |
US $14.09 |
||
|
29
|
29
7515415 Screw(10)10; |
7515415 |
US $1.49 |
||
