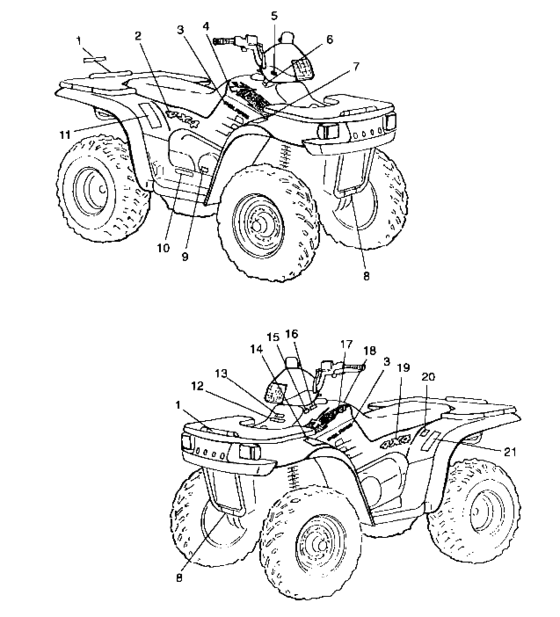

Decals (A99CG38CA) Diagram Polaris XPLORER 400
- Model code
- A99CG38CA
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7074954
Decal,rear deck
|
7074954 |
— | ||
|
2
|
2
7077779
Decal-"4x4" side panel,rh
|
7077779 |
— | ||
|
3
|
3
7077780
Decal-"polaris",side panel
|
7077780 |
— | ||
|
4
|
4
7077782
Decal-tank side,rh
|
7077782 |
— | ||
|
5
|
5
7078003
Decal-headlight adjustment
|
7078003 |
— | ||
|
6
|
6
7074935
Decal - warning, awd switch
|
7074935 |
— | ||
|
7
|
7
7078354
Decal-disc warn,atv
|
7078354 |
— | ||
|
8
|
8
7078045
Decal, "liquid cooled", radiator
|
7078045 |
— | ||
|
9
|
9
7075741
Decal,drain recoil
|
7075741 |
— | ||
| replacement | |||||
|
9
|
9
7078577
Decal,drain recoil
|
7078577 |
— | ||
|
10
|
10
7077791
Decal-concentric drive system
|
7077791 |
— | ||
|
11
|
11
7074110 Decal,load dist,(4 whl,)4 WHL.; |
7074110 |
US $18.76 |
||
|
12
|
12
7078019
Decal-"400 l/c",fr.cover
|
7078019 |
— | ||
|
13
|
13
7077765
Decal-"polaris madeinusa"dome
|
7077765 |
— | ||
|
14
|
14
7077919 Decal,gen.warningCPSC; |
7077919 |
US $13.14 |
||
|
15
|
15
7076202
Decal,ce regul,96
|
7076202 |
— | ||
|
16
|
16
7076273
Decal,o'ride sw,(awd)
AWD; |
7076273 |
— | ||
|
17
|
17
7077781
Decal-tank side,lh
|
7077781 |
— | ||
|
18
|
18
7078253
Decal, age warning
|
7078253 |
— | ||
|
19
|
19
7077778
Decal-"4x4" side panel,lh
|
7077778 |
— | ||
|
20
|
20
7077920
Decal, passenger warning
|
7077920 |
— | ||
|
21
|
21
7074750
Decal,tire press(425-4x4)
425-4X4; |
7074750 |
— | ||
