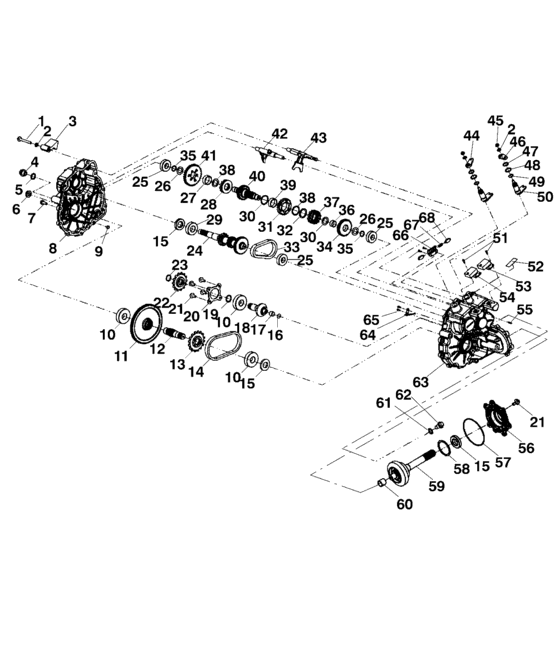

Gearcase (A99CG38CA) Diagram Polaris XPLORER 400
- Model code
- A99CG38CA
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3233525
Screw
|
3233525 |
— | ||
|
2
|
2
3233054 Washer |
3233054 |
US $3.26 |
||
|
3
|
3
3233526
Dampener,carb,vibration
|
3233526 |
— | ||
|
4
|
4
3233448 Plug |
3233448 |
US $17.54 |
||
|
5
|
5
3233035 Washer |
3233035 |
US $4.53 |
||
|
6
|
6
3233527 Bushing,pivot |
3233527 |
US $18.20 |
||
|
7
|
7
3233252 Screw |
3233252 |
US $8.87 |
||
|
8
|
8
3233632
Gearcase, lh
|
3233632 |
— | ||
|
9
|
9
3233529 Pipe,knock |
3233529 |
US $8.52 |
||
|
10
|
10
3233020 Bearing |
3233020 |
US $54.18 |
||
|
11
|
11
3233558 Gear,98t,hcr, |
3233558 |
US $262.96 |
||
|
12
|
12
3233544 Shaft,output |
3233544 |
US $210.14 |
||
|
13
|
13
3233545 Sprocket,16/26t |
3233545 |
US $61.06 |
||
|
14
|
14
3233546 Chain,roller |
3233546 |
US $65.99 |
||
|
15
|
15
3233248
Seal
|
3233248 |
— | ||
|
16
|
16
3233542 Washer,thrust |
3233542 |
US $7.68 |
||
|
17
|
17
3233541 Bushing,garlock |
3233541 |
US $30.19 |
||
|
18
|
18
3233540 Shaft,pinion,13t |
3233540 |
US $196.95 |
||
|
19
|
19
3233306 Ring,retaining |
3233306 |
US $2.45 |
||
|
20
|
20
3233263 Cover-bearing |
3233263 |
US $12.20 |
||
|
21
|
21
3233539 Screw |
3233539 |
US $14.09 |
||
|
22
|
22
3233538 Sprocket,14/22t |
3233538 |
US $65.99 |
||
|
23
|
23
3233537 Ring,retaining |
3233537 |
US $3.57 |
||
|
24
|
24
3233704
Shaft-input high/low/reverse
|
3233704 |
— | ||
|
25
|
25
3233018 Bearing |
3233018 |
US $29.54 |
||
|
26
|
26
3233176 Washer |
3233176 |
US $7.68 |
||
|
27
|
27
3233009 Bearing,needle |
3233009 |
US $42.35 |
||
|
28
|
28
3233666
Engagement-dog,low
|
3233666 |
— | ||
|
29
|
29
3233019 Bearing |
3233019 |
US $39.38 |
||
|
30
|
30
3233010 Washer |
3233010 |
US $15.26 |
||
|
31
|
31
3233532
Sprocket,24t,12-point
|
3233532 |
— | ||
|
32
|
32
3233029 Ring,retaining |
3233029 |
US $3.75 |
||
|
33
|
33
3233036 Chain,silent,34p |
3233036 |
US $65.99 |
||
|
34
|
34
3233535
Gear,30t,12-point
|
3233535 |
— | ||
|
35
|
35
3233177 Ring,retaining |
3233177 |
US $3.75 |
||
|
36
|
36
3233534
Bushing,garlock
|
3233534 |
— | ||
|
37
|
37
3233533 Dog,engage,12pt,hi/rev |
3233533 |
US $74.36 |
||
|
38
|
38
3233012 Washer |
3233012 |
US $15.26 |
||
|
39
|
39
3233014 Bearing,needle |
3233014 |
US $48.72 |
||
|
40
|
40
3233703
Shaft-reverse,31t
|
3233703 |
— | ||
|
41
|
41
3233665
Gear,33t
|
3233665 |
— | ||
|
42
|
42
3233706 Shift fork-low |
3233706 |
US $147.72 |
||
|
43
|
43
3233633 Fork,shift,high/rev |
3233633 |
US $142.80 |
||
|
44
|
44
3233547 Bellcrank |
3233547 |
US $28.58 |
||
|
45
|
45
3233055
Nut
|
3233055 |
— | ||
|
46
|
46
3233153 Bellcrank |
3233153 |
US $19.30 |
||
|
47
|
47
3233045 Ring,retaining |
3233045 |
US $3.26 |
||
|
48
|
48
3233040 Washer |
3233040 |
US $7.68 |
||
|
49
|
49
3233548 O-ring |
3233548 |
US $14.58 |
||
|
50
|
50
3233549 Shaft,shift |
3233549 |
US $73.87 |
||
|
51
|
51
3233691
Screw
|
3233691 |
— | ||
| replacement | |||||
|
51
|
51
3233749 Screw |
3233749 |
US $2.45 |
||
|
52
|
52
3233636 Decal-switch |
3233636 |
US $3.26 |
||
|
53
|
53
3233635
Switch, 3 position
|
3233635 |
— | ||
|
54
|
54
3233617
Switch
|
3233617 |
— | ||
|
55
|
55
3233037 Vent |
3233037 |
US $6.41 |
||
|
56
|
56
3233556 Cover,snorkel |
3233556 |
US $38.61 |
||
|
57
|
57
3233555 O-ring |
3233555 |
US $7.09 |
||
|
58
|
58
3233554 Shim |
3233554 |
US $14.28 |
||
|
59
|
59
3233553
Gear,snorkel
|
3233553 |
— | ||
|
60
|
60
3233552 Bushing,garlock |
3233552 |
US $21.49 |
||
|
61
|
61
3233324 Washer |
3233324 |
US $3.26 |
||
|
62
|
62
3233325
Dipstick
PLUG; |
3233325 |
— | ||
| replacement | |||||
|
62
|
62
3233711 Plug,oil fillPLUG; |
3233711 |
US $20.69 |
||
|
63
|
63
3233705
Gearcase
|
3233705 |
— | ||
| replacement | |||||
|
63
|
63
3233751
New Genuine Part
|
3233751 |
— | ||
|
64
|
64
3233043 Deflector,oil |
3233043 |
US $16.24 |
||
|
65
|
65
3233033
Screw
|
3233033 |
— | ||
| replacement | |||||
|
65
|
65
3233747 Screw-tapping,w/lock washer |
3233747 |
US $2.45 |
||
|
66
|
66
3233309 Bracket,interlock |
3233309 |
US $25.43 |
||
|
67
|
67
3233032 Spring |
3233032 |
US $8.17 |
||
|
68
|
68
3233308 Pin,interlock |
3233308 |
US $20.69 |
||
