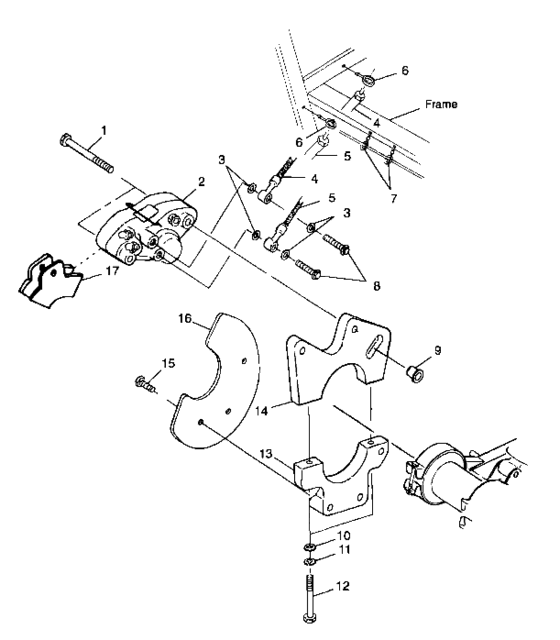

Rear caliper mounting (A99CG38CA) Diagram Polaris XPLORER 400
- Model code
- A99CG38CA
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7517231 Screw10; |
7517231 |
US $9.19 |
||
|
2
|
2
1910270
Caliper asm,r.brake,ww
|
1910270 |
— | ||
| replacement | |||||
|
2
|
2
1910367
Caliper asm.brake,dh2p
|
1910367 |
— | ||
|
2
|
2
2201385 Seal,kit,ww caliper,1910270 |
2201385 |
US $59.10 |
||
|
2
|
2
2201428 Bleeder replacement,kit |
2201428 |
US $30.54 |
||
|
2
|
2
2201467 Piston-rr caliper,dh2p |
2201467 |
US $93.52 |
||
|
3
|
3
5410988
Seal
|
5410988 |
— | ||
|
4
|
4
1930873
Line,rear handbrake
|
1930873 |
— | ||
|
5
|
5
1930872
Line,rear footbrake
|
1930872 |
— | ||
|
6
|
6
4020139 Clip,rosebud10; |
4020139 |
US $3.26 |
||
|
7
|
7
7670102 Clip10; |
7670102 |
US $5.25 |
||
|
8
|
8
1930674
Bolt, banjo
|
1930674 |
— | ||
|
9
|
9
5131759 Bushing,caliper mt, |
5131759 |
US $20.28 |
||
|
10
|
10
7558402 Washer,flat(10)10; |
7558402 |
US $18.70 |
||
|
11
|
11
7552901 Washer,spring lock(10)10; |
7552901 |
US $39.40 |
||
|
12
|
12
7512312 Bolt(10) *10; |
7512312 |
US $1.49 |
||
|
13
|
13
5131786 Mt,lwr,caliper,axle |
5131786 |
US $61.06 |
||
|
14
|
14
5131979
Mount-caliper,axle,upper(mach)
MACH; |
5131979 |
— | ||
|
15
|
15
7512325 Bolt10; |
7512325 |
US $5.25 |
||
|
16
|
16
5243134-067 Guard-brake disc,rear axle,blk |
5243134-067 |
US $20.28 |
||
|
17
|
17
2201189
Kit,rear,brakepad,med,duty
Incl. Spacer, Pad; |
2201189 |
— | ||
