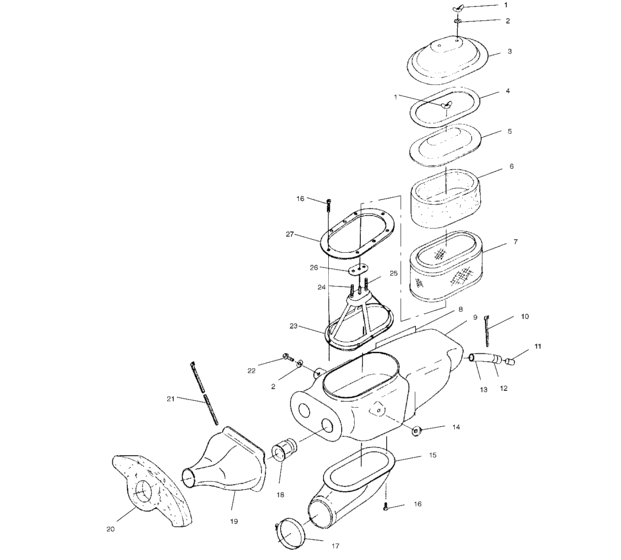

Air box (A00CG38CA) Diagram Polaris XPLORER 400
- Model code
- A00CG38CA
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7542127 Nut,wing(10)10; |
7542127 |
US $1.89 |
||
|
2
|
2
7558301 Washer, flat(10) *10; |
7558301 |
US $0.79 |
||
|
3
|
3
5240424
Cover,air box
|
5240424 |
— | ||
|
4
|
4
5810948
Gasket,cover
|
5810948 |
— | ||
|
5
|
5
5240336
Cover, air box
|
5240336 |
— | ||
|
6
|
6
5811099 Foam,precleaner,sleeve |
5811099 |
US $12.99 |
||
|
7
|
7
1253118 Filter,air |
1253118 |
US $34.46 |
||
|
8
|
8
5810966 Foil, airbox |
5810966 |
US $19.30 |
||
|
9
|
9
5432883
Box,air silencer
|
5432883 |
— | ||
|
10
|
10
7080483
Cable tie,4 inch
10; |
7080483 |
— | ||
|
11
|
11
7080487 Cap, plug10; |
7080487 |
US $1.89 |
||
|
12
|
12
7080476 Clamp, hose, s,s,10; |
7080476 |
US $9.10 |
||
|
13
|
13
8450051-600
Line, fuel
|
8450051-600 |
— | ||
| replacement | |||||
|
13
|
13
2871058
Hose,25ft.x 3/8``i.d.
|
2871058 |
— | ||
|
14
|
14
7555932 Washer,nylon |
7555932 |
US $2.98 |
||
|
15
|
15
5411413 Boot,carb,400 hybrid |
5411413 |
US $32.52 |
||
|
16
|
16
7511881 Screw(10)10; |
7511881 |
US $26.30 |
||
|
17
|
17
7080643
Clamp,notched
10; |
7080643 |
— | ||
|
18
|
18
5431698
Ventura,intake
|
5431698 |
— | ||
|
19
|
19
5410934
Boot,air silencer
|
5410934 |
— | ||
|
20
|
20
5810988 Foam, seal |
5810988 |
US $19.30 |
||
|
21
|
21
7080598 Cable tie,21,25 inch10; |
7080598 |
US $5.11 |
||
|
22
|
22
7515180
Screw
10; |
7515180 |
— | ||
|
23
|
23
5432607 Stand,filter |
5432607 |
US $28.37 |
||
|
24
|
24
7515150 Stud10; |
7515150 |
US $5.22 |
||
|
25
|
25
7515151 Stud10; |
7515151 |
US $5.22 |
||
|
26
|
26
5811012 Seal,foam,airbox |
5811012 |
US $9.85 |
||
|
27
|
27
5211804
Plate,air box
|
5211804 |
— | ||
