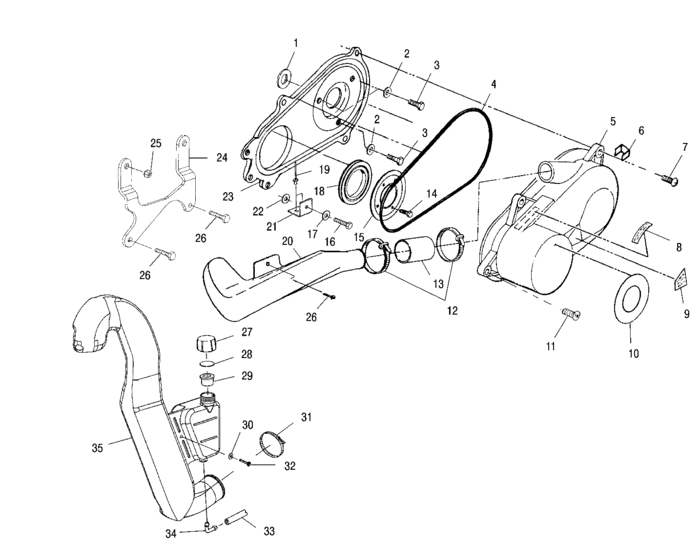

Clutch cover (A00CG38CA) Diagram Polaris XPLORER 400
- Model code
- A00CG38CA
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5411554
Seal,clutch cvr,inner
|
5411554 |
— | ||
|
2
|
2
7555748 Washer10; |
7555748 |
US $2.45 |
||
|
3
|
3
7517542 Screw10; |
7517542 |
US $7.68 |
||
|
4
|
4
5521301 Seal,outer,clutch cover |
5521301 |
US $23.64 |
||
|
5
|
5
5433542 Cover-clutch,front,rtp |
5433542 |
US $186.85 |
||
|
6
|
6
7670051 Clip,clutch cover(10)10; |
7670051 |
US $1.89 |
||
|
7
|
7
7512093 Screw(10)10; |
7512093 |
US $1.49 |
||
|
8
|
8
7078689
Decal, warning, clutch cover
|
7078689 |
— | ||
|
9
|
9
7077377
Decal,eng/clutch mod.
|
7077377 |
— | ||
| replacement | |||||
|
9
|
9
7078689
Decal, warning, clutch cover
|
7078689 |
— | ||
|
10
|
10
7074782
Decal,auto,transmission
|
7074782 |
— | ||
|
11
|
11
7512094 Screw(10) *10; |
7512094 |
US $39.40 |
||
|
12
|
12
7080492 Cable tie,11 inch10; |
7080492 |
US $3.64 |
||
|
13
|
13
5410421 Boot,clutch intake |
5410421 |
US $9.85 |
||
|
15
|
15
5222446-067
Brkt,retainer,seal
|
5222446-067 |
— | ||
|
16
|
16
7512098 Screw (10) * |
7512098 |
US $1.89 |
||
|
17
|
17
7555935 Washer10; |
7555935 |
US $3.26 |
||
|
18
|
18
5410575
Seal, cover case
|
5410575 |
— | ||
|
19
|
19
7661638 Rivet,interlock,b(50)50; |
7661638 |
US $0.79 |
||
|
20
|
20
5432615
Duct,air out,clutch
|
5432615 |
— | ||
|
21
|
21
5242693-067
Bracket, clutch cover, front
|
5242693-067 |
— | ||
|
22
|
22
7555932 Washer,nylon |
7555932 |
US $2.98 |
||
|
23
|
23
2201159 Cover,clutch inner 400Incl. 4,7,11,16,18; |
2201159 |
US $117.20 |
||
|
24
|
24
5242208-067
Brkt,clutch,low,blk
|
5242208-067 |
— | ||
|
25
|
25
7547067 Nutsert,hex |
7547067 |
US $7.68 |
||
|
26
|
26
7512232 Bolt(10)10; |
7512232 |
US $26.30 |
||
|
27
|
27
5430743 Cap, overflow |
5430743 |
US $3.26 |
||
|
28
|
28
5810279 Gasket (10) |
5810279 |
US $2.66 |
||
|
29
|
29
5431895
Plug,cap
|
5431895 |
— | ||
| replacement | |||||
|
29
|
29
5433774 Cap,plug9x(grn),flex temp(10) |
5433774 |
US $3.26 |
||
|
30
|
30
7555783 Washer,flat10; |
7555783 |
US $2.45 |
||
|
31
|
31
7080511 Clamp, narrow band10; |
7080511 |
US $1.75 |
||
|
32
|
32
7512018 Screw(10)10; |
7512018 |
US $0.79 |
||
|
33
|
33
8450003-1525 Line,fuel,1/4 id(1525 cm,)1525 CM.; |
8450003-1525 |
US $85.45 |
||
|
34
|
34
7052065 Fitting,90 degree (10) |
7052065 |
US $9.85 |
||
|
35
|
35
5433342
Duct,clutch inlet,hybrid
|
5433342 |
— | ||
