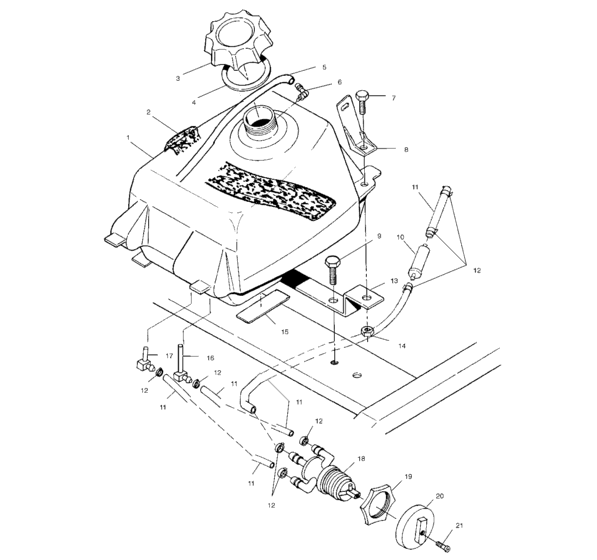

Fuel tank (A00CG38CA) Diagram Polaris XPLORER 400
- Model code
- A00CG38CA
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1240048
Fuel tank,w/ fittings
Incl. 6,16,17;If built before 8/16/99; |
1240048 |
— | ||
| replacement | |||||
|
1
|
1
1240082
Asm., fuel tank
Incl. 6,16,17;If built before 8/16/99; |
1240082 |
— | ||
|
1
|
1
1240082
Asm., fuel tank
Incl. 6,16,17;If built after 8/16/99; |
1240082 |
— | ||
|
2
|
2
5811052
Foam, seal
|
5811052 |
— | ||
|
3
|
3
5430725 Cap, gas, (black)*BLACK; |
5430725 |
US $24.08 |
||
|
4
|
4
5810144 Gasket-gas cap(10) |
5810144 |
US $2.66 |
||
|
5
|
5
8360009-600 Line,fuel,1/8 id,600 cm, |
8360009-600 |
US $27.39 |
||
|
6
|
6
5431053 Vent, tank |
5431053 |
US $10.15 |
||
|
7
|
7
7512310 Screw(10)10; |
7512310 |
US $0.79 |
||
|
8
|
8
5222154-067
Bracket, fuel cover mount, rear, lh
|
5222154-067 |
— | ||
|
8
|
8
5222155-067
Bracket, fuel cover mount, rear, rh
|
5222155-067 |
— | ||
|
9
|
9
7512208 Screw10; |
7512208 |
US $3.26 |
||
|
10
|
10
2530008 Filter fuel,(10)10; |
2530008 |
US $5.04 |
||
|
11
|
11
8450040-600 Line fuel,1/4 id(600 cm,)600 CM.; |
8450040-600 |
US $65.99 |
||
|
12
|
12
7080003 Clamp,hose(10)10; |
7080003 |
US $0.79 |
||
|
13
|
13
5220916-067
Brkt,r,tank mt,blk,
|
5220916-067 |
— | ||
|
14
|
14
7542324 Nut,nylok(10)10; |
7542324 |
US $26.30 |
||
|
15
|
15
8360026
Pad,bulk fuel
|
8360026 |
— | ||
|
16
|
16
7052147
Fitting, fuel outlet, main, 90 degree
|
7052147 |
— | ||
|
17
|
17
7052148
Fitting, fuel outlet, reserve, 90 degree
|
7052148 |
— | ||
|
18
|
18
7052154 Valve,3-way,horiz ports |
7052154 |
US $35.67 |
||
|
19
|
19
5432733 Nut,fuel valve |
5432733 |
US $2.98 |
||
|
20
|
20
5432559 Knob,fuel valve |
5432559 |
US $9.15 |
||
|
21
|
21
7517505 Screw(10)10; |
7517505 |
US $1.49 |
||
