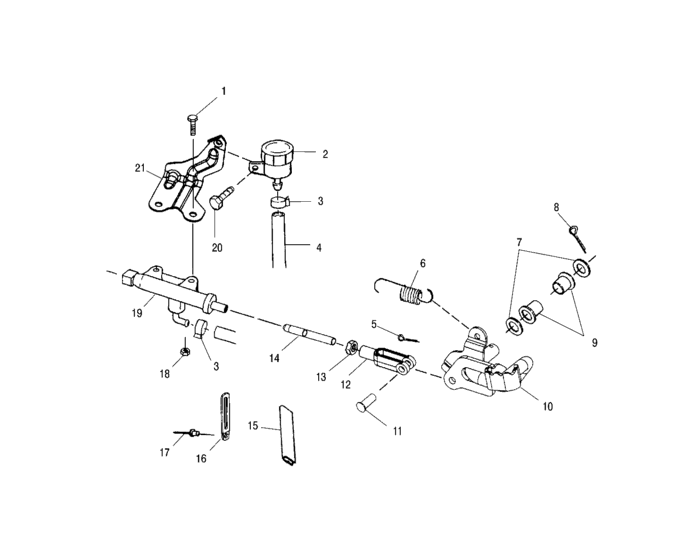

Rear brake master cylinder (A00CG38CA) Diagram Polaris XPLORER 400
- Model code
- A00CG38CA
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7512247 Bolt(10) *10; |
7512247 |
US $0.79 |
||
|
2
|
2
1930854 Reservoir asm,r,brake |
1930854 |
US $27.58 |
||
|
3
|
3
7080003 Clamp,hose(10)10; |
7080003 |
US $0.79 |
||
|
4
|
4
1910331 Hose-reservoir,hb |
1910331 |
US $6.11 |
||
|
5
|
5
7661011 Pin, cotter10; |
7661011 |
US $7.88 |
||
|
6
|
6
7041769 Spring-extension,2,90" free lg |
7041769 |
US $17.33 |
||
|
7
|
7
7555919 Washer10; |
7555919 |
US $6.21 |
||
|
8
|
8
7661401 Pin,cotter(10)10; |
7661401 |
US $3.94 |
||
|
9
|
9
5431107
Bushing, pedal pivot
|
5431107 |
— | ||
|
10
|
10
1012771-067 Footbrake,hybrid,gen4,blk |
1012771-067 |
US $59.10 |
||
|
11
|
11
7661843
Pin-clevis, 1/4 x 3/4 -y
10; |
7661843 |
— | ||
|
12
|
12
7080644
Clevis,threaded
|
7080644 |
— | ||
|
13
|
13
7542129 Nut10; |
7542129 |
US $2.45 |
||
|
14
|
14
1910314
Plunger,brake,hybrid
Incl. 12,13; |
1910314 |
— | ||
|
15
|
15
8360012-04
Edge trim-black,04 cm
|
8360012-04 |
— | ||
|
16
|
16
7080654 Retainer,ss, |
7080654 |
US $22.73 |
||
|
17
|
17
7661638 Rivet,interlock,b(50)50; |
7661638 |
US $0.79 |
||
|
18
|
18
7542122 Nut-nylok(10)10; |
7542122 |
US $26.30 |
||
|
19
|
19
1930899 Master cyl,asm,footbrake |
1930899 |
US $187.11 |
||
|
20
|
20
7512208 Screw10; |
7512208 |
US $3.26 |
||
|
21
|
21
5243220-067
Brkt-reservoir mount,blk
|
5243220-067 |
— | ||
| replacement | |||||
|
21
|
21
5244091-067 Brkt,reservoir mnt,blk |
5244091-067 |
US $7.09 |
||
