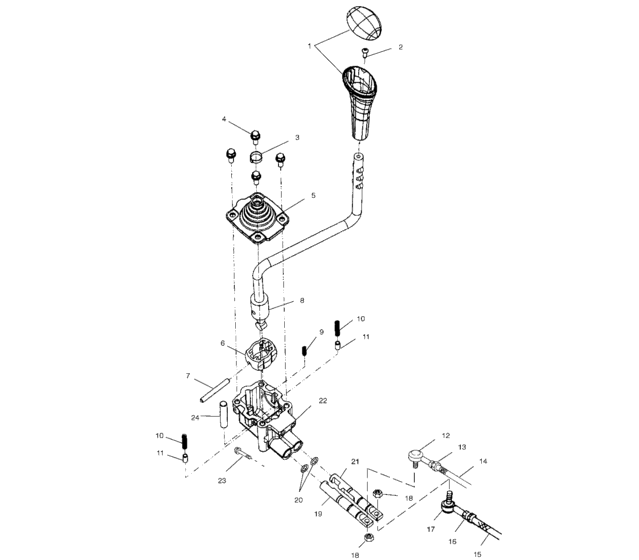

Gear selector (A01CG38CA) Diagram Polaris XPLORER 400
- Model code
- A01CG38CA
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3233195
Asm., knob, hi/lo/rev.
|
3233195 |
— | ||
| replacement | |||||
|
1
|
1
3233195-070 Gear select knob,hlr,black,asm, |
3233195-070 |
US $28.58 |
||
|
2
|
2
7512024 Screw10; |
7512024 |
US $2.45 |
||
|
3
|
3
3233131 Strap, wire |
3233131 |
US $9.15 |
||
|
4
|
4
3233649 Screw |
3233649 |
US $1.77 |
||
|
5
|
5
3233648 Cover-gear selector boot |
3233648 |
US $18.73 |
||
|
6
|
6
3233646 Plastic-sphere |
3233646 |
US $6.41 |
||
|
7
|
7
3233645
Pin, groove
|
3233645 |
— | ||
| replacement | |||||
|
7
|
7
3233754 Pin-dowel |
3233754 |
US $3.94 |
||
|
8
|
8
3233647
Gear,selector,rod,sub asm,
|
3233647 |
— | ||
|
9
|
9
3233643 Spring-centering |
3233643 |
US $5.09 |
||
|
10
|
10
3233642 Spring-detent |
3233642 |
US $8.66 |
||
|
11
|
11
3233060 Bullet,detent |
3233060 |
US $14.28 |
||
|
12
|
12
7061013 Rod end,lh,6mm. |
7061013 |
US $89.79 |
||
|
13
|
13
7546702 Nut(10)10; |
7546702 |
US $1.49 |
||
|
14
|
14
5020743 Rod,shift linkage 13,78" |
5020743 |
US $40.58 |
||
|
15
|
15
5132042
Rod-shift linkage,,31x11,75
|
5132042 |
— | ||
|
16
|
16
7546701 Nut(10)10; |
7546701 |
US $1.49 |
||
|
17
|
17
7061014 Rod end,rh,6mm. |
7061014 |
US $89.79 |
||
|
18
|
18
7546707
Nut
10; |
7546707 |
— | ||
| replacement | |||||
|
18
|
18
7546703
Nut,nylok
10; |
7546703 |
— | ||
|
19
|
19
3233639
Slide-low
|
3233639 |
— | ||
|
20
|
20
3233076 O-ring |
3233076 |
US $8.17 |
||
|
21
|
21
3233640
Slide-high/rev
|
3233640 |
— | ||
|
22
|
22
3233641 Gear,selector,body |
3233641 |
US $100.63 |
||
|
23
|
23
7512232 Bolt(10)10; |
7512232 |
US $26.30 |
||
|
24
|
24
3233644 Pin-dowel |
3233644 |
US $3.94 |
||
