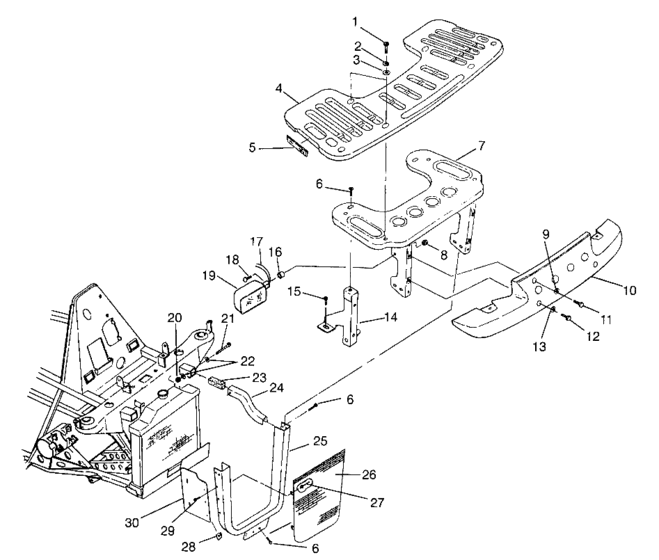

Front rack and bumper mounting (XPLORER 400L W969140) Diagram Polaris XPLORER 400L
- Model code
- W969140
- Year
- 1996
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7512279 Screw(10) *10; |
7512279 |
US $0.79 |
||
|
2
|
2
7555843
Washer, flat
10; |
7555843 |
— | ||
| replacement | |||||
|
2
|
2
7558302 Washer,wrought10; |
7558302 |
US $2.45 |
||
|
3
|
3
7552605 Washer10; |
7552605 |
US $3.92 |
||
|
4
|
4
2670180
Asm., front rack
Incl. 5 & Decal; |
2670180 |
— | ||
| replacement | |||||
|
4
|
4
2670180-070 Rack,front,blk **Incl. 5 & Decal; |
2670180-070 |
US $254.08 |
||
|
5
|
5
2670071
Reflector amber
|
2670071 |
— | ||
|
6
|
6
7515399 Screw(10) *10; |
7515399 |
US $6.13 |
||
|
7
|
7
2200775
Kit, front rack mount
|
2200775 |
— | ||
|
8
|
8
7542327 Nut, nylok10; |
7542327 |
US $2.45 |
||
|
9
|
9
7555955
Washer
10; |
7555955 |
— | ||
| replacement | |||||
|
9
|
9
7558403 Washer,wrought10; |
7558403 |
US $2.45 |
||
|
10
|
10
5432155-070 Bumper,blk |
5432155-070 |
US $152.65 |
||
|
11
|
11
7515391 Bolt(10) *10; |
7515391 |
US $1.89 |
||
|
12
|
12
7515390
Bolt
10; |
7515390 |
— | ||
|
13
|
13
7555954 Washer10; |
7555954 |
US $2.45 |
||
|
14
|
14
1040554-067
Support,lh,f.rack
|
1040554-067 |
— | ||
| replacement | |||||
|
14
|
14
1013210-067 Support,frt,rack,lh,blk |
1013210-067 |
US $86.64 |
||
|
14
|
14
1040555-067
Support,rh,f.rack
|
1040555-067 |
— | ||
| replacement | |||||
|
14
|
14
1013211-067 Support,frt, rack,rh,blk |
1013211-067 |
US $102.39 |
||
|
15
|
15
7512232 Bolt(10)10; |
7512232 |
US $26.30 |
||
|
16
|
16
5020809
Spacer,h/l,blk,
|
5020809 |
— | ||
|
17
|
17
2460513
Harness,jumper,lo-beam
|
2460513 |
— | ||
|
18
|
18
7515333 Bolt10; |
7515333 |
US $1.89 |
||
|
19
|
19
4032074
H/l,asm,rh(37,5 watt)
37.5 WATT; |
4032074 |
— | ||
|
19
|
19
4032082
H/l,asm,lh(37,5 watt)
37.5 WATT; |
4032082 |
— | ||
|
19
|
19
4030048 Bulb 37w |
4030048 |
US $25.74 |
||
|
20
|
20
7542324 Nut,nylok(10)10; |
7542324 |
US $26.30 |
||
|
21
|
21
7515384
Bolt(10)
10; |
7515384 |
— | ||
|
22
|
22
7558402 Washer,flat(10)10; |
7558402 |
US $18.70 |
||
|
23
|
23
5810467 Plug, frame |
5810467 |
US $6.60 |
||
|
24
|
24
5241398-067
Extension,lh,frame,blk,
|
5241398-067 |
— | ||
|
24
|
24
5241399-067
Extension,rh,frame,blk,
|
5241399-067 |
— | ||
|
25
|
25
5241583-067
Guard,brush,blk
|
5241583-067 |
— | ||
|
26
|
26
5240591-067 Grill,brushguard,blk, |
5240591-067 |
US $94.52 |
||
|
27
|
27
7621330 Rivet, pop(50)50; |
7621330 |
US $0.79 |
||
|
28
|
28
7670094 Nut10; |
7670094 |
US $3.75 |
||
|
29
|
29
7512097 Screw(10)10; |
7512097 |
US $1.49 |
||
|
30
|
30
5431815
Shield,rh radiator
|
5431815 |
— | ||
|
30
|
30
5431814
Shield,lh radiator **
|
5431814 |
— | ||
