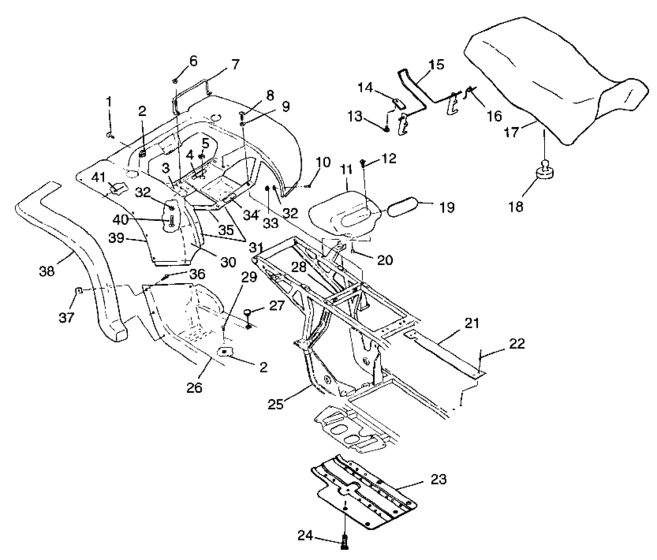

Rear cab and seat (XPLORER 400L W97CC38C) Diagram Polaris XPLORER 400L
- Model code
- W97CC38C
- Year
- 1997
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7517264 Screw (10) |
7517264 |
US $1.89 |
||
|
2
|
2
7542122 Nut-nylok(10)10; |
7542122 |
US $26.30 |
||
|
3
|
3
5811107 Foil,rear |
5811107 |
US $5.11 |
||
|
4
|
4
7073761 Decal,carb,info, |
7073761 |
US $1.89 |
||
|
5
|
5
5411042
Grommet
|
5411042 |
— | ||
|
6
|
6
7541925
Nut, nylok 10-24 y
10; |
7541925 |
— | ||
|
7
|
7
5224592 Retainer,seat latch |
5224592 |
US $47.25 |
||
|
8
|
8
7515180
Screw
10; |
7515180 |
— | ||
|
9
|
9
7555859 Washer, flat(10)10; |
7555859 |
US $39.40 |
||
|
10
|
10
7512085
Screw
10; |
7512085 |
— | ||
| replacement | |||||
|
10
|
10
7511989
Screw
10; |
7511989 |
— | ||
|
11
|
11
5431786 Toolbox |
5431786 |
US $65.99 |
||
|
12
|
12
7517375
Screw
|
7517375 |
— | ||
| replacement | |||||
|
12
|
12
7555748 Washer |
7555748 |
US $2.45 |
||
|
13
|
13
7621403 Blind rivet(50)50; |
7621403 |
US $0.79 |
||
|
14
|
14
5211033 Bracket,lever retainer |
5211033 |
US $23.61 |
||
|
15
|
15
1040387 Latch,seat |
1040387 |
US $37.63 |
||
|
16
|
16
7041370 Spring, latch |
7041370 |
US $8.17 |
||
|
17
|
17
2681747-218
Cover,seat,burn.brn.
Burnished Brown; |
2681747-218 |
— | ||
|
17
|
17
2682201-218
Seat asm,burn.brown
|
2682201-218 |
— | ||
| replacement | |||||
|
17
|
17
2682441-218
New Genuine Part
|
2682441-218 |
— | ||
|
17
|
17
5811104 Foil,seatbase,lg, |
5811104 |
US $20.28 |
||
|
17
|
17
5811105 Foil,seatbase,sm, |
5811105 |
US $12.20 |
||
|
18
|
18
5410414 Bumper, rubber (10) |
5410414 |
US $1.89 |
||
|
19
|
19
5431787 Cover, toolbox |
5431787 |
US $17.24 |
||
|
20
|
20
5410896 Cap,drain (10) |
5410896 |
US $3.75 |
||
|
21
|
21
5241403-067
Guard, clutch
|
5241403-067 |
— | ||
|
22
|
22
7661638 Rivet,interlock,b(50)50; |
7661638 |
US $0.79 |
||
|
23
|
23
5242016-067
Guard,rock,blk
|
5242016-067 |
— | ||
|
24
|
24
7512252
Screw
10; |
7512252 |
— | ||
|
25
|
25
1040540-067
Frame,main,xplr.400,blk
|
1040540-067 |
— | ||
|
26
|
26
5432056-070
Footwell, black, lh
|
5432056-070 |
— | ||
|
26
|
26
5432374-070
Footwell,rh,blk,nylon
|
5432374-070 |
— | ||
|
27
|
27
5411009 Plug, hole |
5411009 |
US $3.26 |
||
|
28
|
28
5222646
Tab-airbox mount
|
5222646 |
— | ||
|
29
|
29
7512279 Screw(10) *10; |
7512279 |
US $0.79 |
||
|
30
|
30
5811111 Foil |
5811111 |
US $28.58 |
||
|
31
|
31
5811106 Foil,front |
5811106 |
US $7.09 |
||
|
32
|
32
7555792 Washer10; |
7555792 |
US $2.45 |
||
|
33
|
33
7541929
Nut, lock
10; |
7541929 |
— | ||
| replacement | |||||
|
33
|
33
7541925
Nut, nylok 10-24 y
10; |
7541925 |
— | ||
|
34
|
34
7072791
Decal,filter element
No Longer Available; |
7072791 |
— | ||
|
35
|
35
5811087
Foil,(6x1)
6X1; |
5811087 |
— | ||
|
36
|
36
7512232 Bolt(10)10; |
7512232 |
US $26.30 |
||
|
37
|
37
7670057 Nut, speed(10) *10; |
7670057 |
US $2.63 |
||
|
38
|
38
5431796
Mudguard,lh,r.blk.
|
5431796 |
— | ||
| replacement | |||||
|
38
|
38
5431796-070
Guard-mud,rear,lh,blk **
|
5431796-070 |
— | ||
|
38
|
38
5431797
Mudguard,rh,r.blk.
|
5431797 |
— | ||
| replacement | |||||
|
38
|
38
5431797-070 Guard-mud,rear,rh,blk ** |
5431797-070 |
US $72.56 |
||
|
39
|
39
5432663-195
Cab,rear,gen iv,eb.grn.
|
5432663-195 |
— | ||
|
40
|
40
7511930 Screw(10)10; |
7511930 |
US $0.79 |
||
|
41
|
41
7661645 Rivet(50) *50; |
7661645 |
US $1.89 |
||
