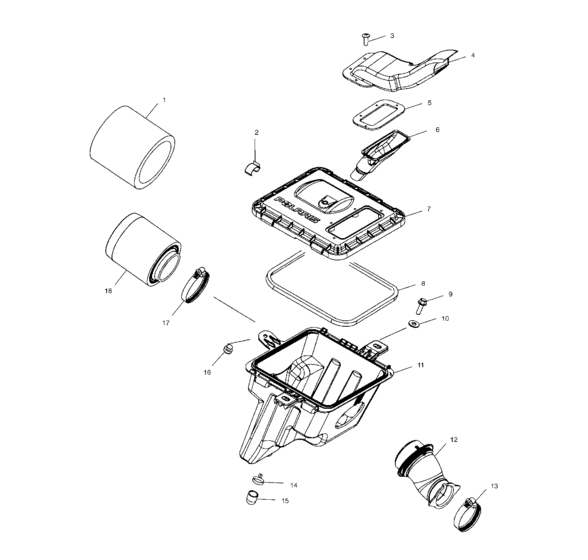

Air box (A02CG25CA) Diagram Polaris XPLORER 4X4
- Model code
- A02CG25CA
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5811660 Filter,preclean,sleeve,4" |
5811660 |
US $9.49 |
||
|
2
|
2
7670117 Clip |
7670117 |
US $5.43 |
||
|
3
|
3
7517541 Screw,sems |
7517541 |
US $3.75 |
||
|
4
|
4
5433052
Duct, airbox cover
|
5433052 |
— | ||
|
5
|
5
5411422 Gasket,intake |
5411422 |
US $8.17 |
||
|
6
|
6
5433740 Baffle,air inlet |
5433740 |
US $9.15 |
||
|
7
|
7
5433051
Cover,airbox,hybrid
|
5433051 |
— | ||
|
8
|
8
5811659
Seal,airbox cvr,hybrid
|
5811659 |
— | ||
|
9
|
9
7515179 Screw |
7515179 |
US $2.98 |
||
|
10
|
10
7558301 Washer, flat(10) * |
7558301 |
US $0.79 |
||
|
11
|
11
5433050 Box,air intake,hybrid |
5433050 |
US $107.36 |
||
|
12
|
12
1253389
Asm-carb boot
|
1253389 |
— | ||
|
13
|
13
7080140
Clamp
|
7080140 |
— | ||
|
14
|
14
7080865 Clamp,single wire,,88 id |
7080865 |
US $6.69 |
||
|
15
|
15
5411765
Cap,drain,,75 id
|
5411765 |
— | ||
|
16
|
16
5411766
Bumper,rubber
|
5411766 |
— | ||
|
17
|
17
7080707 Clamp,band,narrow (10) |
7080707 |
US $52.50 |
||
|
18
|
18
1253355 Asm,-filterIncl. 1; |
1253355 |
US $29.54 |
