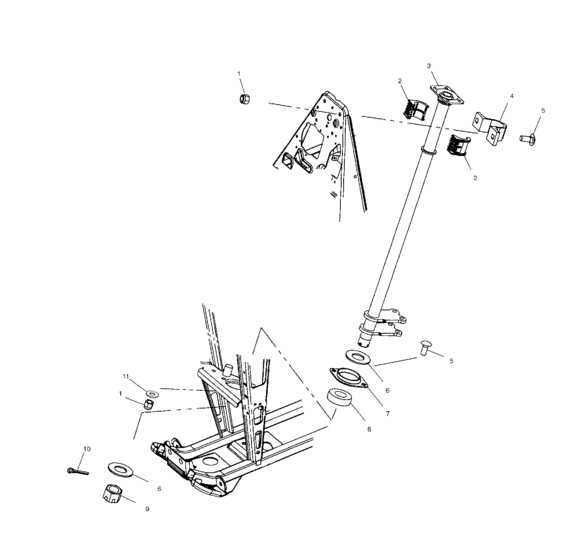

Steering post (A02CG25CA) Diagram Polaris XPLORER 4X4
- Model code
- A02CG25CA
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7542324 Nut,nylok(10) |
7542324 |
US $26.30 |
||
|
2
|
2
5433866 Bushing-upper,1 in |
5433866 |
US $9.19 |
||
|
3
|
3
1821111-067
Steering post,blk
|
1821111-067 |
— | ||
|
4
|
4
5132679
Brkt-steering post
If built before 1/01/02; |
5132679 |
— | ||
|
4
|
4
5222999-067
Bracket, steering, bushing, upper
If built after 1/01/02; |
5222999-067 |
— | ||
|
5
|
5
7512377 Bolt,carriageIf built before 1/01/02; |
7512377 |
US $5.25 |
||
|
5
|
5
7515321 BoltIf built after 1/01/02; |
7515321 |
US $1.89 |
||
|
6
|
6
7556162 Bushing-1x1 1/2x ,145 |
7556162 |
US $3.26 |
||
|
7
|
7
5222393 Flangette (2-bolt) |
5222393 |
US $15.86 |
||
|
8
|
8
3514352
Bearing-1xm52xm15,sph
|
3514352 |
— | ||
|
9
|
9
7547158 Nut-slotted hex,1-14-hx |
7547158 |
US $8.66 |
||
|
10
|
10
7661633 Pin, cotter |
7661633 |
US $6.56 |
||
|
11
|
11
7558402 Washer,flat(10) |
7558402 |
US $18.70 |
